Cylinder liner Kubota V2203 | V2403 | D1703 | D1803 – L3400 | L4200 | KX121 | KX161 | U45 | Bobcat 753 | Caterpillar 303.5 (semi-finish)

Description

Snel Parts premium quality. This cylinder liner comes from our own production and is suitable for Kubota V2203, V2403, D1703 and D1803 diesel engines, both IDI and DI (87 mm bore). The liner is supplied semi-finished: outer dimensions and height are to size, while the bore is honed to size by you after installation. This makes the liner suitable for both standard and oversized pistons.

✔️ Snel Parts in-house production, dimensionally stable and inspected
✔️ Semi-finish: suitable for both standard and oversized pistons
✔️ One liner for the complete 87 mm series: D1703, D1803, V2203, V2403 and F2803

What does semi-finish mean?

Semi-finish means that the outer side and height of the liner are to size, but the bore is deliberately kept slightly smaller (rough size). After pressing into the block, the bore is bored and honed to its final size. This ensures you always get a perfectly round, matching cylinder wall and allows you to choose between a standard or oversized piston yourself.

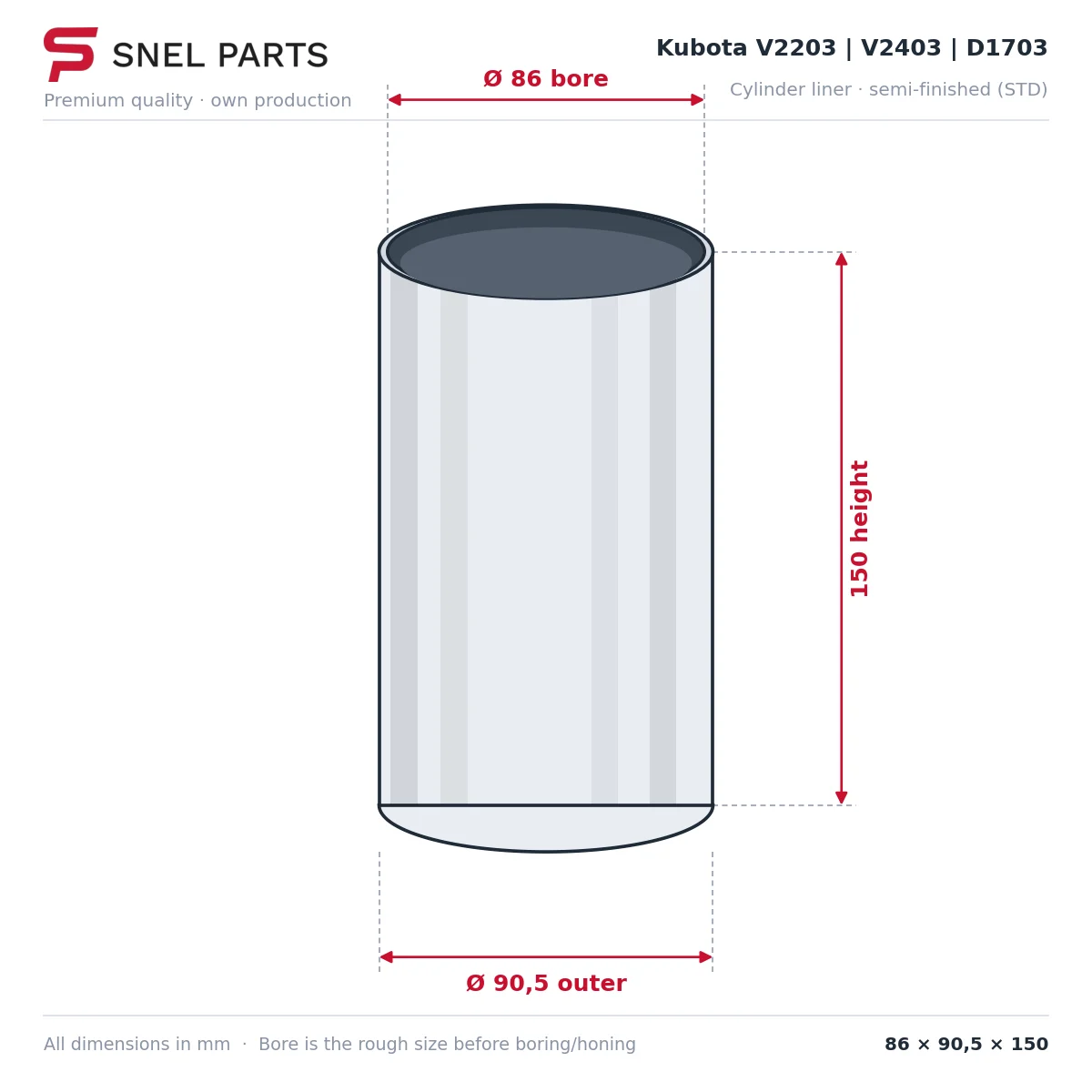

Technical specifications

• Bore (inner dimension, rough): Ø 86 mm
• Outer dimension: Ø 90.5 mm
• Height: 150 mm
• Type: semi-finish (STD), hone/bore after installation
• Packaging: per piece

Suitable for

Engine

• Kubota V2203, V2203-M, V2203B, V2203E, V2203T, V2203-M-DI, V2403, V2403-M, V2403-M-T, V2403-M-DI, V2403-CR, D1703, D1703-M, D1703-M-DI, D1803, D1803-M, D1803-M-DI, F2803

Kubota tractors

• L35, L39, L45, L48, L1361, L2501, L2502, L3240, L3300, L3301, L3400, L3408, L3410, L3430, L3540, L3560, L3600, L3608, L3800, L3830, L3901, L3940, L4060, L4200, L4240, L4300, L4310, L4330, L4400, L4508, L4610, L4630, L4701, L4708, L4740, L4760, L5030, L5040, L5060, L5240, L5450, L5460, L5740, L6060, MX4700, MX4800, MX5000, MX5100, MX5200, MX5800, M4000, M4700, M4900, M5040, M5140, M5400, M5640, M5660, M5700, M59, M62, M6040, M7040, M7060, M8540, M8560, M9540, M9960, B3350

Kubota mini excavators, wheel loaders and other

• KX037-4, KX040, KX040-4, KX041-2, KX042-4, KX057-4, KX080, KX080-3, KX091-3, KX101, KX101-3, KX121, KX121-2, KX121-3, KX155, KX161, KX161-2, KX161-3, KH-18, KH121-2, U35, U35-3, U35-4, U36-4, U40-3, U45, U45-3, U48-4, U50, U50-3, U55, R430, R510, R520, R530, R630, RX501, RX502, RX503, RX505, RT270-2, RT280-2, KC250, KL37Z, KL38, KL40Z, KL41, KL44Z, KL380, KL385, KL410, KL415, GL40, GL53, GL400, GL417, GL418, GL467, GL600, SSV65, SQ1150B, SQ1200, SQ3200B, SQ3250, RG30C, K038H, K040H, K045H

Bobcat

• 325, 328, 331, 331E, 334, 335, 337, 341, 430, 435, 753, 763, 773, 5600, 5610, 7753, A300, B300, BL370, S130, S150, S160, S175, S185, S205, S220, S450, S510, S530, T110, T140, T180, T190, E32, E34, E35, E42, E45, E50, E55, AL275

Caterpillar

• 302.5, 303.5, 303.5C, 303.5D, 303.5E, 303.5E2, 303.5ECR, 304E2, 304.5E2, 305E2, 305.5E, 305.5E2, 306.5, 306E2, 307.5, 307E2, DP15, DP18, DP20, DP25, DP30, DP35

Giant

• G2700 HD, G2700 X-tra HD, V5001, V5001T, V5002, V5003, V5003T, V6001T, V6004T

Schäffer

• 2033S, 2034, 2434, 3033S, 3036, 3050, 3050S, 3150, 336, 336S, 3350, 3360, 3450, 3460, 3550, 3550T, 3560, 3560T, 4048, 4048S, 4050Z, 4350, 4350Z, 4360, 4360Z, 442S, 448S, 450T, 4560T, 5050Z, 5058Z, 548, 550T

Hinomoto

• NX19, NX21, NX23, NX25, NX26, NX27, NX29, NX32, NX33, NX40, NX200, NX201, NX220, NX221, NX240, NX241, NX260, NX261, NX268, NX277, NX280, NX281, NX300, NX301, NX320, NX321, NX337, NX338, NX367, NX400, NX418, NX467, NTX38, NTX41, NTX380, NTX410

Hitachi / Hyundai / Komatsu

• Hitachi EX40, EX40-2, EX45-2, ZX40, ZX50, ZW30, ZW40, ZW50, Hyundai HSL600T, HSL650-7, HSL800T, R75-7, R80, R95W, 15D-7E, 18D-7E, 20D-9S, Komatsu EG20BS-7, EG25BS-5, PC70FR-1, SK09J-2, WB70A-1

Other

• Case 560, 1838, 6010, Takeuchi TB55UR, TL8, TL10, TL250, JCB 2T, 3T, 3.5T, Jungheinrich DFG/TFG 316 to 435, Massey Ferguson 1205 to 1260, 1547, 1552, Manitou 160ATJ, 200ATJ, MH20-4, MH25-4, TMT25S, TMT55, MSI20-35, Aebi KT50, TP47, TT60, TT80, TT205, Airman AX40-2, AX45-2, AX50-3, Ausa C200H, C250H, C300H, C351H, D250A, D300A, D350A, D400A, Avant R28, 528, 630, 750, Beta Marine Beta 25 to 105, Bomag BW100 to BW138, Clark CDP20-35, Denyo DCA15-25, Doosan D15G, D18G, G30, G40, Solar 55W-V, Dynapac CC1100C, CC1200C, CC1300, CC1400VI, Eurocomach ES28ZT to ES500ZT, Eurotrac W11, W13, Furukawa FX038, FX045, FX40, UX45, Hamm HD10 to HD35, Haulotte HA20RTJ, HA61RTJ, Heli CPCD15-35, IHI 45V4, 55V4, 60V4, IC35, Ingersoll Rand DD24 to DD34HF, Jacobsen AR722, HR5111, R311, ST5111, Ransomes MP493, MP653, Sakai SW300, SW320, SW330, SW354, TW354, TW504, TCM 607, 608, 707EN, 709EN, 743, 753, 763, 773, Thomas T95, T153S, T173HL, T183HD, T1700, TYM T430, T431, T450, T451, Wacker Neuson 3003, 3503, 3703, DHK6002H, DHK7002H, RD40-130C, RD45-140, Volvo DD24, DD28HF, DD30, DD34HF, Vimek 404, Ammann ACS30, ACS50D, Atlas Copco XATS138, Canycom S300, CG431, Fogo FM30, FM40, Gehl SL4625, Iseki TG5390, Kato HD50V5, HD60V5, Morooka MST300, Reform Metrac 4004H, Scat Trak 1300, Terex TC51, TC65, Toro Groundsmaster 328D

OEM for reference

• 14911-02310, 1491102310
• 1C030-32564, 1C03032564
