Cylinder Head Kubota Z402 | Aixam | Ligier | complete + head gasket + glow plug

Description

New premium cylinder head suitable for the Kubota Z402 two-cylinder diesel engine. Made from high-quality material, with pre-installed valve seats, valves, and springs — ready for immediate installation.

To simplify the repair, we have put together a complete package that ensures the repair can be done as quickly as possible. This includes:

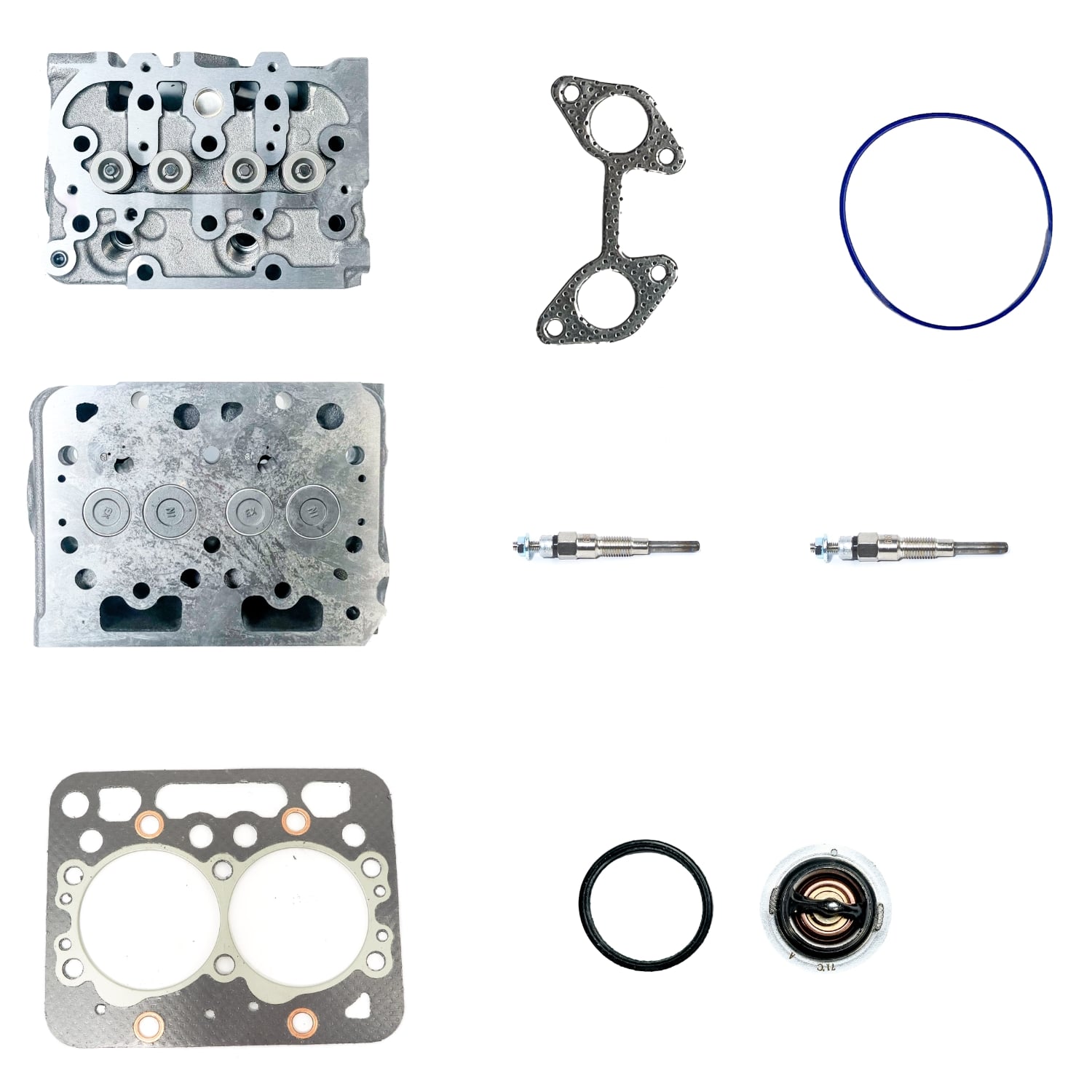

Set consisting of:

• Complete cylinder head with valves, springs, valve seats, and seals – assembled and ready for installation

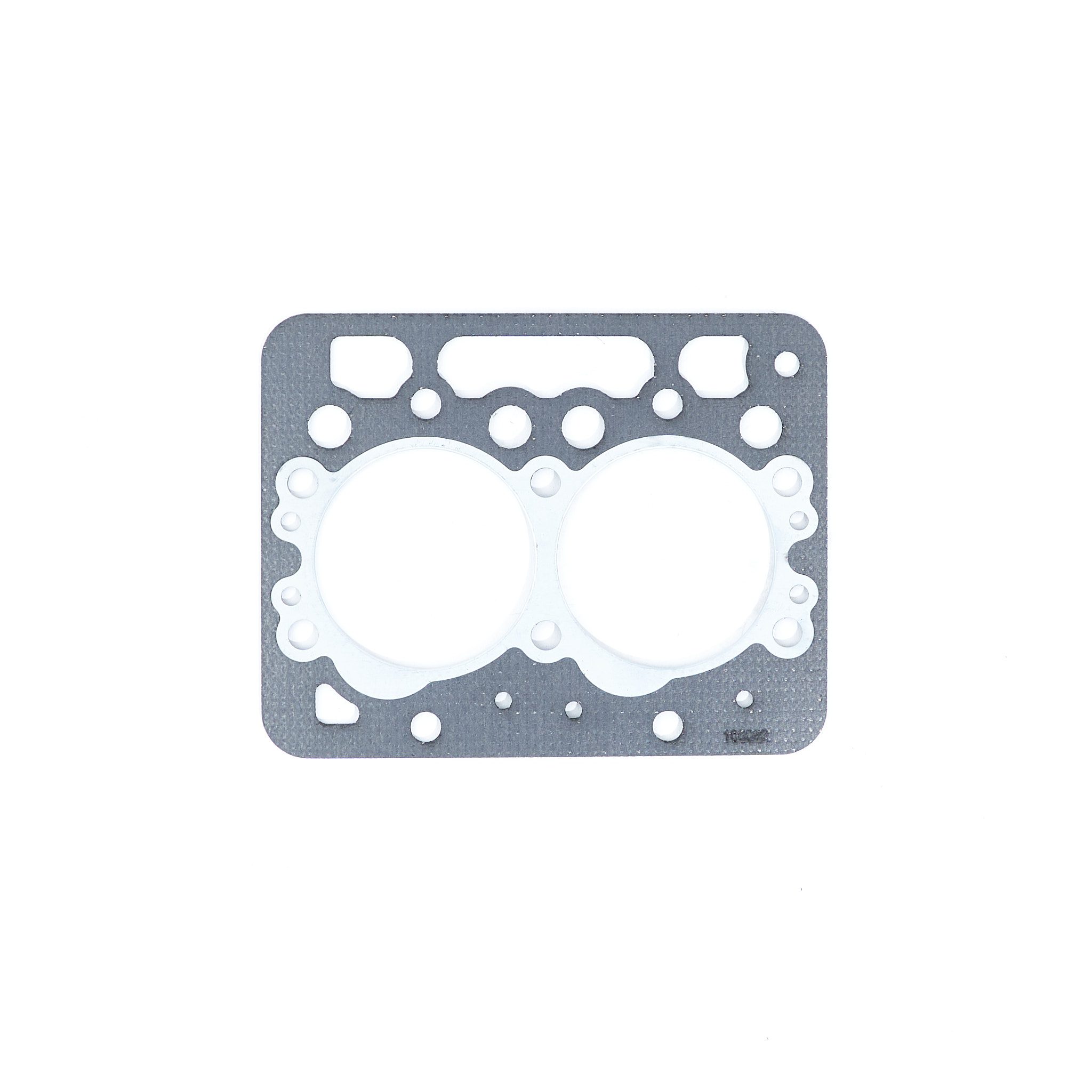

• Head gasket – premium quality from a European supplier

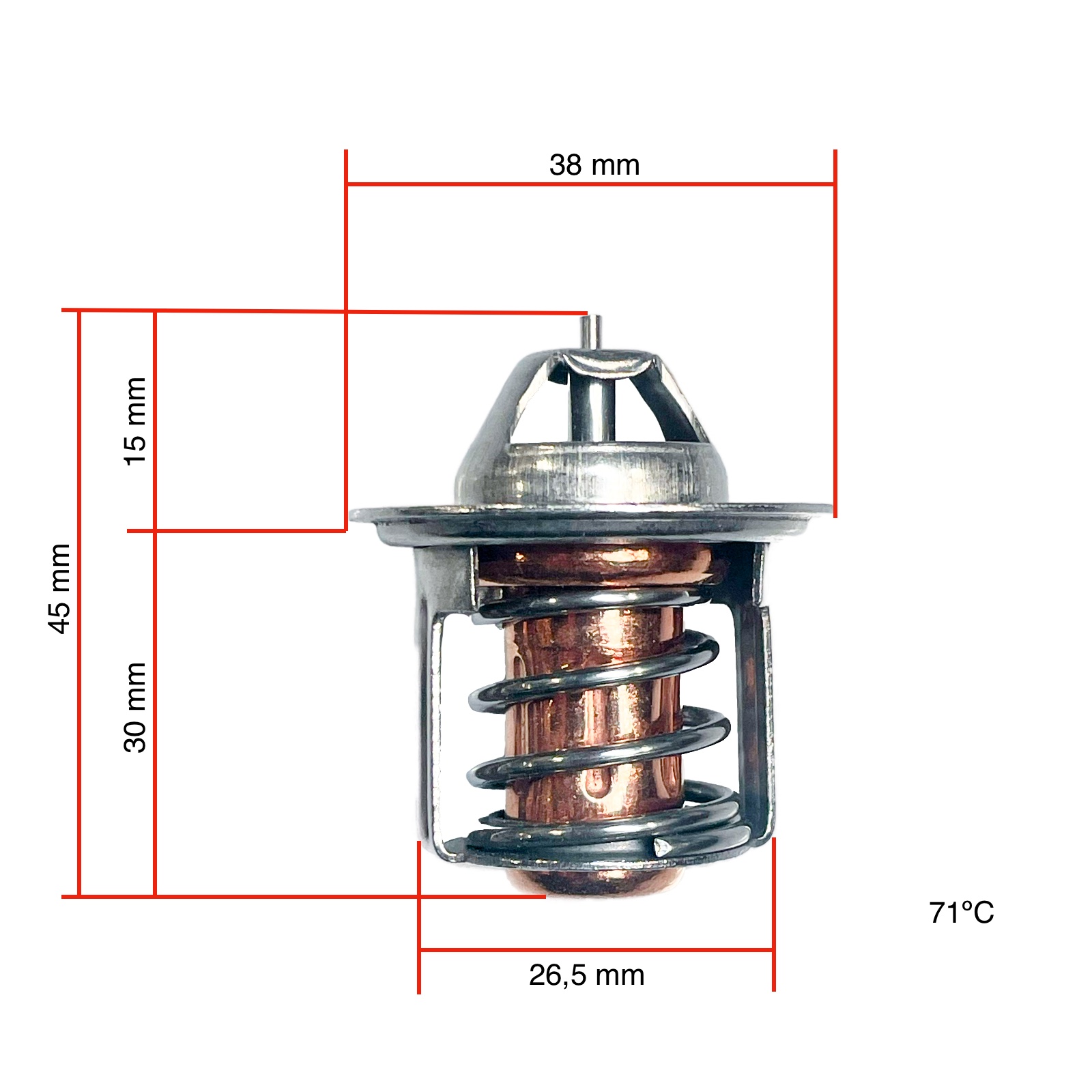

• Thermostat (38mm) – including gasket

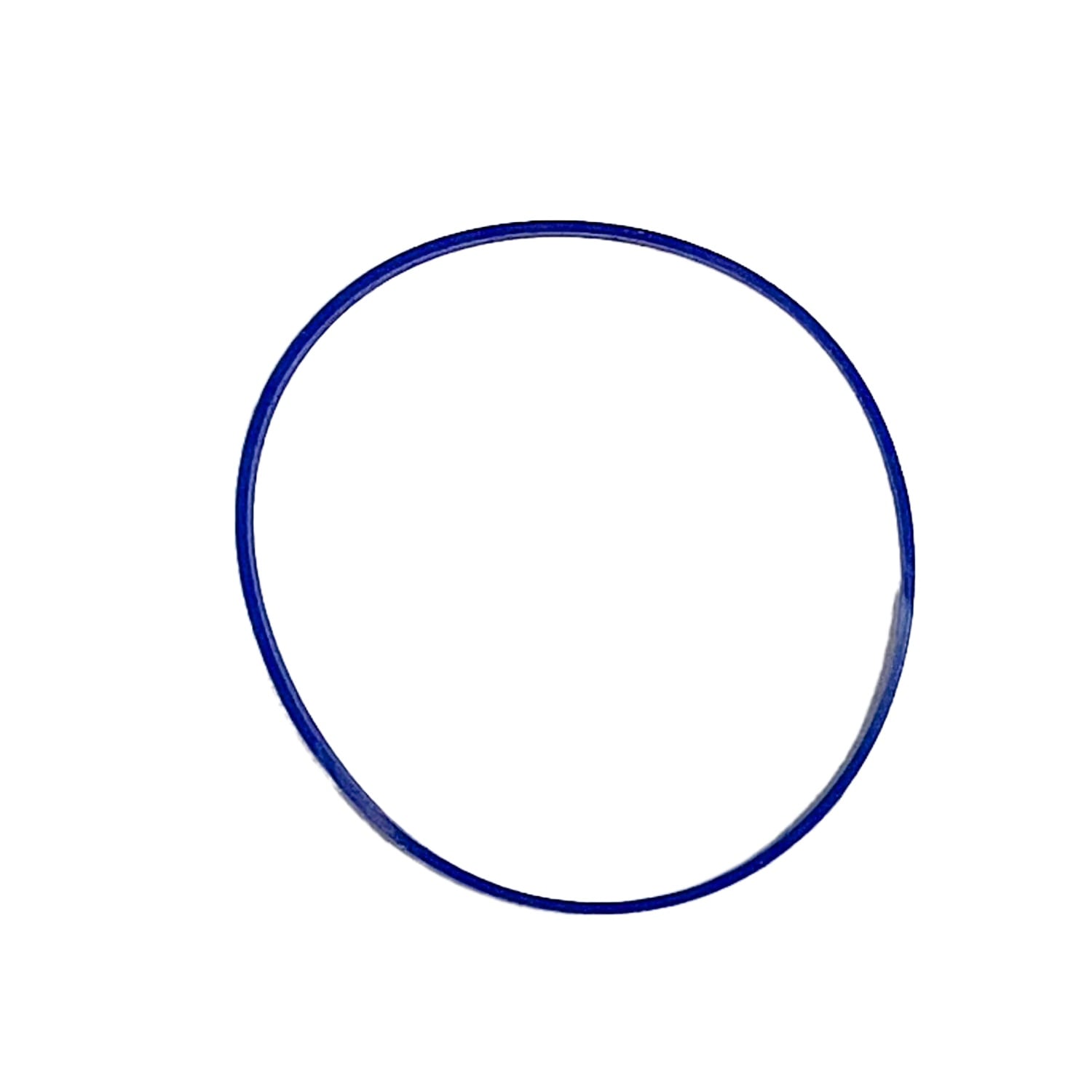

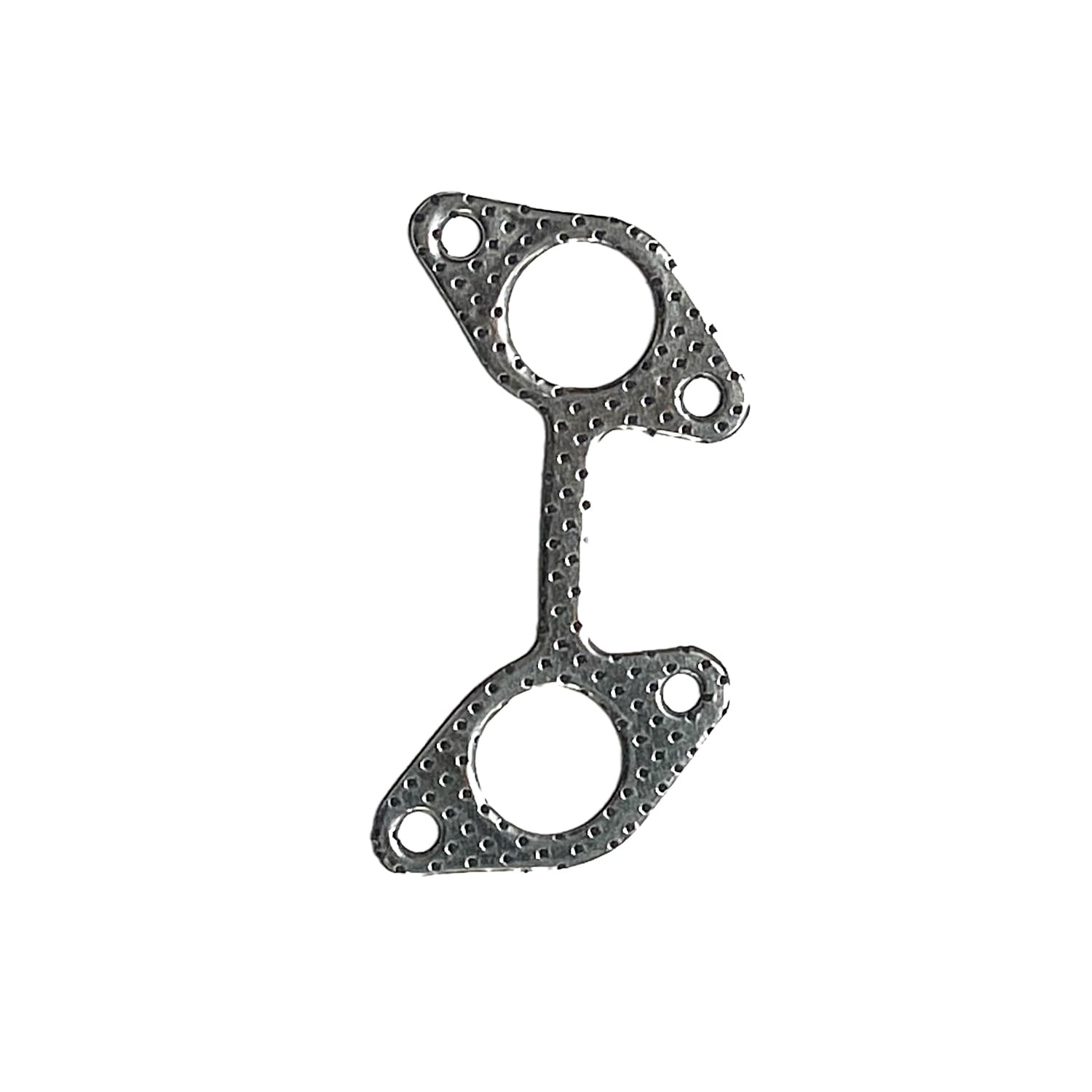

• Intake + exhaust manifold gasket

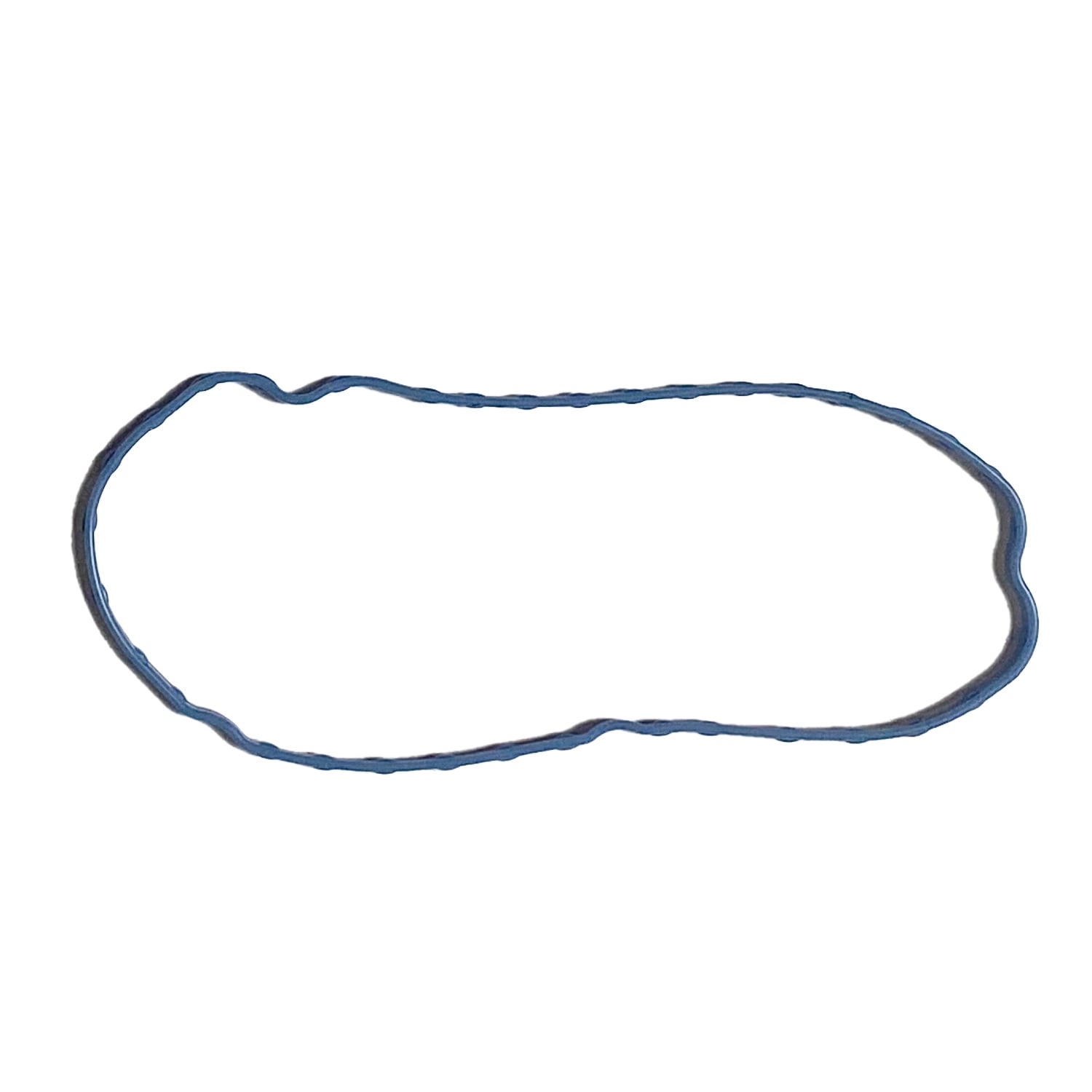

• Valve cover gasket — prevents oil leaks from the valve cover (SKU-65205)

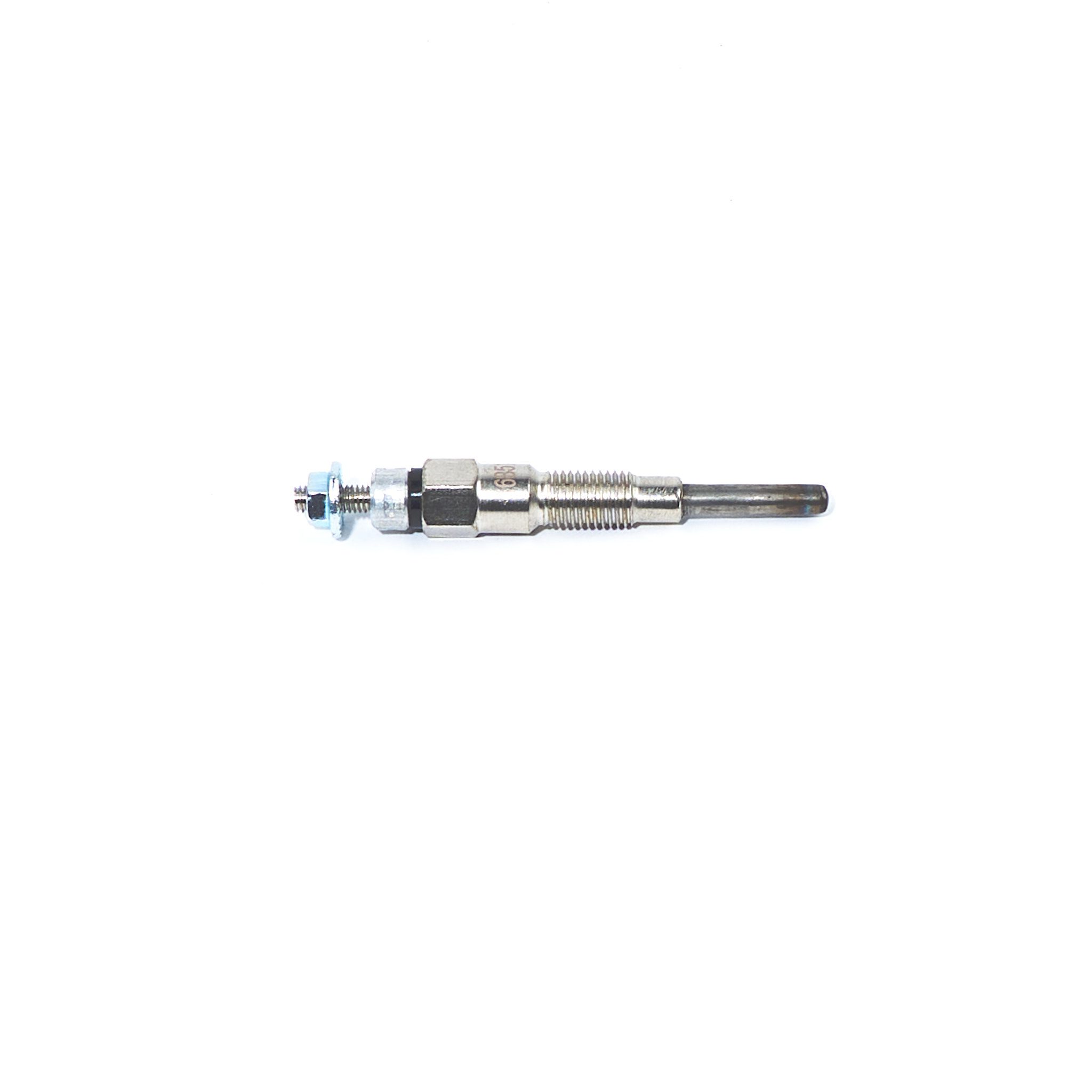

• 2X Glow plugs Z402 (M8) – premium quality

✔️ Fully assembled — valves, springs, and seals installed, no extra adjustment needed
✔️ Complete repair kit — including head gasket, thermostat, manifold gaskets, and glow plugs
✔️ Exact OEM fit — 1-to-1 replacement of the original

A ready-to-use solution that saves workshop time and minimizes the risk of assembly errors.

Suitable for:

Kubota engine

• Z402, Z402-EB, Z402-EB-ONAN-1, Z402B, Z402-B, Z402-B-AIXAM-1, Z402-E2B-WDDE-1

Aixam

• 400, 400.4, 400 Evolution, 500.4, 500.4 Minivan, 500.4 Pick-Up
• 721, 741, Scouty, Crossline, City, Roadline, Crossover, GTO, Coupe
• MEGA1, MEGA2, Pro D-Truck

Ligier / Microcar

• MEGA1, MEGA2, Pro D-Truck

OEM ref:

Cylinder head:

• 15821-03040, 1582103040
• 15821-03045, 1582103045

Head gasket (64mm bore):

• 15821-03310, 1582103310

Thermostat (38mm):

• 1E399-73010, 1E39973010

Glow plug (M8):

• 16851-65510, 16851-65512
• 16854-65510, 16854-65512
• 1G790-65510, 1G790-65512
• NGK: YE-01

Intake manifold gasket:

• 15841-11820, 15841-1182-0

Exhaust manifold gasket:

• 15841-12350, 15841-12361
