Cylinder Head Kubota V2203E | V2203B | V2403E | V2403M | model 1 | complete + head gasket + glow plug
- Ordered before 4:00 PM, delivered on Thursday
- Up to 2 years warranty
- Exchange possible within 14 days
Get notified when this product is back in stock
Leave your email address. We will send you a one-time notification as soon as the product can be ordered again.
Shop4Trac assurances
- We deliver to Netherlands in as little as 1 business day
- Customer review 8,9/10
-
Pay securely with among others:
Shipping costs
Based on 14 kgDescription

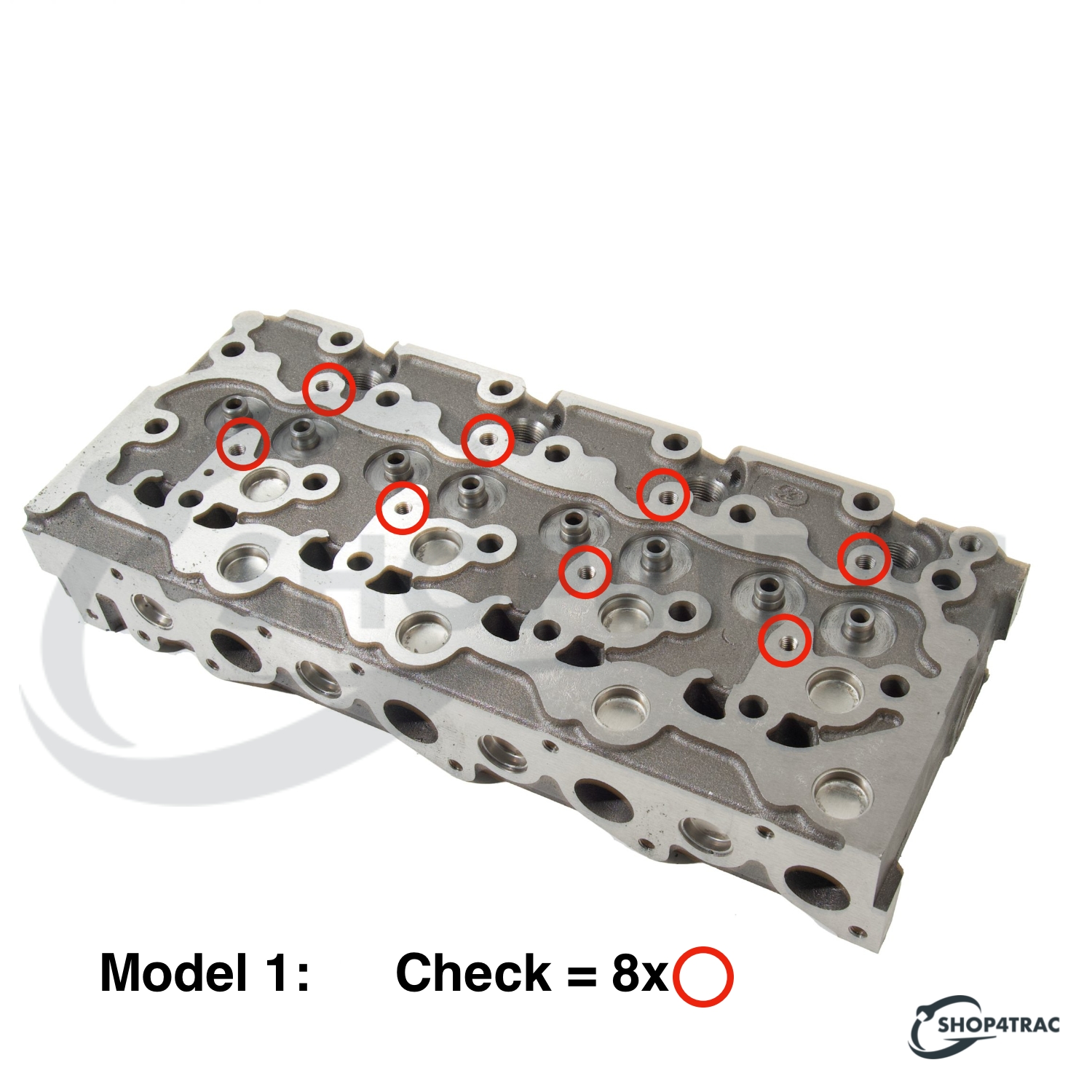

New premium cylinder head suitable for the Kubota V2203 / V2403 four-cylinder diesel engine (indirect injection, “model 1” — 8 valve cover bolts). Manufactured from high-quality material, with pre-installed valve seats, valves, and springs — ready for immediate installation.
To simplify the repair, we have put together a complete package that ensures the repair can be done as quickly as possible. This includes:

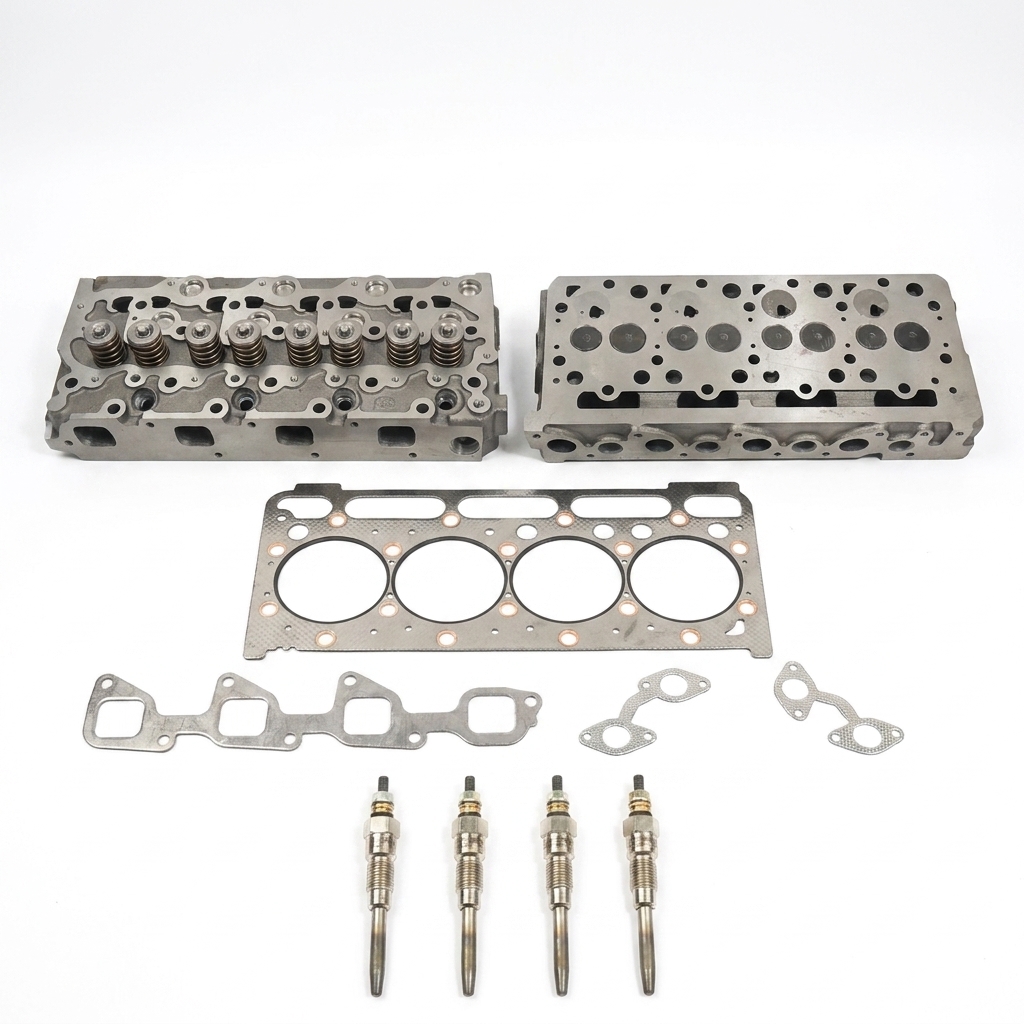

Set consisting of:
- Complete cylinder head with valves, springs, valve seats, and seals – assembled and ready for installation
- Head gasket — choice of graphite or metal (select above)
- Intake + exhaust manifold gasket
- Valve cover gasket — prevents oil leaks along the valve cover (SKU-65244)
- Thermostat (44mm)
- 4X Glow plugs — premium quality
✔️ Fully assembled — valves, springs, and seals installed, no additional adjustment needed
✔️ Complete repair kit — includes head gasket, thermostat, manifold gaskets, and 4x glow plug
✔️ Exact OEM fit — 1-to-1 replacement of original
A ready-to-use solution that saves workshop time and minimizes the risk of assembly errors.
Suitable for:
Kubota engine
- V2203, V2203-M, V2203T, V2203E, V2203B
- V2403, V2403-M, V2403T, V2403E, V2403B, V2403M
Kubota
- L4240, L4310, L4400, L4630, L4060, L4701, L4740, L4760, L5030, L5040, L5060, L5240
- MX4800, MX5200, MX5800
- KX121-3a, KX121-3S, KX161-3a, KX161-3S
- U45-3a, U45-3S, U50-3a, KC250H-4 (2013 and later)
- R510, R510B, R520, R520B, R520S, R520 Alpha, Alpha B
Bobcat
- 753, 753C, 753F, 753G, 753H, 753L, 763, 763C, 763F, 763G, 773, 773C, 773F, 773G, 7753
Case
- 1838
JCB
- 3T-FT, 3T-ST
Schäffer
- 3033S, 3050, 3150, 4048, 4050Z, 442S, 450T, 5050Z
OEM ref:
Cylinder head:
- 19077-03050, 1907703050
- Bobcat: 6655153, B1907703050A

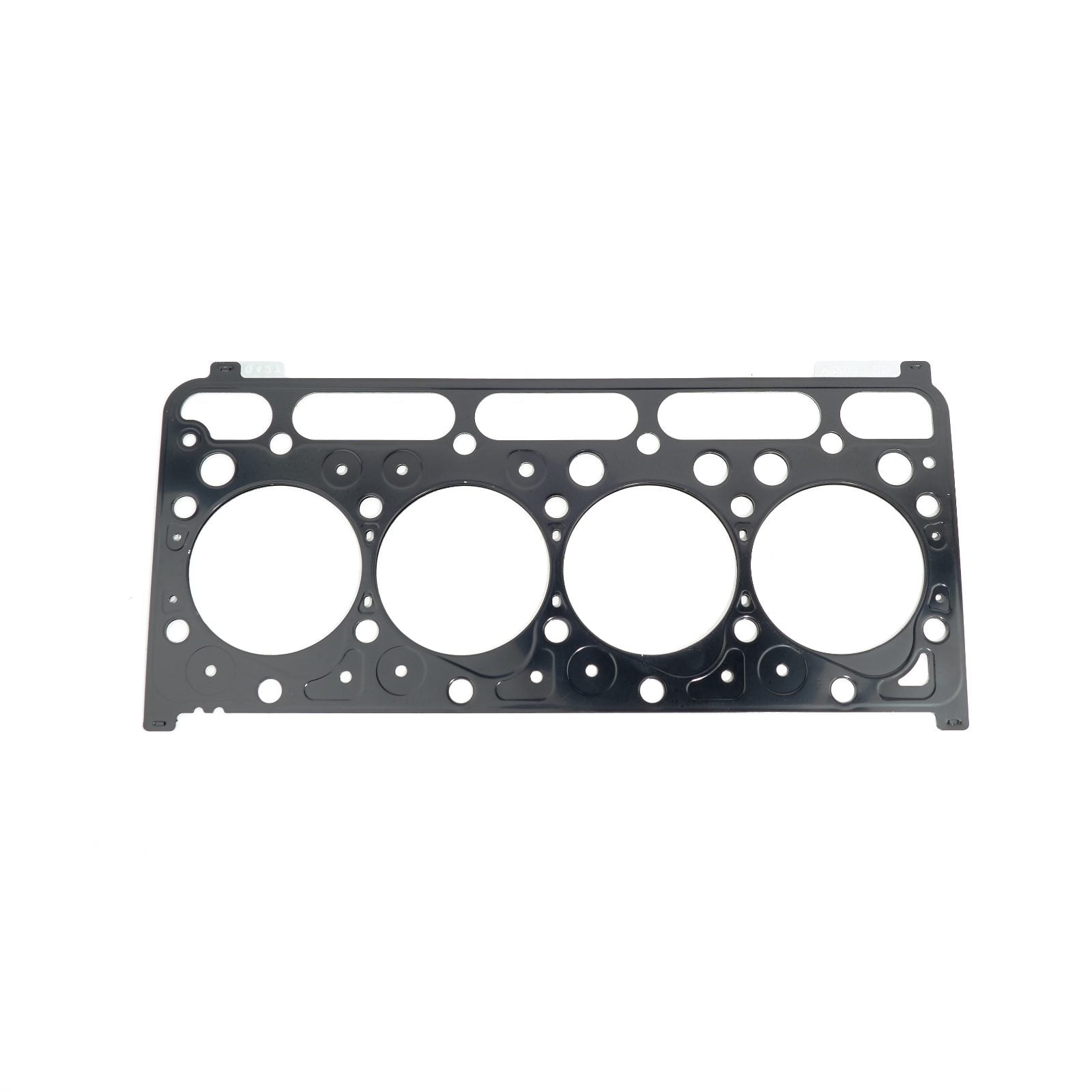

Head gasket (87mm bore):
- 19077-03310, 1907703310
- 1G790-03312, 1G790-0331-2, 1G79003312

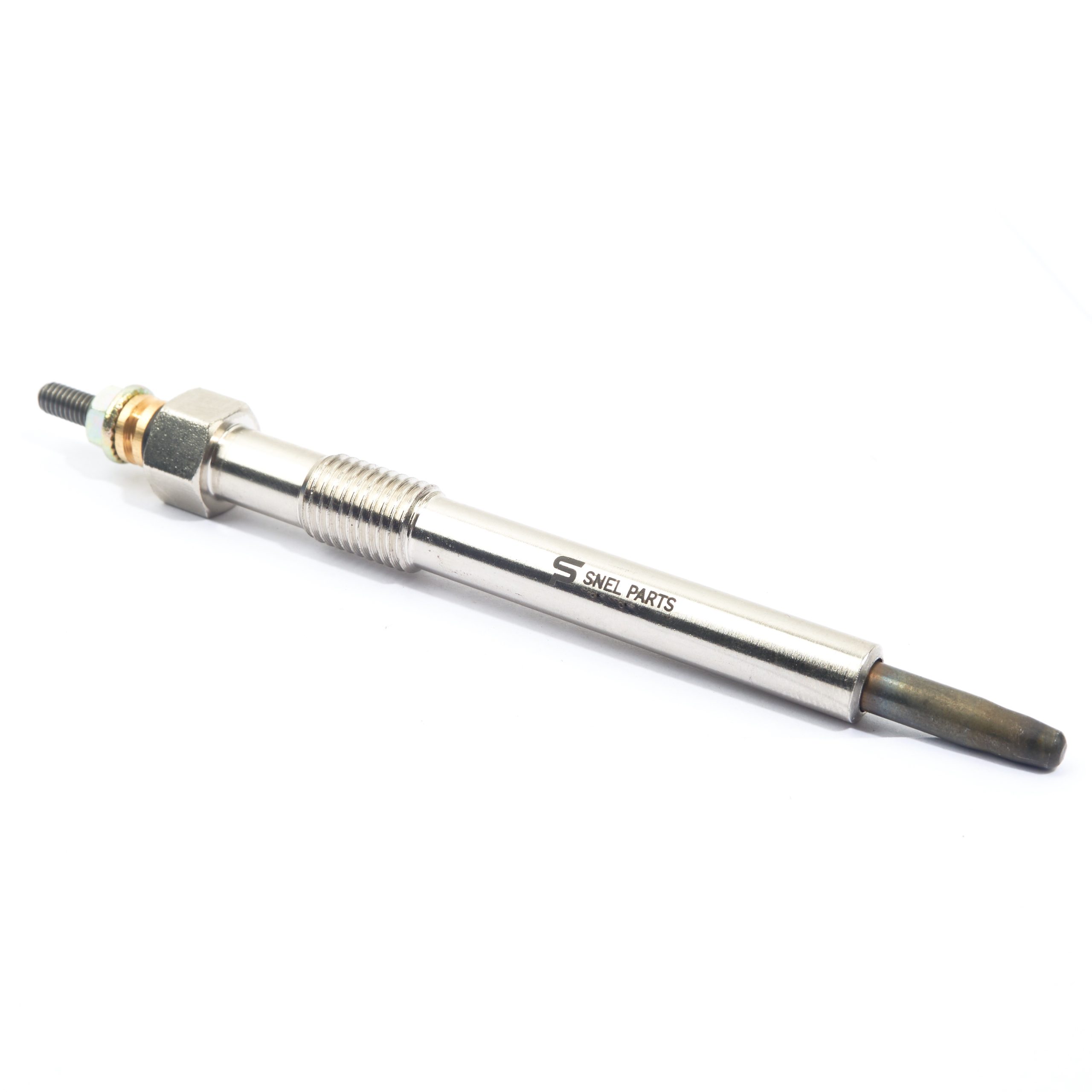

Glow plug (4x required):
- 1G852-65510, 1G852-65512, 1G911-65510, 17331-65510, 17331-6551-0

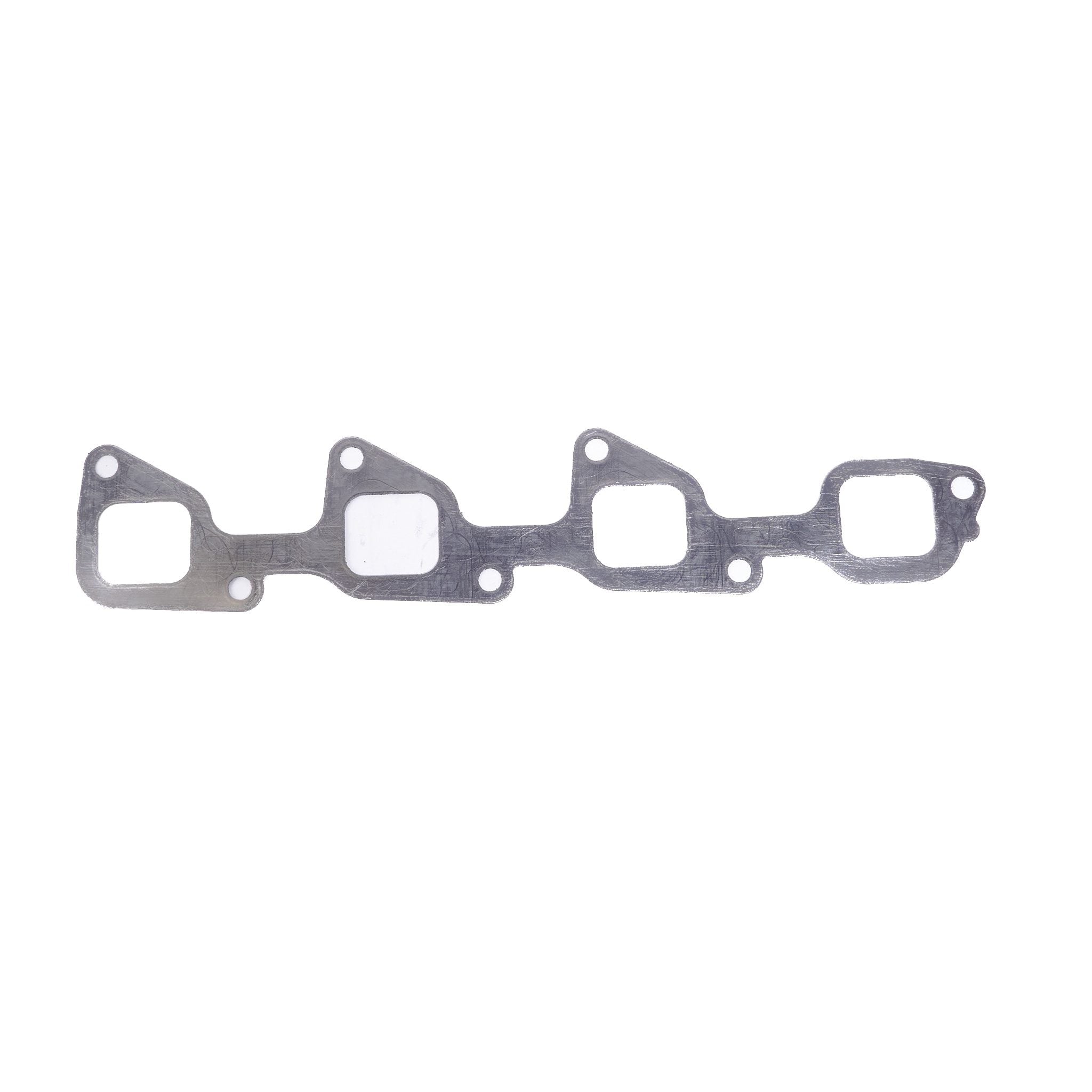

Intake manifold gasket:
- 1A091-11822, 1A09111822

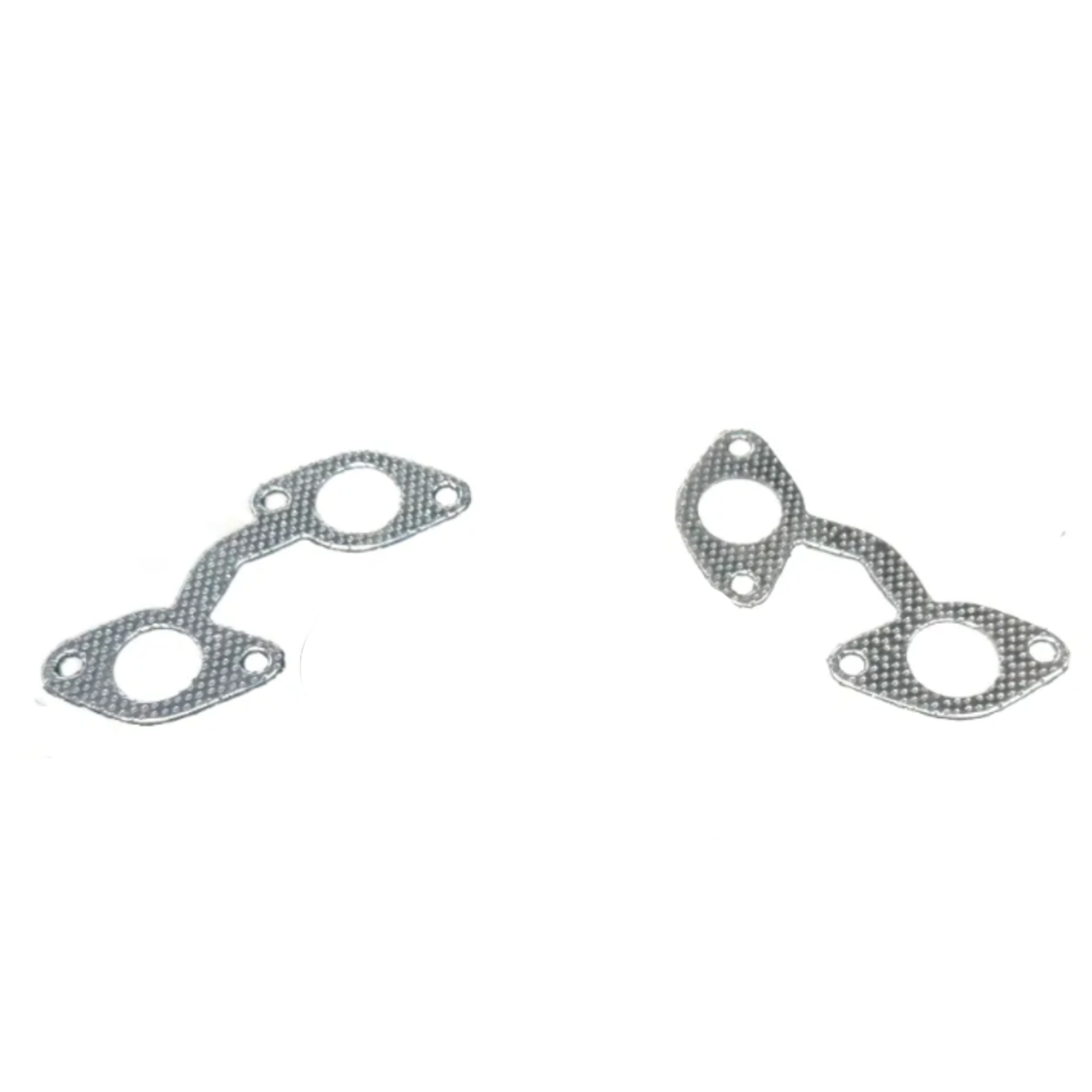

Exhaust manifold gasket:
- 1A091-12350, 1A091-1235-0
