Cylinder head bolt Perkins 400D series – 402D | 403D | 404D | Caterpillar C2.2 | Shibaura N844

Description

New cylinder head bolt suitable for the Perkins 400 series diesel engines with the large block size. These engines are identical to the Shibaura N843 and N844 and are also sold as Caterpillar C1.5, C1.7 and C2.2 / 3024C. Price per piece.

⚠️ Please note: this is not the head bolt for the small 400 series blocks. The 402D-05, 403D-07, 403D-11 and 404D-15 (and their C, F and J versions) use a different, lighter head bolt with a tightening torque of 37 to 51 Nm. This bolt belongs to the engines that are torqued to 101 Nm. Always check the engine type on the nameplate.

✔️ Direct OEM replacement
✔️ Two variants:

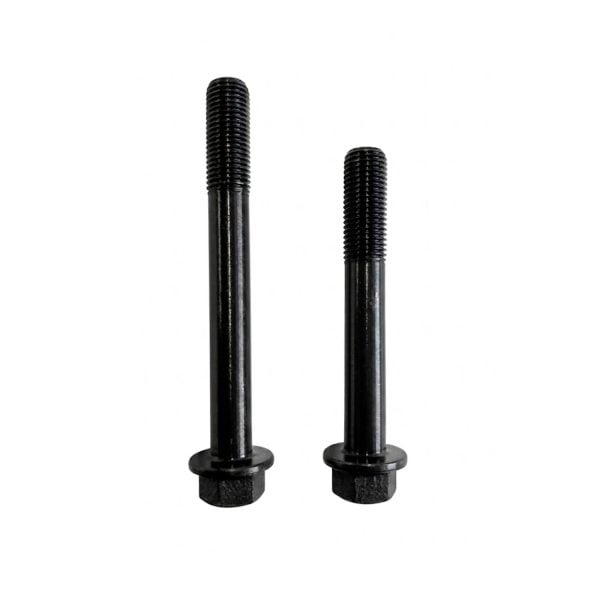

Variant 1 (long, 91 mm under the head, OEM 111136480) — 11 pieces required per 4-cylinder engine

Variant 2 (short, 72 mm under the head, OEM 111136490) — 3 pieces required per 4-cylinder engine

Technical specifications:

• Type: cylinder head bolt
• Length measured under the head: variant 1 is 91 mm, variant 2 is 72 mm
• Tightening torque: 101 Nm
• Sold per: piece
• Required quantity per 4-cylinder engine (404D-22): 14 pieces (11 long + 3 short)
• Material: hardened steel, OEM quality

Suitable for:

Perkins engines (400D series)

• 403D-15, 403D-15T, 403D-17
• 404D-22, 404D-22T, 404D-22TA

Perkins engines (400C series, same block)

• 403C-15, 403C-17
• 404C-22, 404C-22T

Perkins engines (400F / 400J series)

• 403F-15, 403F-15T, 403F-E17T
• 404F-22, 404F-22T, 404F-E22T, 404F-E22TA
• 403J-17, 403J-17T

Perkins engines (100 series)

• 104.19, 104.22

Shibaura

• N843, N843L, N843H
• N844, N844L, N844T, N844LT

Caterpillar

• C1.5, C1.7, C2.2
• 3013C, 3024C, 3024CT

Machines with one of the above engines

• JCB 8040ZTS, 8045ZTS, 8050ZTS, 8055ZTS, Robot 160 and 170
• Case 410, 420, 430 skid steer loader, CX31B, CX36B
• ASV RC30, PT30, SR70
• Terex TC29, TC35

OEM for reference:

• 111136480, 111136360 — long (variant 1)
• 111136490, 111136500 — short (variant 2)
• T427106, 111136511 — complete bolt set 404D
