Fuel injector complete Kubota D1403 | D1463 | D1503 | V2203 | 77MM

Description

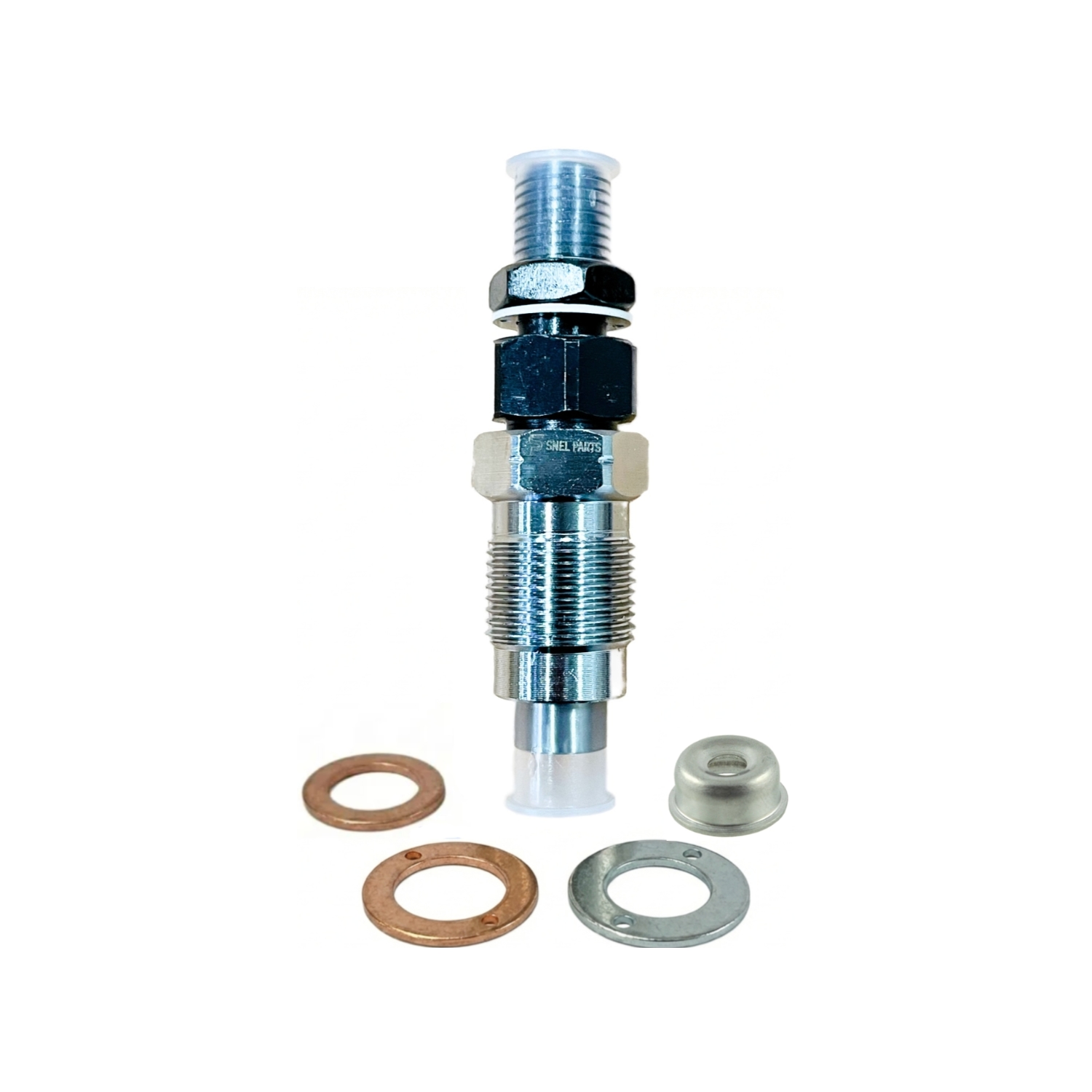

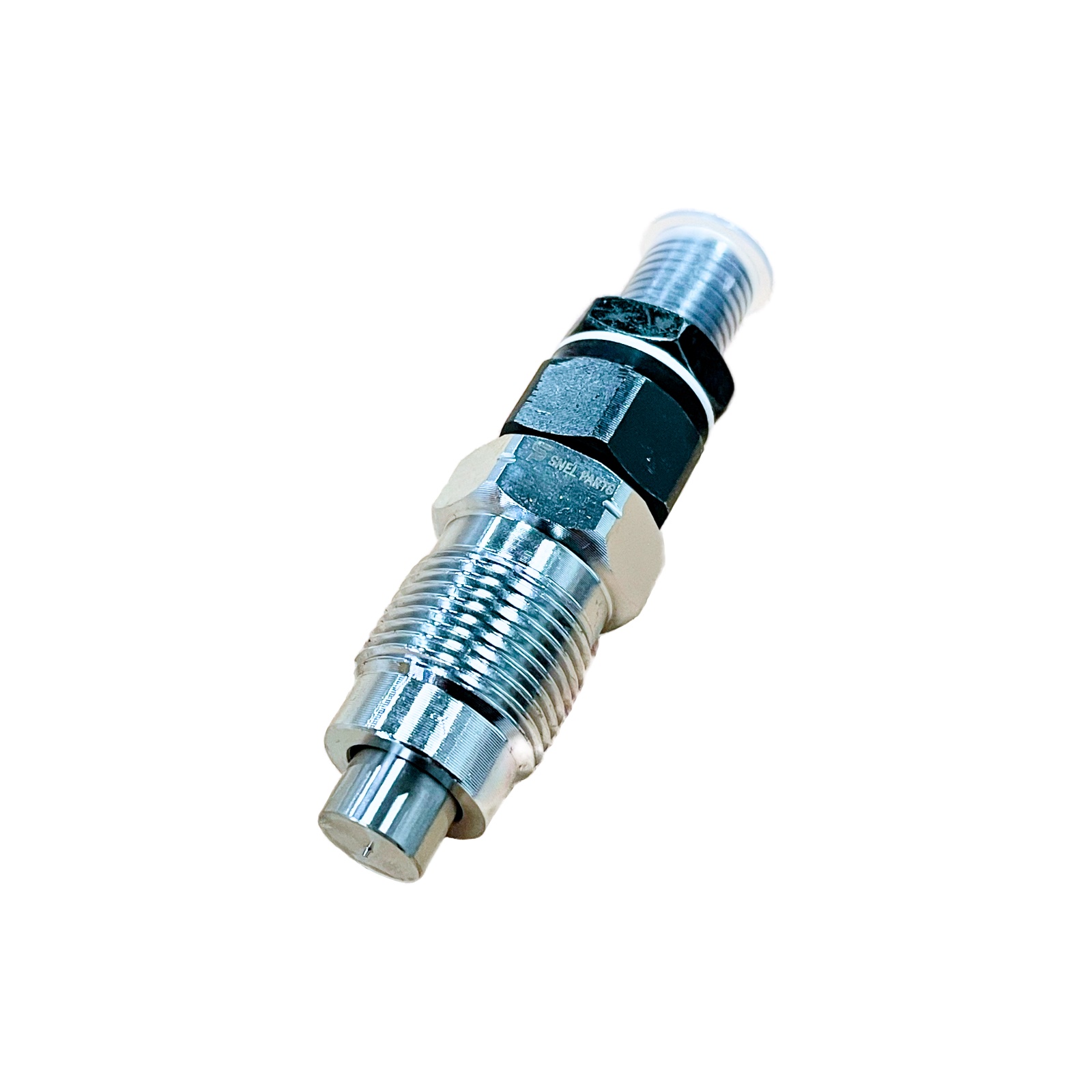

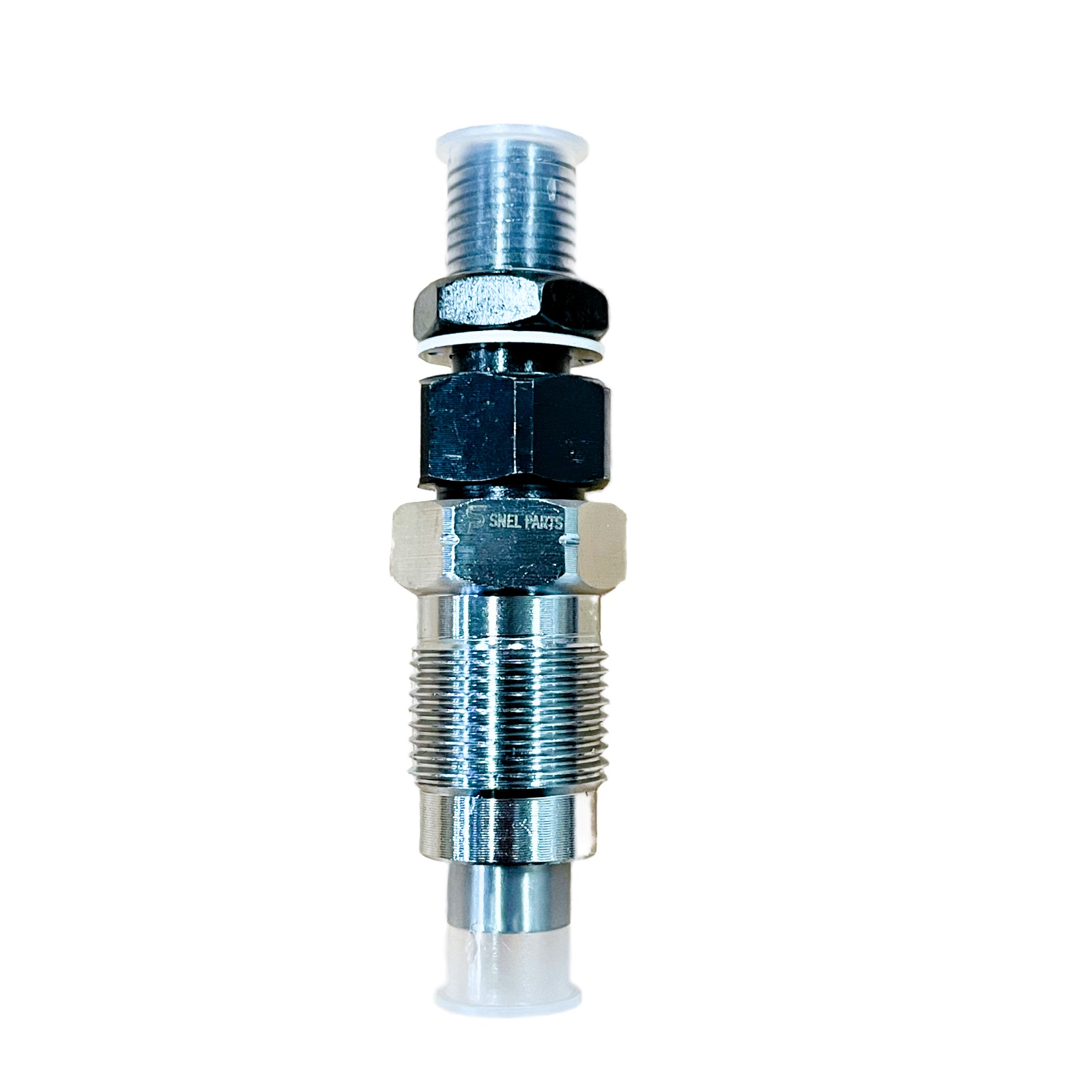

Exclusive from our own production line: a complete fuel injector assembly, specifically compiled for the D1403, D1503 and the early series V2203 engines. This 'Snelparts' injector is ready for immediate installation.

Please note: Technically specific product! This is the so-called "77mm" variant (Compact model). Although it internally often uses the same nozzle as later types, the holder differs in size. Therefore, always check your serial number.

advice from experience: Do you have a V2203 engine? Then check your serial number. This injector only fits numbers 1 to 60896. For later numbers (above 60896) you need the larger 16454 injector.

technical specifications

• Type: Complete Injector Holder + Nozzle

• Injection: Indirect injection (IDI)

• Internal Nozzle: DN0PD80

• Length: 77mm (Compact model)

• Engine code: D1403, D1463, D1503, V2203 (Early model)

• Opening pressure: approx. 140 Bar

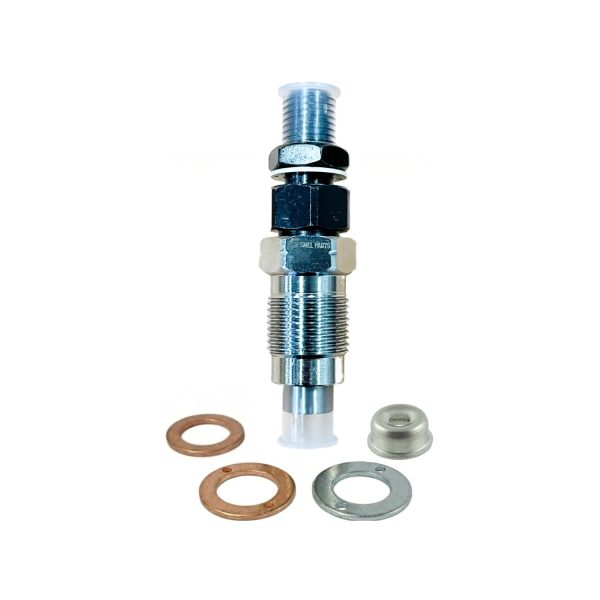

• A new heat shield (fire ring) against extreme heat and soot buildup.
• A copper injector seal for 100% compression retention.
• A leak-off line seal to prevent fuel leakage.

Mainly for the first series of engines!

Kubota Engine

• V2203-BB, V2203BB-EC, V2203-BG-SAE – Serial number / engine number: 1 ~ 60896
• D1403, D1503, D1503-LL, D1503-LL-N, D1503-L-NQ, D1503-L-N
• D1463-L-Q, D1463-L

Kubota

• L2800 HST, L2800
• L2500, L2500DT, L2500F, L2600, L2600DT, L2600F, L2800-DHV, L2800F, L2800DHW, L2800DT
• KL21, KL210, KT20, KT22, KT210
• GL19, GL21, GL200, GL201
• GL26, GL27, GL29, GL32, GL260, GL261, GL268, GL277, GL280, GL281, GL300, GL301, GL320, GL321
• GL23, GL25
• GT-23, KT24
• KT230, KT250
• STA-30
• GL220, GL221, GL240, GL241
• T240
• KL23, KL25, KL230, KL250
• L2900 GST, L2900, L3010GST, L3010 HST, L3010, L3130, L3200

OEM for reference

• 16082-53900, 16082-53901, 16082-53902, 16082-53903
• 19077-53000, 19077-53900, 19077-5390-0
• 16545-53900
• 15841-92023-0(bolt),
