Starter motor Shibaura N843 | N844 | New Holland TC35 – TC45 | LS160 | LS170 | Case DX35 – DX60 | 12V 2.0 kW 11 teeth

Description

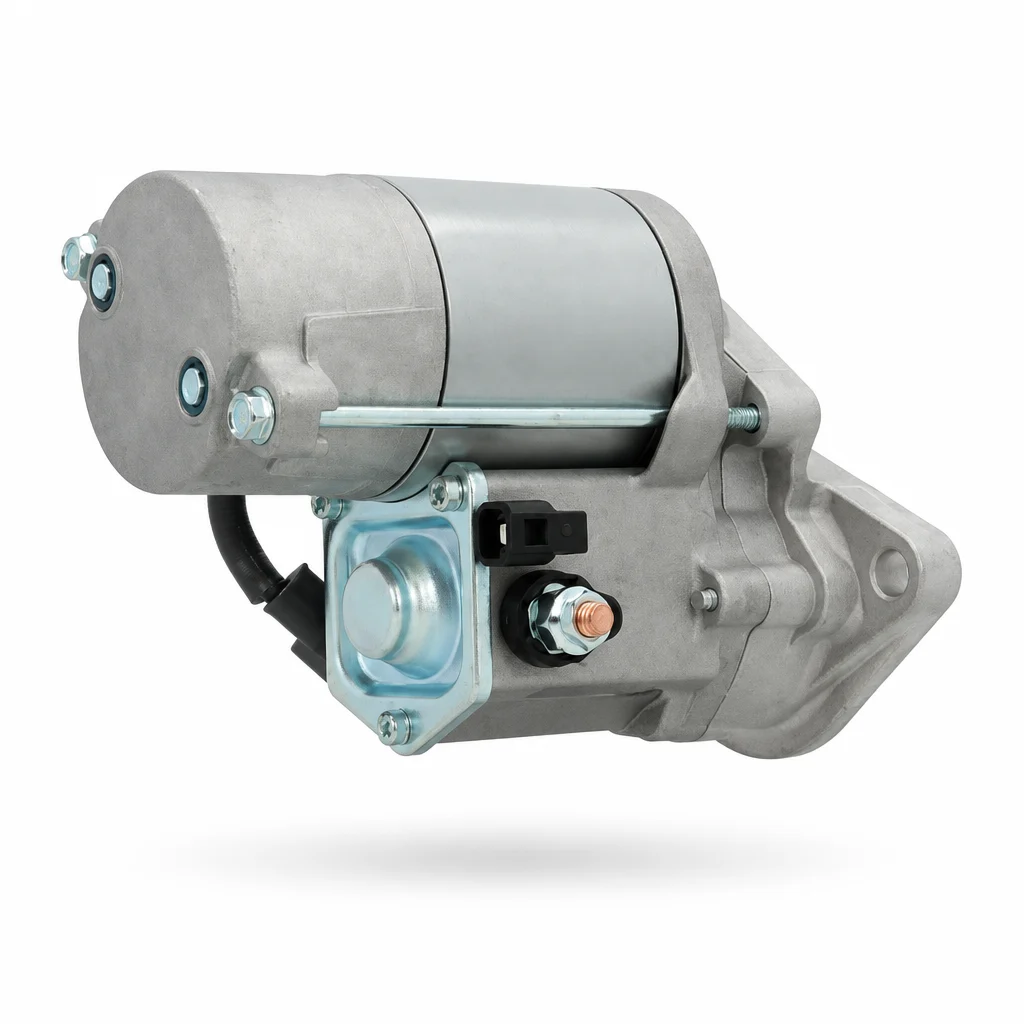

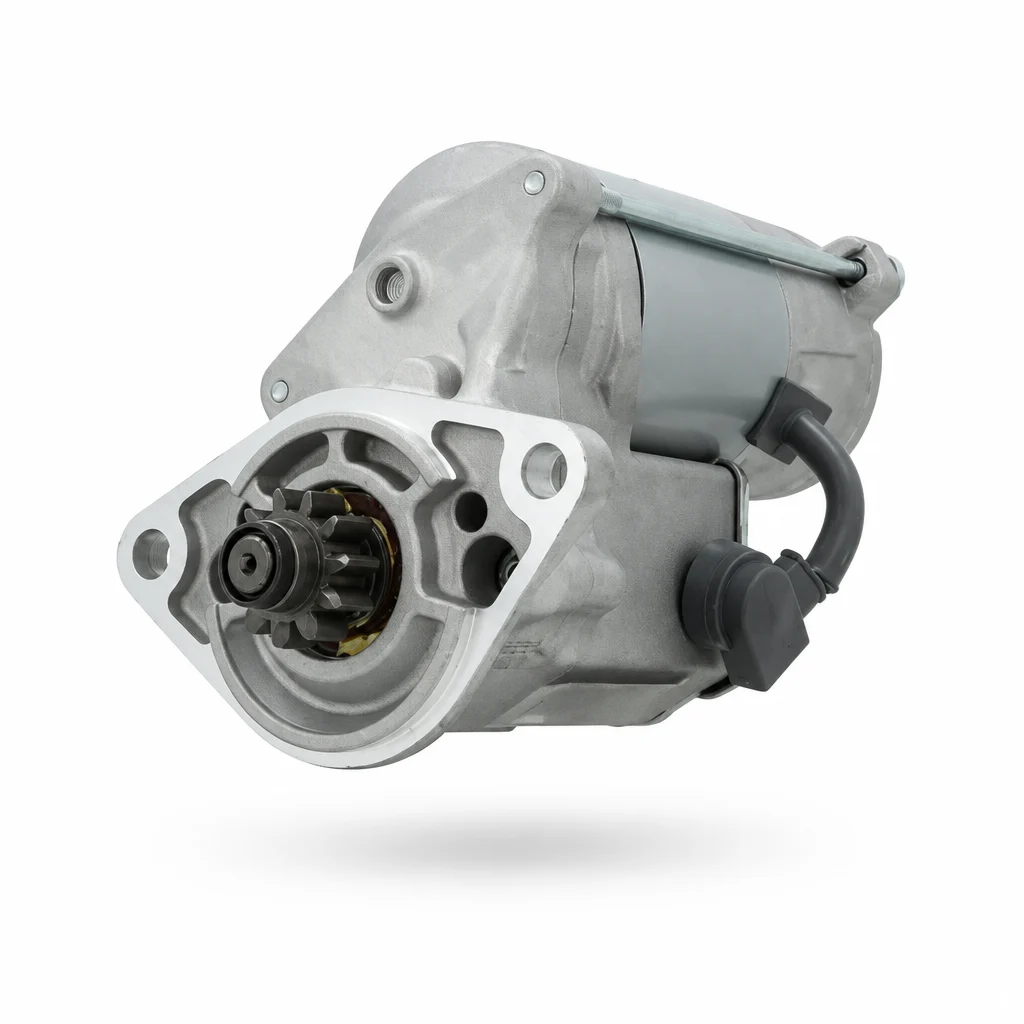

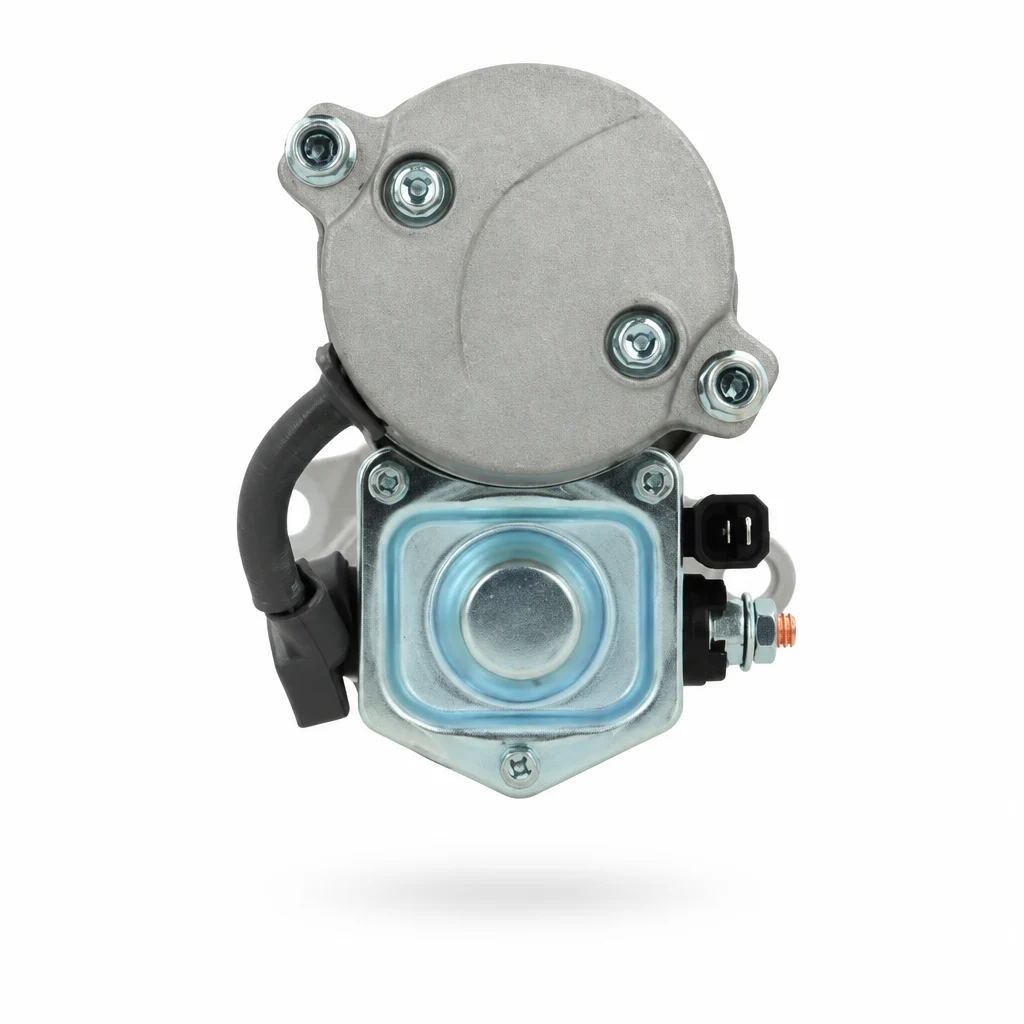

New starter motor 12V 2.0 kW with 11 teeth, Denso model 228000-2970 (Perkins 185086520, JCB 714/40479). This reduction starter motor fits Shibaura 4-cylinder engines in the New Holland TC series and T2000 series, New Holland L and LS skid steer loaders, Boomer tractors, and Case and Case IH D and DX series and Farmall tractors. A direct 1-to-1 replacement for the original.

✔️ Exact OEM fit: flange 74 mm, 2 mounting holes, clockwise rotation (CW)
✔️ Reduction starter motor 2.0 kW with 11 teeth, identical to Denso 228000-2970
✔️ Supplied brand new without core exchange of your old starter motor

Technical specifications

• Voltage: 12 Volt
• Power output: 2.0 kW
• Number of teeth: 11
• Flange diameter: 74 mm
• Number of mounting holes: 2
• Rotation direction: clockwise (CW)
• B+ terminal: M8
• Drive gear base position: 20 mm
• Solenoid position: +70°
• Type: reduction starter motor
• Condition: new

Suitable for these engines

Shibaura

• N843, N844, N844T

Case

• 422T

Machines with this starter motor

New Holland

• Tractors TC34DA, TC35, TC35A, TC35DA, TC40, TC40A, TC40D, TC40DA, TC45, TC45A, TC45D, TC45DA, TC48DA, TC55DA
• Tractors T2220, T2310, T2320, T2410, T2420, TT45A, TT50A, 1920, 3415
• Boomer 2035, 3040, 3045, 3050, 4055, 4060
• Skid steer loaders L140, L150, L160, L170, L175, C175, LS140, LS150, LS160, LS170
• Skid steer loaders L465, L565, LX465, LX485, LX565, LX665
• Mower MC35

Case / Case IH

• Tractors D35, D40, D45, DX34, DX35, DX40, DX45, DX48, DX55, DX60
• Farmall 35, 40, 45, 50, 55, 60
• Skid steer loaders 410, 420, compact track loader 420CT

Ford

• 1920, 3415

Please note:

This starter motor has a counterpart that looks almost identical: same housing, same 74 mm flange and same position, only the pinion gear differs. Therefore, always count the teeth on your old starter motor.

• JCB 8030 ZTS and 8035 ZTS: JCB 714/40479 is listed as a reference number for this item, but according to the JCB specialist, the 8030 ZTS and 8035 ZTS use the 2.0 kW starter motor with 9 teeth (JCB 714/35600, Bosch 0001109035). You can find that one here: starter motor Perkins 403D | 404D 2.0 kW 9 teeth. Count the teeth: 11 teeth is this starter motor, 9 teeth is the other one.
• Bobcat and Caterpillar: numbers Bobcat 185086650 and Caterpillar 144-9966 refer to this starter motor, but the machine models are unknown. Please compare the number on your old starter motor.

OEM for reference:

Denso

• 228000-2970, 2280002970, 228000-5120, 228000-5121, 228000-5122, 228000-5123, 228000-7530, 428000-0180

Perkins / Ishikawajima

• 185086520, 185086530, 185086650

New Holland / Ford

• SBA185086520, SBA185086530

JCB

• 714/40479, 71440479

Bobcat and Caterpillar

• Bobcat 185086650
• Caterpillar 144-9966, 1449966

Other brands

• WAI 18139N, 18139R, Lester 18139
• AS-PL S6078
• HC-Cargo 113696, F032113696
• Lucas LRS02375, LRS2375, LES0757
• Delco Remy DRS0511, RS41279
• Wilson 91295468, Dixie S8881
• Wood Auto STR5025, STR70063
• Meat & Doria 5040565, AES 13130058, Casco CST40168AS
• Sando 6040168, Sidat S12DE0300A2, Cevam 8860, Electrolog STR6670
• Elstock 25-4047, Kuhner 254185, Real 20432861BN, Ainde CGB-95120
• Auto Magneto AM-2691, Autoelectro AEY2375, Logistik 336337, Isuzu 5863016540
