Universal joint 20x57mm | Kubota B/F/G series | Iseki TU/TX | Yanmar | Bolens

Description

This universal joint (U-joint / cross joint) has been specially developed for overhauling drive shafts, intermediate shafts and PTO shafts of Japanese compact tractors. High-quality construction with needle bearings, supplied including 4 snap rings.

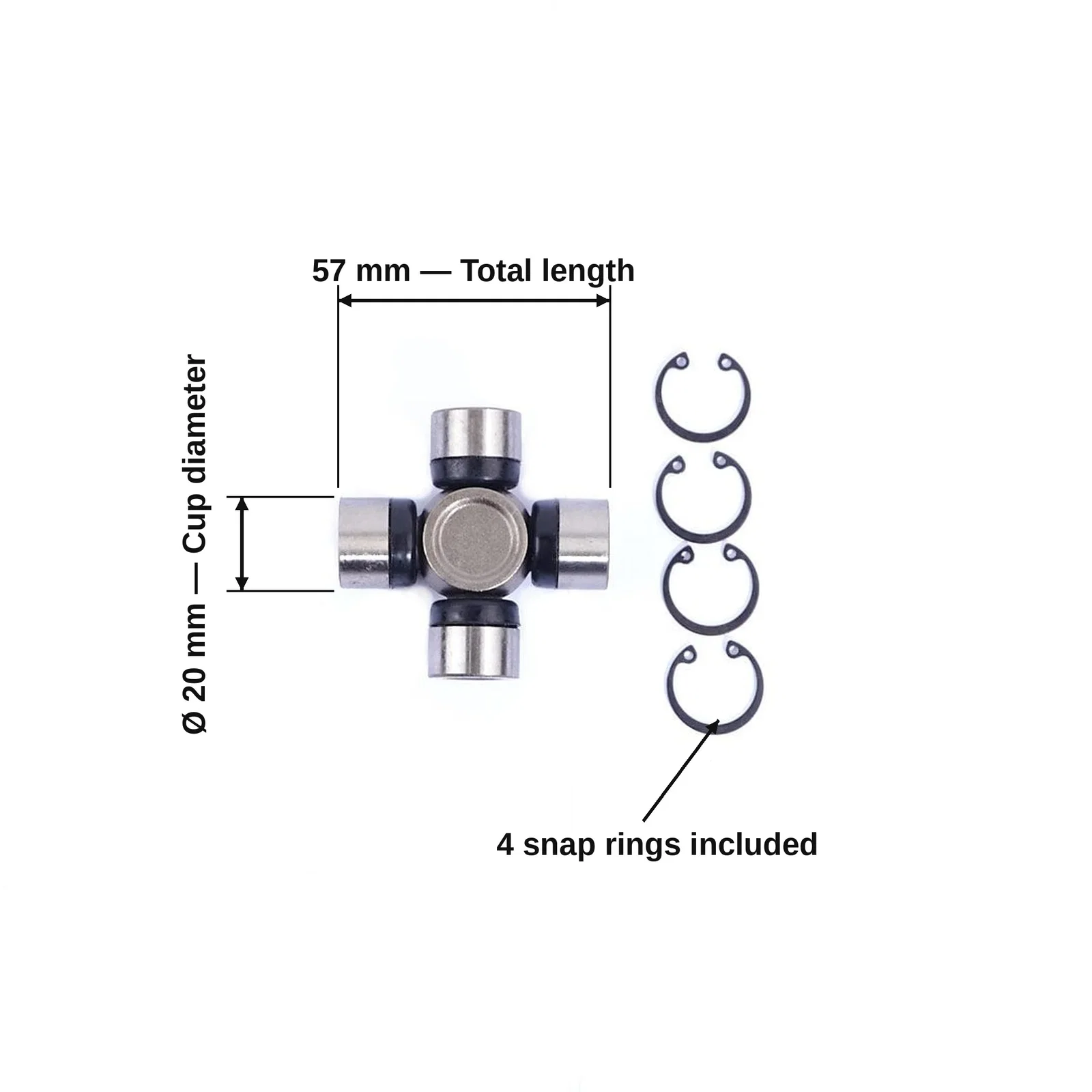

Dimensions

• Cup diameter: Ø 20 mm
• Overall length: 57 mm

Application: drive shaft / intermediate shaft (4WD) and PTO shaft of, among others, the Kubota B, F and G series and Iseki TU/TX.

Replaces, among others (OE): Kubota 66591-56320, 66716-31161 | Iseki 1427-431-009-00, 1427-433-201-00

Suitable for, among others, the following models

Bolens

• G154, G174
• H154, H174
• TX1300, TX1500, TX1504, TX1704

Iseki

• TM215, TM217, TM223
• TU315, TU318, TU320, TU324
• TX145, TX155, TX1000, TX1210, TX1300, TX1410, TX1500, TX1510, TX2140, TX2160
• 2115, 2120, 2125, 3015, 3020, 3025, 3030

John Deere

• 650, 670

Kubota

• Aste A15, A17, A19
• B1-10 to B1-17, B20, B40
• B1200, B1400, B1402, B1500, B1502, B1550, B1600, B1702, B1750, B1902, B2150, B4200
• B5000, B5001, B5100, B5200, B6000, B6001, B6100, B7000, B7001, B7100, B7200, B8200, B9200
• F2000, F2100, F2400
• G3200, G4200, G5200, G6200
• L185, L245, L2201

Massey Ferguson

• 1120, 1205, 1215, 1225

White

• FB16

Yanmar

• F5, F6, F7, F13, F14, F15, F16
• F21EX, F28EX, F145, F155, F165
• YM169, YM180, YM186, YM187, YM1602

Zen Noh

• ZB1200, ZB1400, ZB1402, ZB1500, ZB1502, ZB1600, ZB1702, ZB1902
• ZB6000, ZB6001, ZB7000, ZB7001, ZB7100

Good to know: manufacturers and suppliers state slightly different dimensions for this OE cluster, ranging from 20×55 to 20×57,8 mm. This difference is caused by the measuring method: the overall length measured across the bearing cups versus the length up to the snap ring grooves. Therefore, always measure your old universal joint — in case of doubt, our customer service will be happy to help you.
