Universal joint 20×54.8mm | 4WD intermediate shaft | Iseki | Kubota | Yanmar

Description

This universal joint (U-joint cross) has been specially developed for overhauling drive shafts, intermediate shafts and PTO shafts of Japanese compact tractors. High-quality with needle bearings, supplied including 4 snap rings.

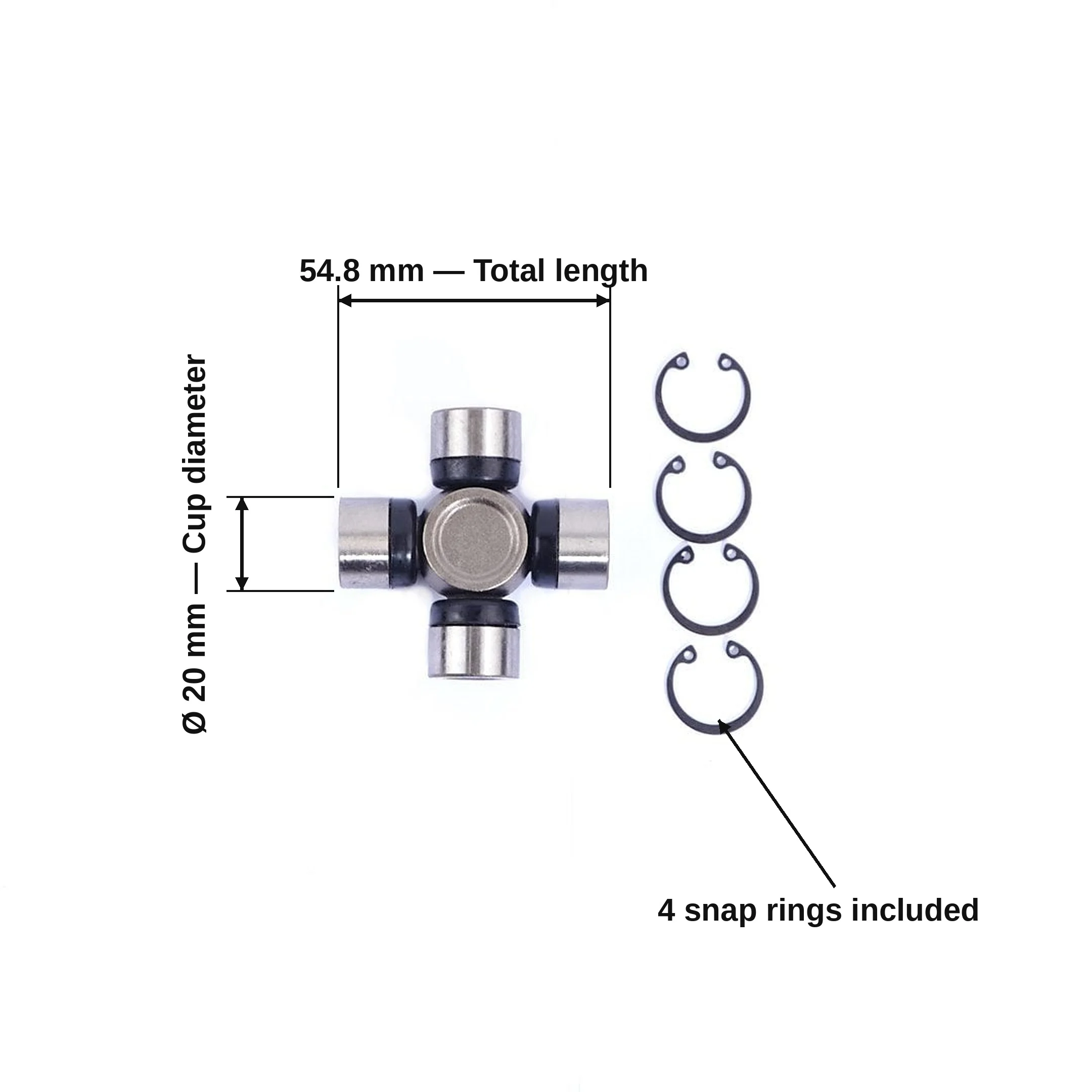

Dimensions

• Cup diameter: Ø 20 mm
• Overall length: 54.8 mm

Application: 4WD intermediate shaft / drive shaft of Japanese compact tractors (Iseki, Kubota, Yanmar and others).

Please note: not to be confused with the European standard size 22×54.8 mm (Walterscheid W2100).

Good to know: Japanese manufacturers sometimes list dimensions in this range differently (20×55 to 20×57.8 mm), depending on whether the measurement is taken across the bearing cups or to the snap ring grooves. Not sure whether you need 20×54.8 or our 20×57 U-joint cross? Measure the overall length across the cups of your old universal joint, or contact our customer service — we are happy to help.
