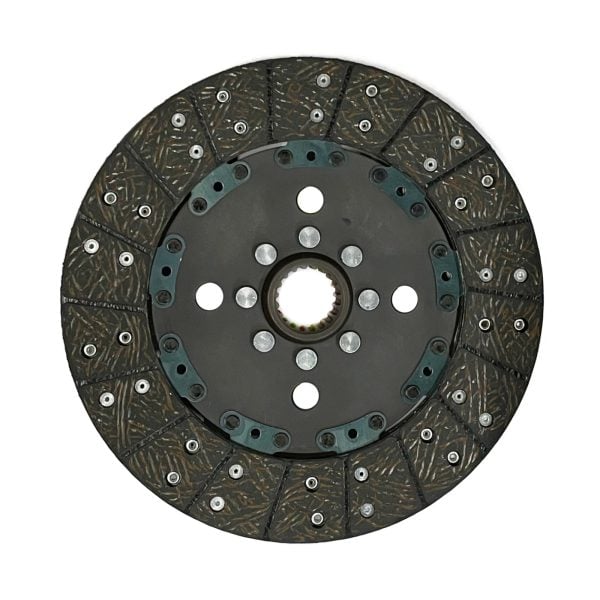

Clutch Plate Kubota L3600 – L5060 | Kioti DK40 | DS4110 – DS4510 | Mahindra 5010

Description

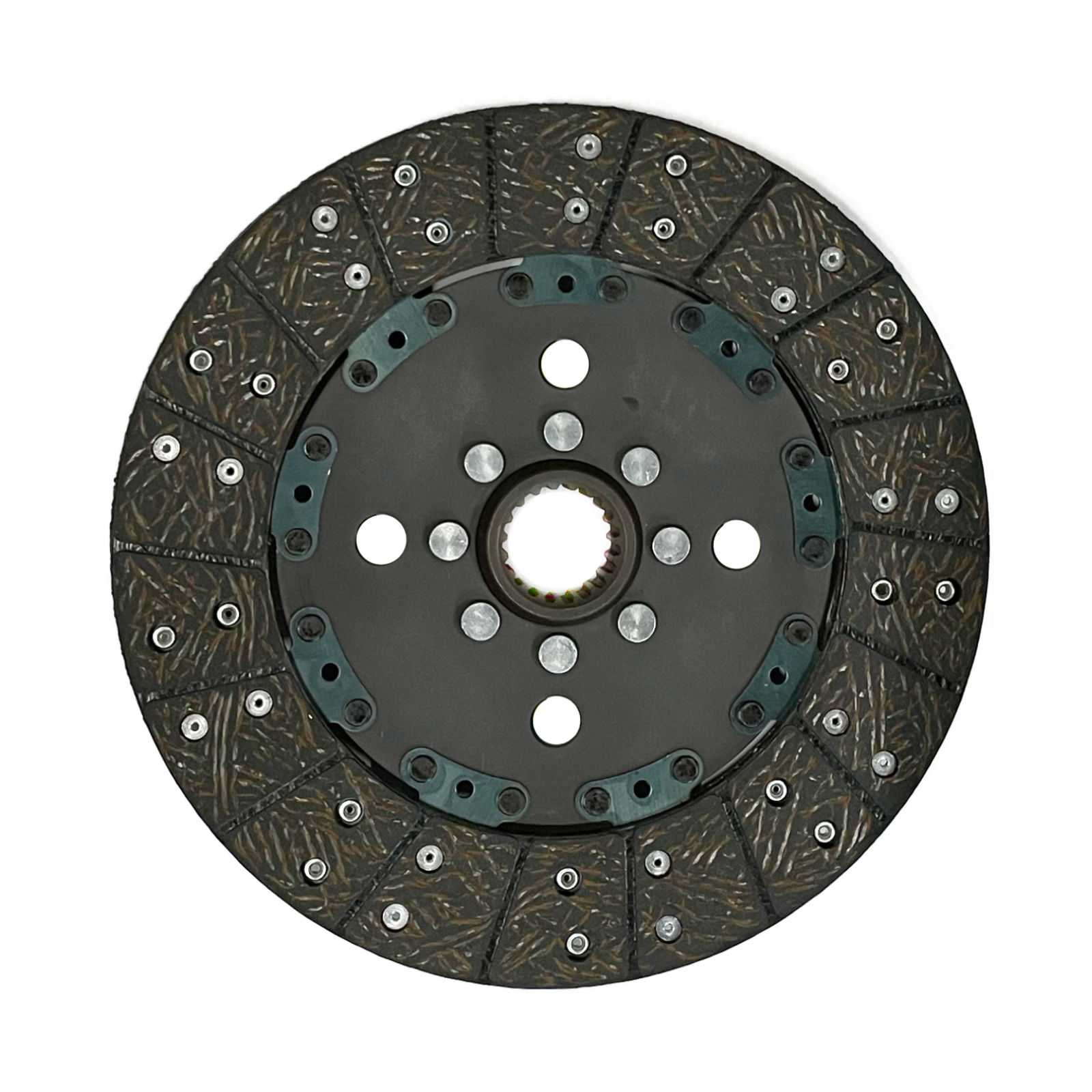

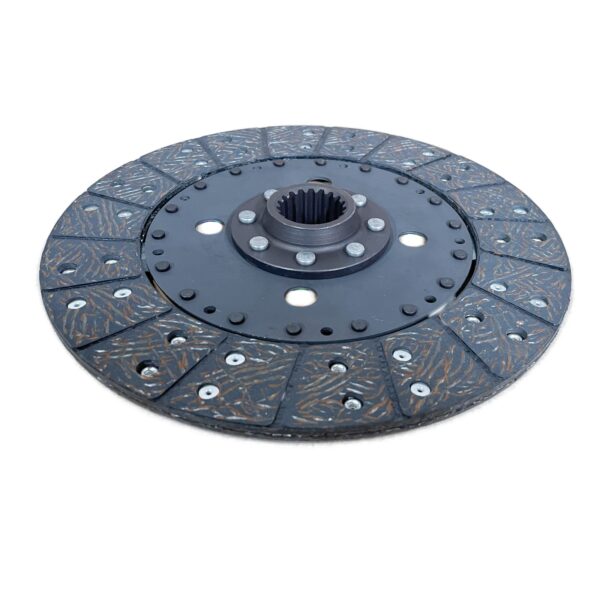

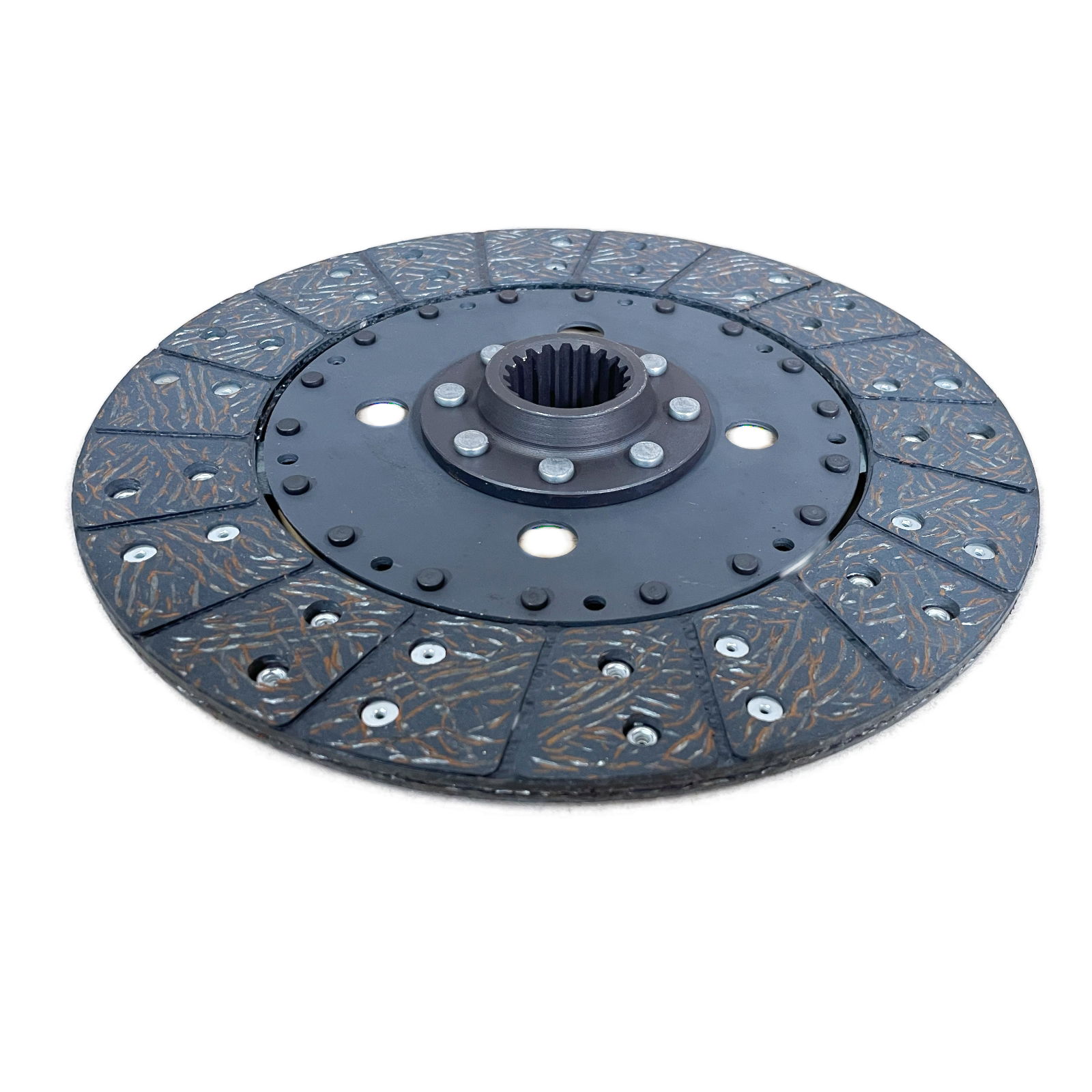

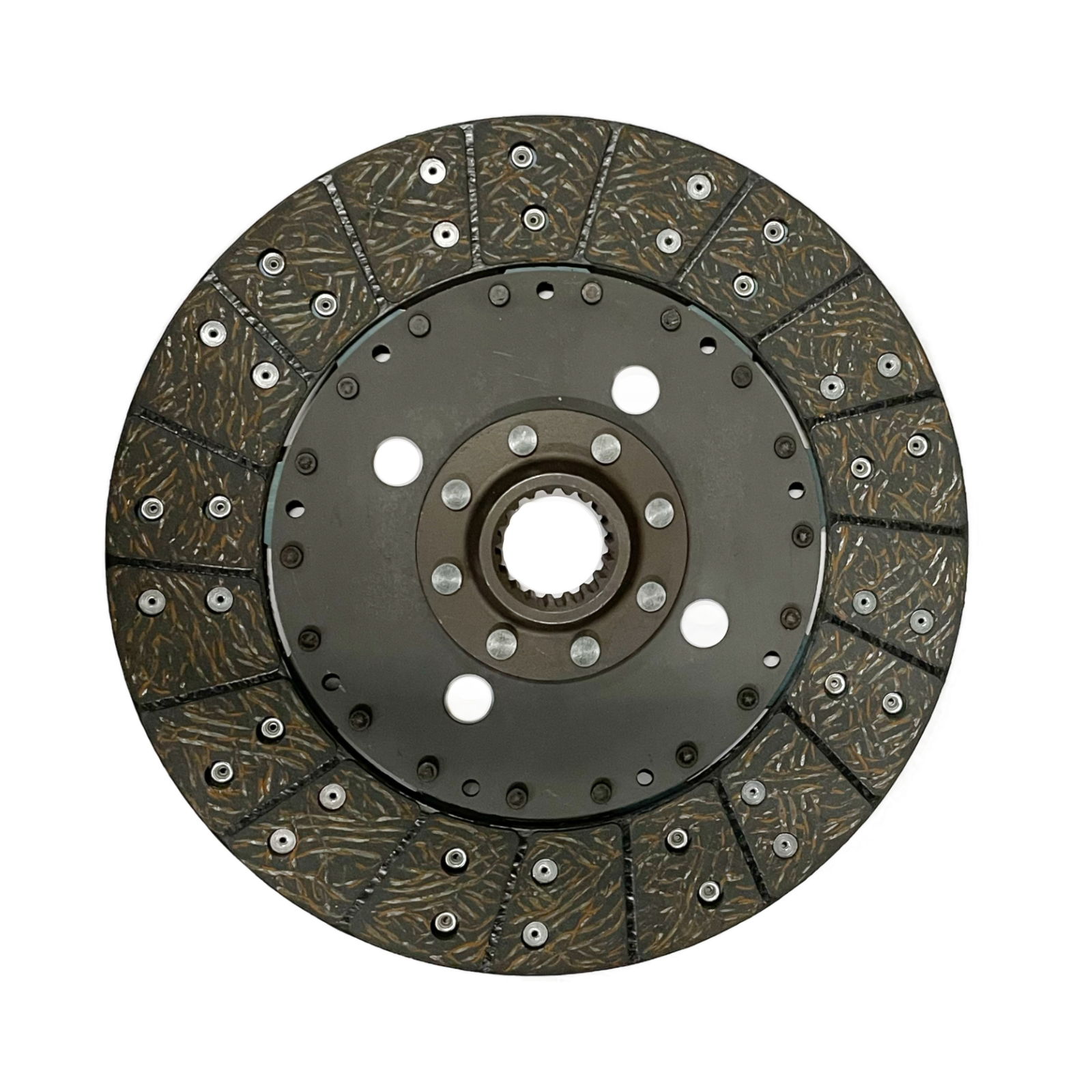

Clutch Plate – Premium Quality

This clutch plate is of high quality and provides powerful and smooth power transmission for various Kubota tractors. Thanks to the solid core construction and woven friction material, this plate is perfectly suited for intensive use.

✅ Woven friction layer for optimal grip

✅ Solid core for direct power transmission

✅ Durable and wear-resistant

Technical Specifications:

• Diameter: 10-1/4” (260 mm)
• Hub diameter: 1-3/8” (35 mm)
• Number of splines: 19
• Clutch core: Solid (non-spring)
• Friction material: Woven
• Application: Suitable for single clutch

Kioti

• DK40, DS4110, DS4510

Kubota

• L3600, L3600 (DT), L3600 (DTC), L3600 (DTGST), L3600 (DTGSTC), L39, L48

• L3710, L3710 (DT), L3710 (DTGST), L3710 (DTHST), L3710 (DTHSTC)

• L3830, L3830 (DT), L3830 (F), L3830 (GST), L3830 (GSTC)

• L3940, L3940 (GST-3)

• L4060 (DT), L4060 (GST), L4060 (GSTC)

• L4200, L4200 (DT), L4200 (DTC), L4200 (DTGST), L4200 (DTGSTC), L4200 (F), L4200 (FC), L4200 (FGST)

• L4202

• L4240, L4240 (DT), L4240 (DTGST)

• L4310, L4310 (DT), L4310 (DTGST), L4310 (DTGSTC), L4310 (DTHST), L4310 (DTHSTC), L4310 (F)

• L4330, L4330 (DT), L4330 (DTGST), L4330 (DTGSTC)

• L4610, L4610 (DTGST), L4610 (DTHST), L4610 (DTHSTC)

• L4630, L4630 (DT), L4630 (GST), L4630 (GSTC)

• L4740

• L4760 (GST)

• L5030, L5030 (GST)

• L5040, L5040 (GST), L5040 (GST-3)

• L5060 (GST)

• MX4700, MX4700 (DT), MX4700 (F)

• MX4800, MX4800 (DT), MX4800 (F)

• MX5000, MX5000 (DT), MX5000 (F)

• MX5100, MX5100 (DT), MX5100 (F)

Mahindra

• 5010

OEM for reference

• TD060-20500
• 32771-20500 32781-20502 TA040-20500 TC050-20500
