Wiring diagram Kubota B5000 – B7100 – everything you need to know
Decipher the Secret of the Kubota B Series: Wiring Diagram
The Kubota B5000, B5001, B6001, B7000 and B7001 belong to the iconic B-series of Kubota tractors, known for their reliability and versatility. Let’s take a look at the wiring diagram of these legendary machines: Don’t forget the Zen-noh ZB5000, ZB5001, ZB6000, ZB6001, ZB7000 and ZB7001!
Kubota B5000: The Pioneer of the Series
Starting with the Kubota B5000, we see a simple yet effective wiring diagram that embodies the essence of Kubota’s engineering expertise. With its compact size and reliable performance, the B5000 shows how efficiency and functionality come together in Kubota’s designs.
Kubota B5001: Evolution of Reliability
The successor to the B5000, the Kubota B5001, builds on the success of its predecessor with improved features and a more advanced wiring diagram. The diagram reveals the precise wiring that connects the various electrical components, making this tractor ready for any challenge in the field.
Kubota B6001: Powerful and Agile
The Kubota B6001 with the Kubota D650 3 cylinder radiates power with its advanced wiring diagram, which supports the robust performance of this tractor. With its agility and precision, the B6001 is a favorite among farmers looking for reliability and efficiency.
Kubota B7000 and B7001: Leading Innovation
The Kubota B7000 and B7001 represent the pinnacle of Kubota’s technological innovation. Equipped with the 2 cylinder in the Kubota Z650 and the Kubota B7001 with the 3 cylinder D750 Kubota engine.
Breakdown of the Wiring Diagram
The Kubota B Series Wiring Diagram reveals a network of electrical connections essential to the tractor’s operation. This includes:
- Main Switch and Key Switch: These switches control the power supply to the tractor’s electrical system, simplifying operation.
- Battery and Charging System: The wiring diagram shows the connections of the battery and charging system, critical to maintaining a reliable power supply.
- Lighting systems: This includes headlights, taillights and other lighting systems that provide visibility and safety, both day and night.
- Switches and Relays: All switches, relays and fuses are accurately labeled, ensuring the reliability of the electrical systems.
- Instrument Panel: The wiring diagram shows the wiring leading to the instrument panel, including gauges, warning lights and switches, giving the driver complete
- has control over the tractor.

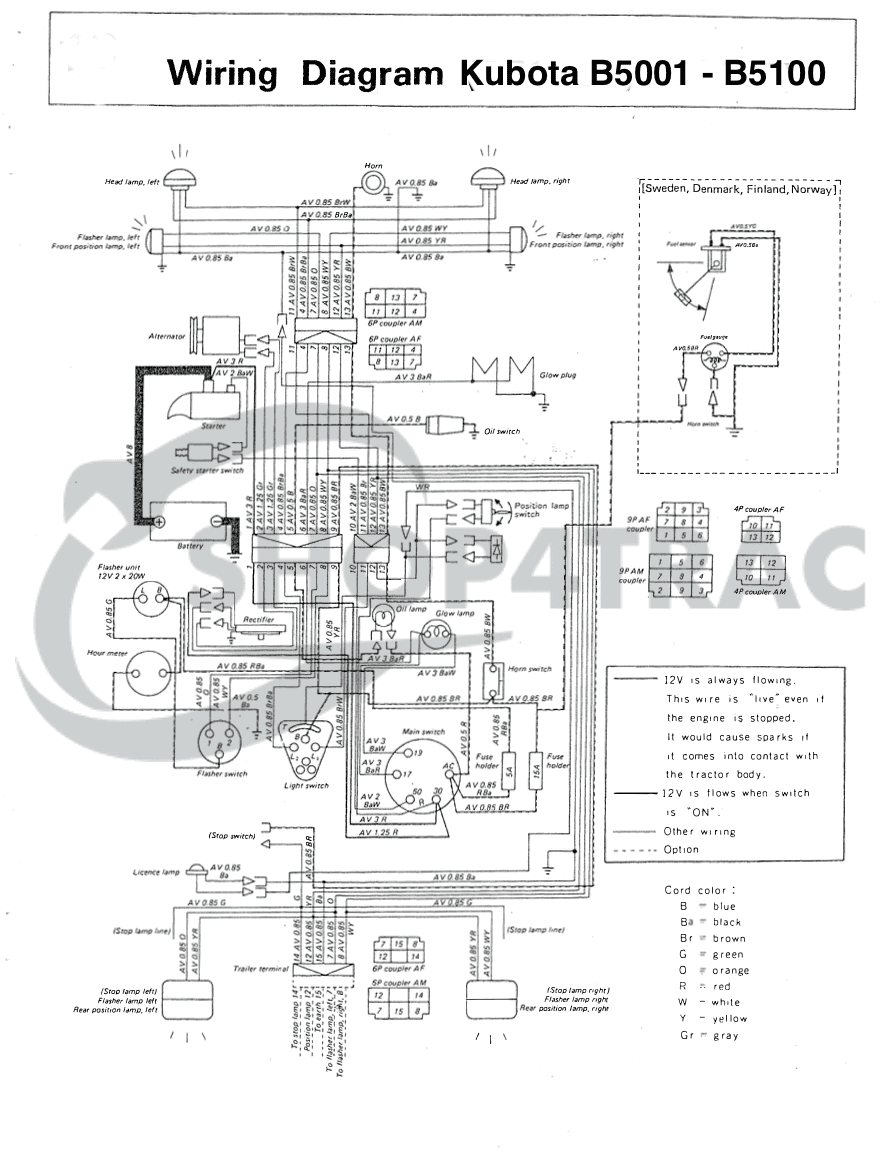

Kubota B5001 – B5100 Wiring Diagram

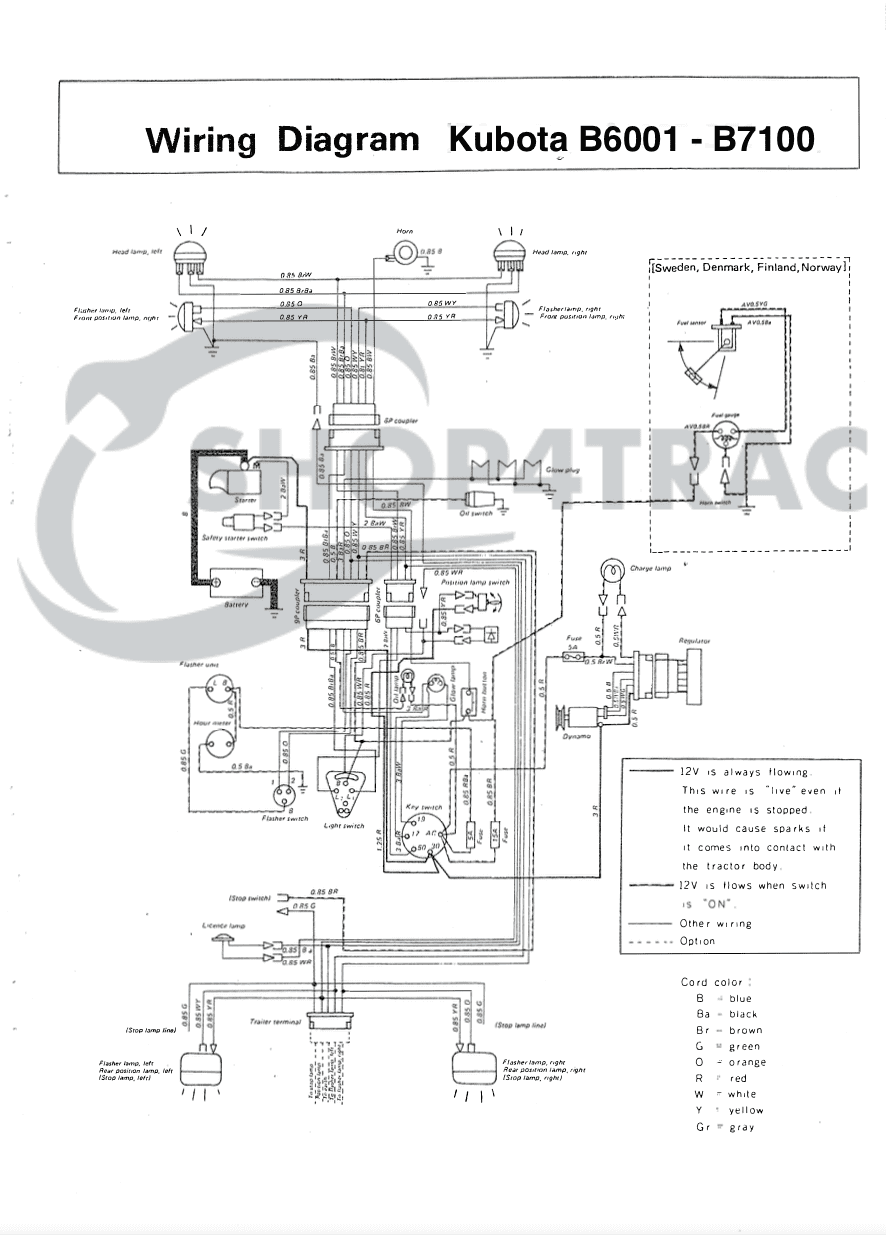

Kubota B6001 – B6100 | B7001 – B7100 Wiring Diagram
Conclusion: The Electric Core of the Kubota B-series
The Kubota B5000, B5001, B6001, B7000 and B7001 wiring diagram reveals the electrical core of these legendary tractors. With their reliable performance and advanced technology, these machines continue to set the standard for efficiency and productivity in the field.
If you have any specific questions about the wiring diagram for any of these models, please let me know!
Below is a summary of different parts of the electrical system.

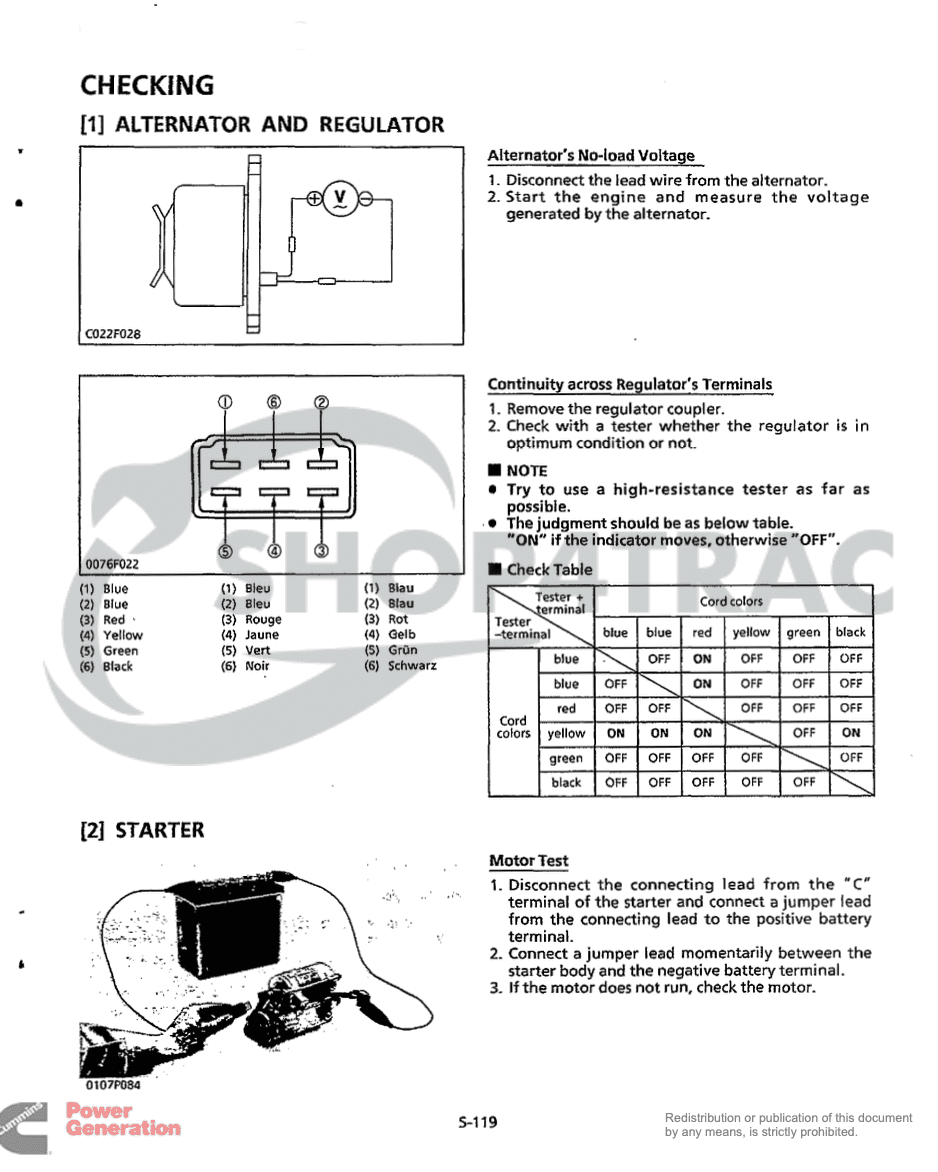

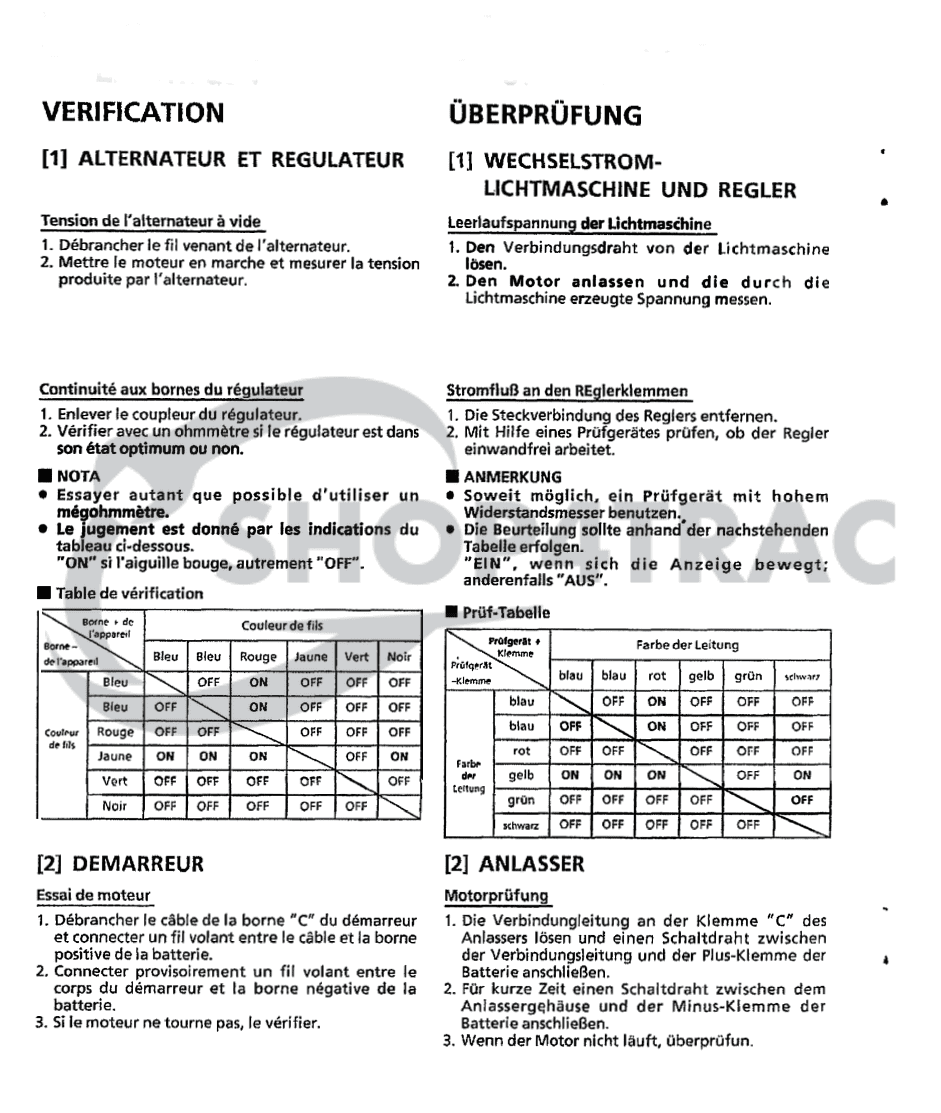

The alternator and voltage regulator
