In-frame overhaul kit Kubota D1005 – B2100 | BX2660 | Bobcat S70

Description

With this in-frame overhaul kit, you can replace the wear-prone parts of the Kubota D1005 three-cylinder diesel engine without a full block overhaul. A cost-effective alternative to a full overhaul kit, intended for engines where the cylinders are still within tolerance. Since the cylinder head must be removed to extract the pistons, a complete gasket set is included so you can seal the engine properly and leak-free.

✔️ Cost-effective alternative to a full overhaul kit
✔️ Includes complete gasket set (incl. crankshaft oil seals) — the head gasket is always required
✔️ For cylinders within tolerance; honing recommended

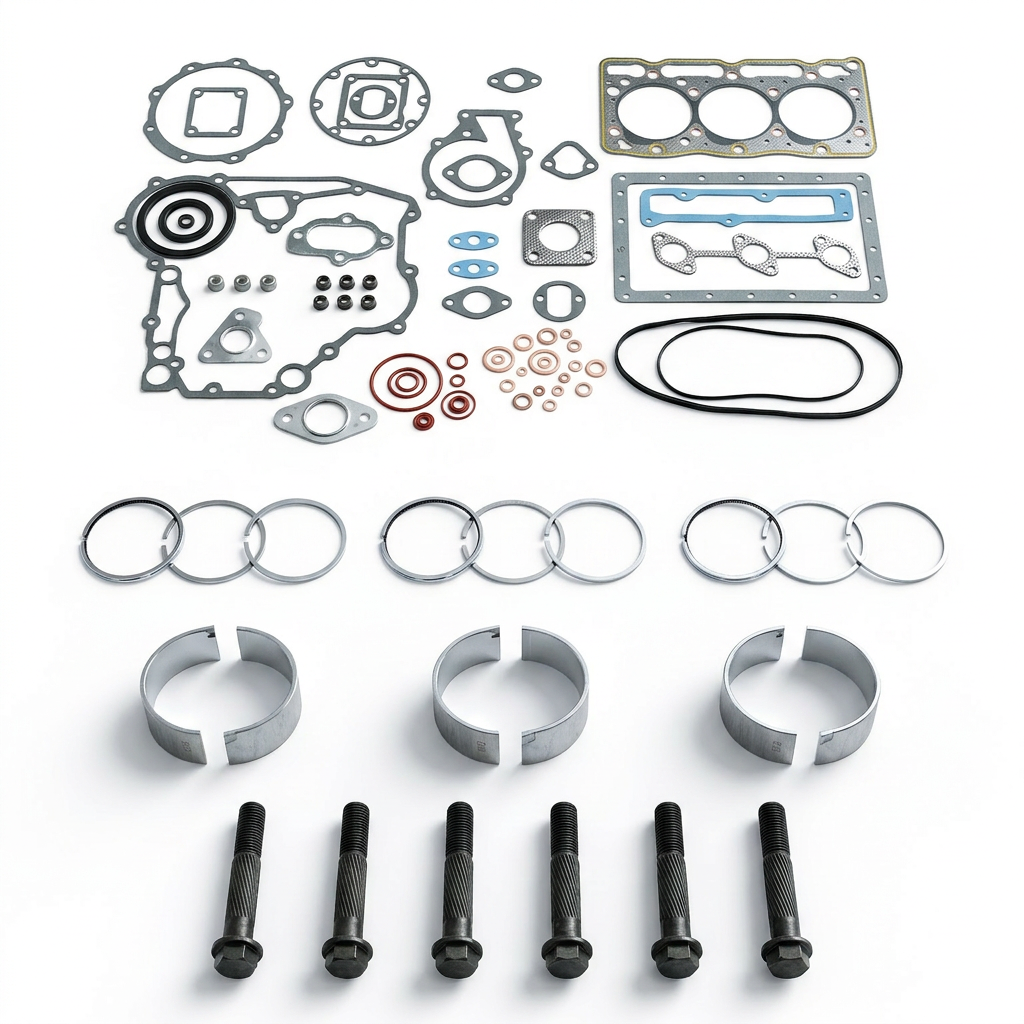

Kit Contents:

• 3× piston ring set
• 3× connecting rod bearing
• 1× complete gasket set (incl. front + rear crankshaft oil seals)
• 6× connecting rod bolt

Please note: not suitable for scratched or worn cylinders or after overheating. In that case, choose the full overhaul kit.

Suitable for:

Kubota

• A-17, A-175
• B2100, B2100D, B2100HSD, B2110D, B2110DB, B2110HDB, B2301HSD, B2320DT, B2320DTN-1, B2320HSD, B2320HSDN
• B7500, B7500DT, B7500HSD, B7510, B7510DT, B7510DTN, B7510HSD
• BX2660, BX2670D, BX2680
• J112-AUS, J112-STD, J114-SA, J114-STD, J315-AUS, J315-STD, J318-STD (J-series generators)
• ZD326 (mower)

Bobcat

• 463, 553, S70, S100

Bomag

• BMP 8500

Hamm

• HD 8 (H1990001 →), HD 8 VV, HD 10C, HD 10C VV

Ingersoll-Rand

• 7/20

JCB

• VMT160

JLG

• 260MAR

Schäffer

• 2024, 217S, 221, 222

Wacker Neuson

• LTW, LTV (light towers)

OEM ref:

• 16236-99350, 1623699350 — Complete gasket set
• 16236-99352, 1623699352 — Complete gasket set
• 16226-99364, 1622699364 — Complete gasket set
• 16231-03310, 1623103310 — Head gasket
• 16221-03310, 1622103310 — Head gasket
• 16261-14520, 1626114520 — Valve cover gasket
