General Ignition Switch Kubota | Yanmar | Iseki

A General Ignition Switch for Connection to most Mini Tractors.

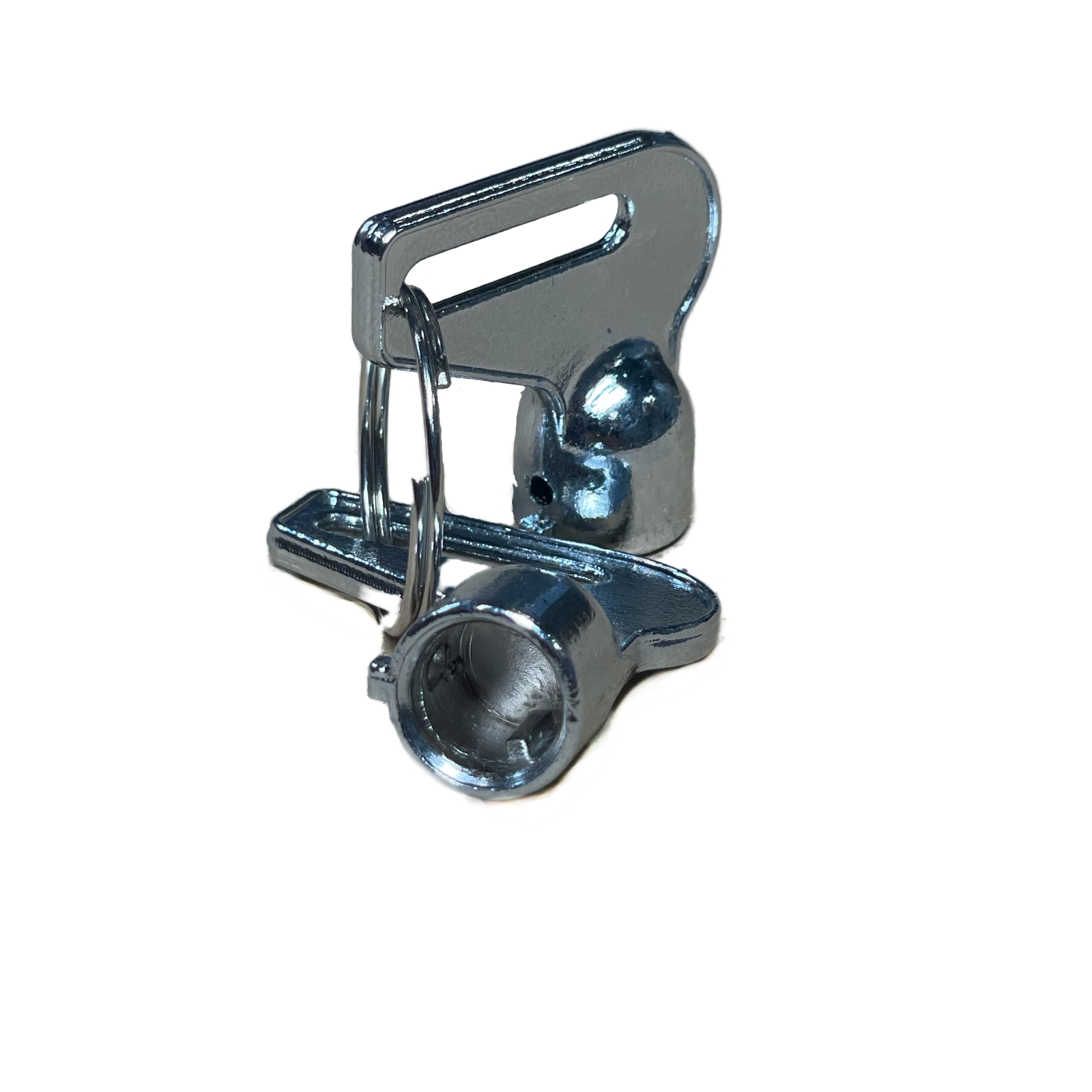

Variant available with key or socket wrench.

Key Position Options of this Ignition Switch and Information Regarding the Connection.

Key position	Position	Active connections	Description
-1 (left)	GLOW	B → BR	Preheating as long as key is held
0	OFF	None	Everything off, key removable
1 (right)	ON	B → R1, R2, (sometimes ACC)	Contact on, power to dashboard & valves
2	START	B → C + R1/R2	Starter motor activated

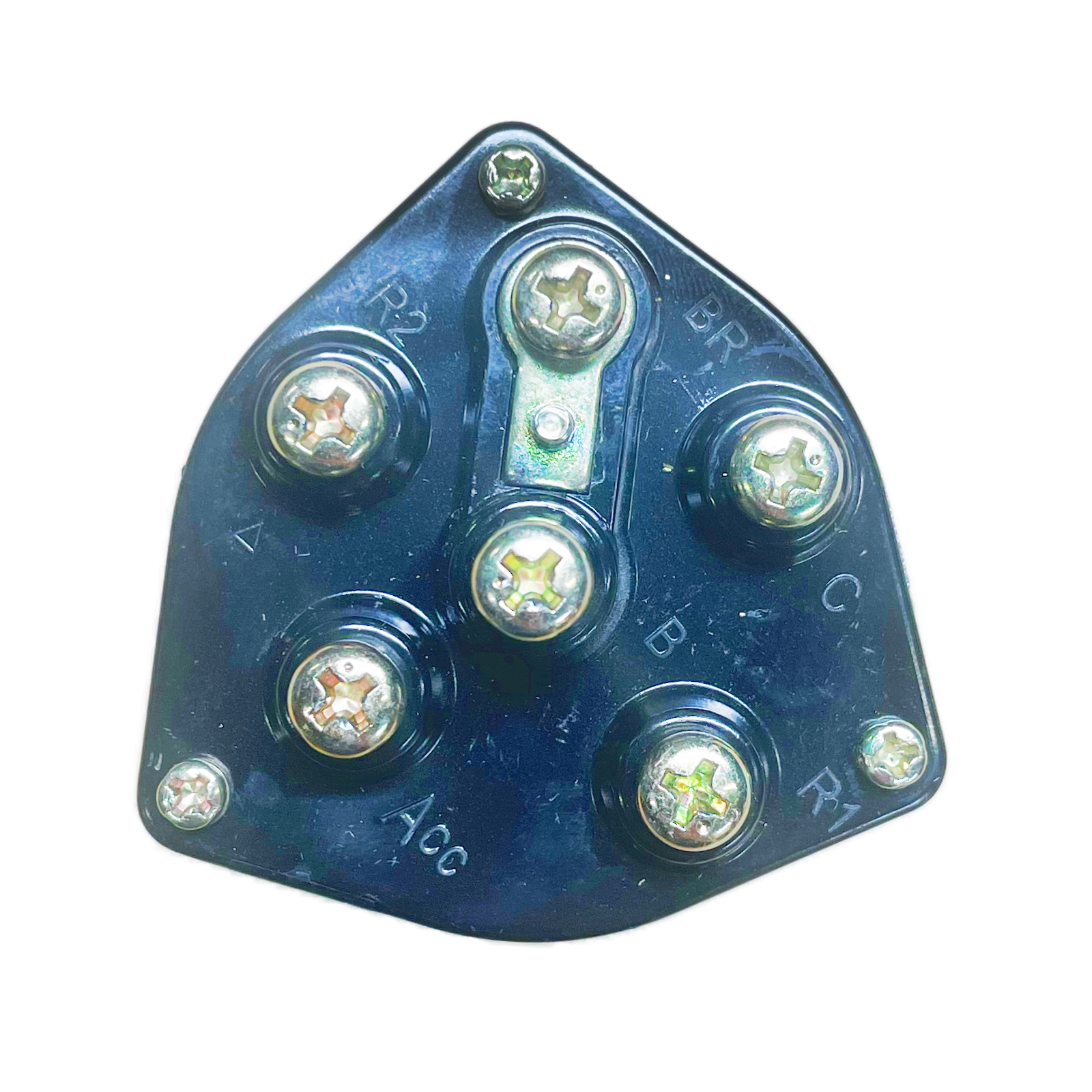

Connection	Function	Active at position	Application
B	Battery (12V power in)	Always	Power supply for internal contact
BR	Glow (preheating)	Only at -1	To glow relay or direct glow plugs
R1	Run 1 (main contact)	Position 1 & 2	Dashboard, relay, fuse box, engine function
R2	Run 2 (secondary power)	Position 1 & 2	Glow control lamp, extra circuits
C	START / to start relay or starter motor	Only at position 2	Controls the starter motor or start relay
ACC	Accessory	Sometimes only in position 1	Radio, lighting (rarely wired on tractors)

Example models for which this ignition switch can be used:

Iseki

Landleader TA series, Sial: TF series, TL, Landhope TU, TK

Bolens

Kubota

B series models

Yanmar

Additional information

Weight	0,8 kg
Brand	Agco, Agria, Airman, Aixam, Allis Chalmers, AMI, Antonio Carraro, Atlas, Ausa, Avant, BCS, Bertolini, Beta, Bobcat, Bolens, Branson, Captain tractor, Carraro, Casalini, Case, Case IH, Caterpillar, Challenger, Craftsman Marine, Cub Cadet, Cup Cadet, Daewoo, Denyo, Deutz, Deutz-Allis, Doosan, Eurocomach, Eurotrac, Farmtrac, Ferrari Agri, Ford, Gehl, Genie, Gianni Ferrari, Giant, Goldoni, Gutbrod, Hako, Hanix, HFL, Hinomoto, Hitachi, Holder, Hyundai, Ingersoll Rand, Iseki, J.F. Marine Power, JCB, John Deere, Jungheinrich, Kawasaki, Kioti, Knikmops, Kobelco, Komatsu, Kubota, Kumiai, Lamborghini, Landini, Landtrac, Lokari, Magnum, Mahindra, Manitou, Massey Ferguson, Mastervolt, Mitsubishi, Mustang, Nagano, Nanni, New Holland, Noda, O&K, Pasquali, Peljob, Perkins, Ransomes, Samofa, Satoh, Schaeff, Schäffer, SDMO, Shibaura, SImplicity, Sole Diesel, Solis, Sumitomo, Suzue, Takeuchi, Takeushi, TCM, Technogen, Teksan, Terex, Thermoking, Toro, Triton, Trixon, TYM, Vetus, Volvo, Wacker Neuson, Weidemann, Westerbeke, Whisper Power, White, White Field Boss, White Oliver, Yanmar, Zen-noh, Zeppelin
Options	variant 1, variant 2
