Dynamo Mitsubishi S3L – S3L2 | S4L – S4L2| S4Q – S4Q2

Beschrijving

Premium kwaliteit dynamo waarbij de compatibele modellen erbij zijn gezocht.

Mitsubishi motor

• S3L-62AG2, S3L-62APH2, S3L2-62AG2, S3L2-62APH2
• S4L2, S4l, S4l2-Y162gt, S4L2-Y162SD, S4L2-61SD, S4L2-61ES, S4L-Y263KL, S4L2-T, S4L-Y262KL, S4L-61KL, S4L-Y162KL
• S3L2-61ES, S3L2-61SD, S3L2-61SDH, S3L2-61TG, S3L2-61WH, S3L2-63ES, S3L2-63KL-NP2, S3L2-64ES, S3L2-SD, S3L2-W463KL, S3L2-Y131NSB

OEM ter referentie

• 31A6800401, 31A6800402, A007T02071, A007T02071A, A007T02071C
• 32A68-00301, 31A6800300, A007T02072, A007T02077
• 4396444
• A007T02071CAM, A007TA1472, A007TCA171, A007TCA171AM, A7T02071, A7T02071A, A7T02071C, A7T02071CAM, A7TA1472, A7TCA171, A7TCA171AM
• E7415514, E7416583, E7417830

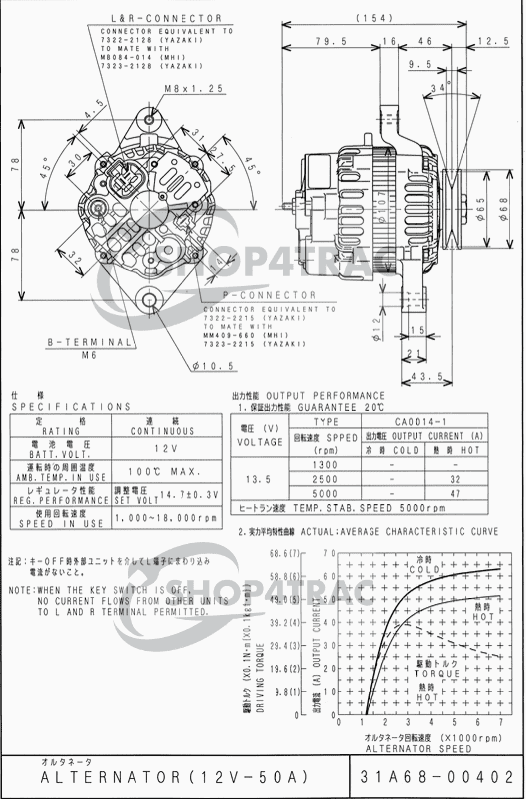

Technische gegevens

• Voltage 12
• Amperage 50
• Pulley (mm) 69.0
• B+ M6

Overige machines:

Cup cadet

• 7200, 7205, 7260, 7265, 7360, 7530, 7532

AMI

• GS 0009 M 32S, GS 0013 M 32S, GS 0025 M 32S

ATLAS

• AM29R, AM35R

Broadcrown

• BCM 8-50SP E2, BCM 11-50 E2, BCM 11-60SP T4, BCM 11-60SP, BCM 11-60, BCM 12-50SP E2, BCM 15-60, BCM 15-60SP iT4, BCM 15-60SP, BCM 16-50 E2

Craftsman Marine (Mitsubishi)

• CM4.42

Caterpillar

• 302.5C, 303CR, 303SR, 304CR

Cup cadet

• 7000, 7200, 7205, 7260

Hanix

• H22A, H24A, H26C, H36C

Deutz-Fahr

• Agrokid 30, Agrokid 40, Agrokid 50, Mini tractor Agrokid 30, Mini tractor Agrokid 40

Eisemann

• P 11000 DE, P 11001 DE, T 11000 DE, P 15000 DE, P 15001 DE, T 15000 DE

Frigoblock

• DS 12L, DS 17

Geko

• DH/S 10 MF, DH/S 10, DH/S 15, DH/S 15 MF

HFL (Mitsubishi S4L2)

• H4M15M1CT, H4M20M1CT

Huerlimann

• Prince 40, Prince 50

Ingersoll Rand

• G11, G12, G16, G17, G23, Generator G16, Generator G17

JF Marine Power BV

• JF15-1500

K&G

• G20

LG Tractors

• LT280D, LT360D, LT360HST

Lamborghini

• R1.30, R1.40, R1.50

Mahindra

• 2015 Gear 4WD, 2015 HST 4WD, 2216 Gear, 2216 HST, 2415, 2415H, 2516 Gear, 2516 HST, 2615 Gear, 2615 HST 4WD, 2816 Gear, 2816 HST 4WD, 3015 HST

MAM (Mitsubishi Agricultural Machinery CO., LTD)

• Combine Harvesters VS38, VY43 Tractors GO26, GO26H, GO28, GO28H, GO30, GO30H, GO32, GO32H, GO34, GO34H, GX34, GX37, MT251K, MT331K
• GS160, GS180, GS200, GS210, GS230, GS250, MT200D, MT260D, VS211, VS231, VS251G, VS281G, VSS26, VSS30, VY321G

Massey Ferguson

• MF 2405, MF 2410, MF 2415

Mastervolt

• Whisper 12000 Ultra, Whisper 12000-1500/50Hz, Whisper 15000 Ultra

Mitsubishi

• GO26, GO28, GO30, GO32, GO34, GO260, GO261, GO280, GO281, GO300, GO301, GO320, GO321, GO340, GO341, MM30T, MM25T, MM30CR2, MM30SR, MM30T, MM30R
• GO26, GO28, GO30, GO32, GO34, GO260, GO261, GO280, GO281, GO300, GO301, GO320, GO321, GO340, GO341
• MT200, MT201, MT231, MT240, MT246, MT251, MT271, MT291, MT311, MT331, MT341
• Tractor MT265MFYS6
• MM35T, MM40CR, MM40SR
• GS182

Montana

• 3040, 3840, 3940

New Holland Kobelco

• EC25, EC35, Excavator EC35

Nilfisk-Alto

• Sweeper/scrubber ATS 46, Sweeper/scrubber ATS 53, Pressure washer: Contractor Silent

O&K

• Mini excavator RH 1.29, Mini excavator RH 1.35

Pel Job

• EB350, EB406, EB306, EB25.4, EB30.4, EB250
• EB25.4, EB250 XT, EB350 XT, EB406

Pronar

• Tractor 320, Tractor 320 AM, 320AM, 320AMK

Same

• Tractor Solaris 30, Tractor Solaris 40, Tractor Solaris 50

Schaeff Terex

• HR14, HR16, HR16A, HR3.7

Sileo

• Multimachine Sileo 3.40

Solé Diesel

• Marine G-15M-15, Marine G-15T-15, Marine G-25M-3, Marine G-25T-3, Marine Mini 44, Marine Mini 55
• Mini-33, Mini-44, Mini-55

Teksan Generator

• TJ16MS, TJ27MS, TJ9MS, TJ11MS, TJ20MS

Technogen

• MI12 / 4SX, MI12T / 4SX, MI17 / 4SX, MI17T / 4SX

Terex

• TC25, HR14, TC29, TC35, TC37, TC60
• HR3.7, HR16, HR16A

Terex-Schaeff

• HR14, HR16, HR16A, HR3.7, TC29, TC35, TC37, HR16A, TC37, HR16A, TC35, HR16A, TC37, HR3.7, TC37

Toro

• Fairway Mower Reelmaster 220-D, Lawn Mower GM 220D, Lawn Mower Groundsmaster 220-D, Utility Vehicle Workman 3300-D, Utility Vehicle Workman 4300-D

Trition

• Generatorset 15/15

Vetus

• Marine M4.15, Marine M4.17

Volvo

• EC30, EC25, EC35

Weidemann

• Wheel Loader 1070D/M, Wheel Loader 1050D/M, Wheel Loader 1504D/M, Wheel Loader 1055D/M, Wheel Loader 1070D/M, 1504D/M

Whisper Power

• Super Quiet diesel generator SQ12 1500rpm 230V/50Hz

Zeppelin

• ZR25, ZR35
