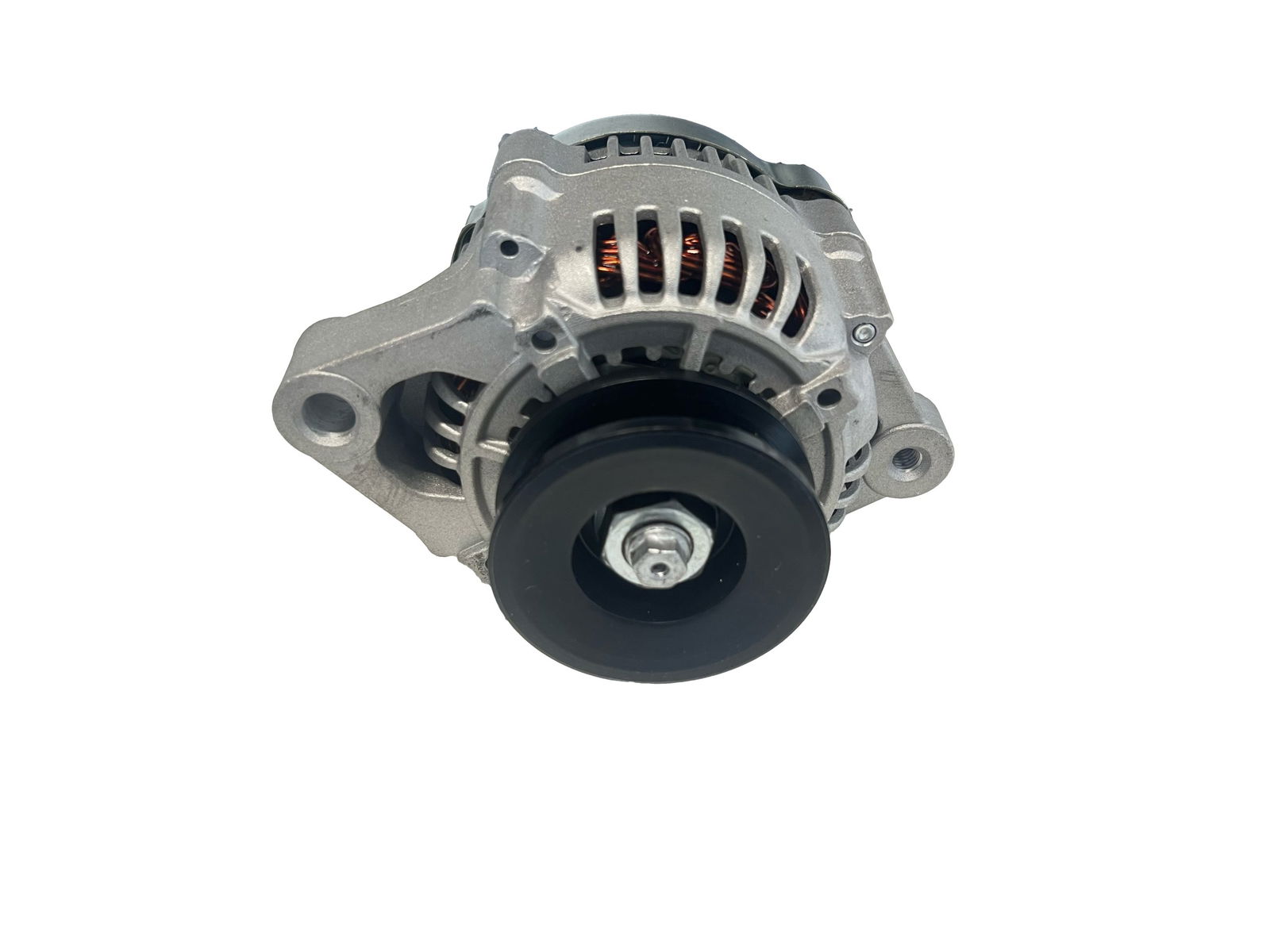

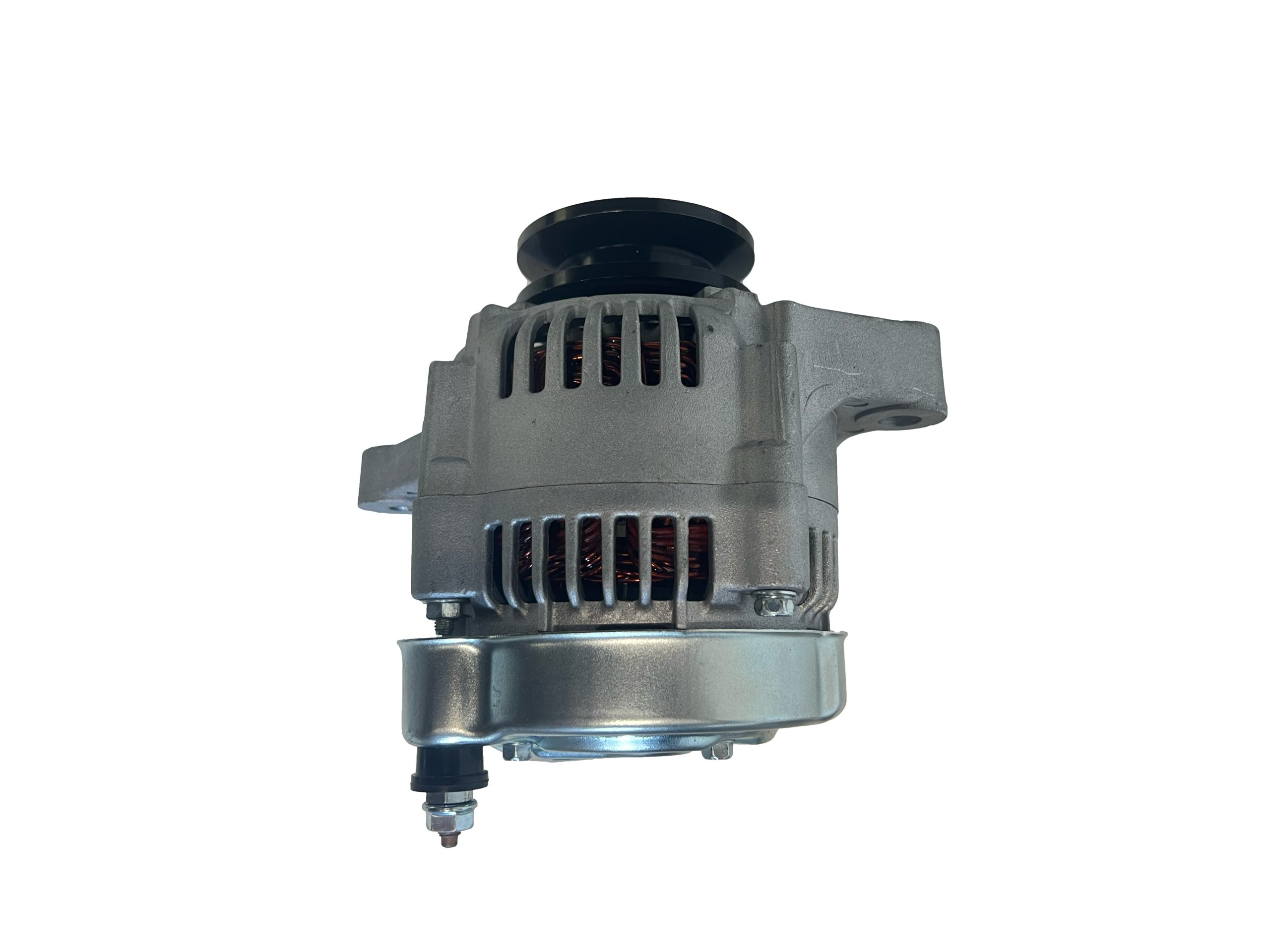

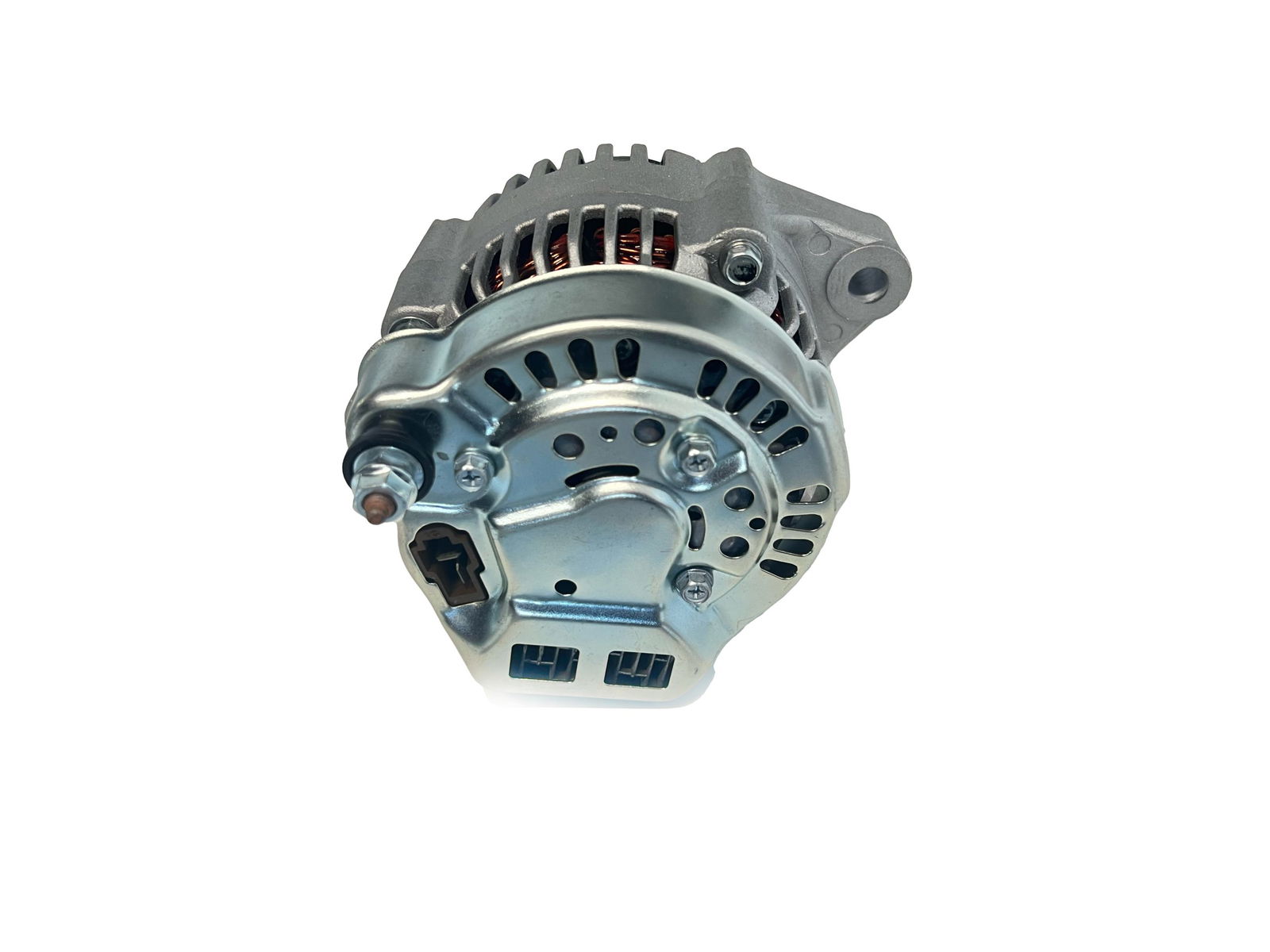

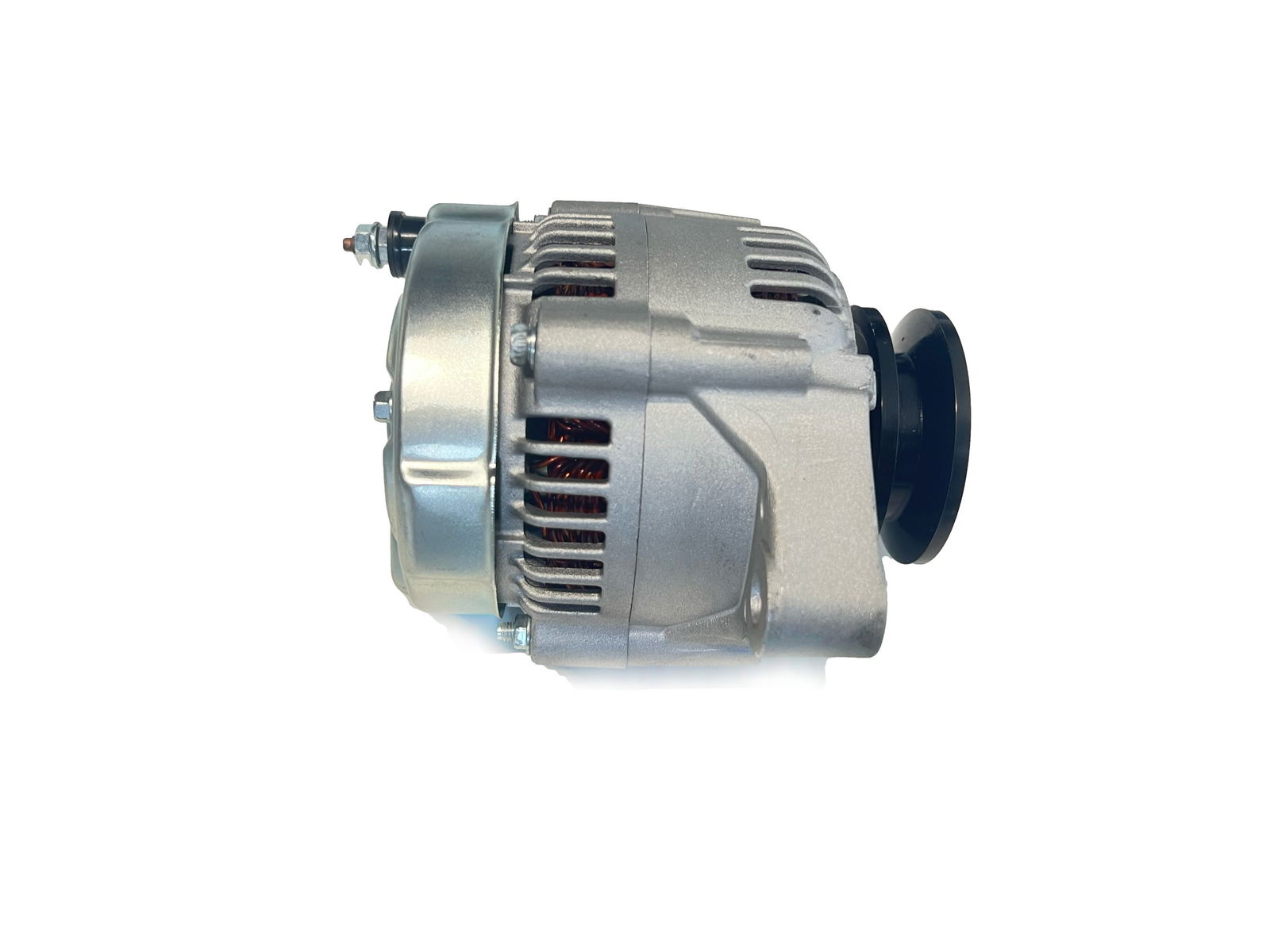

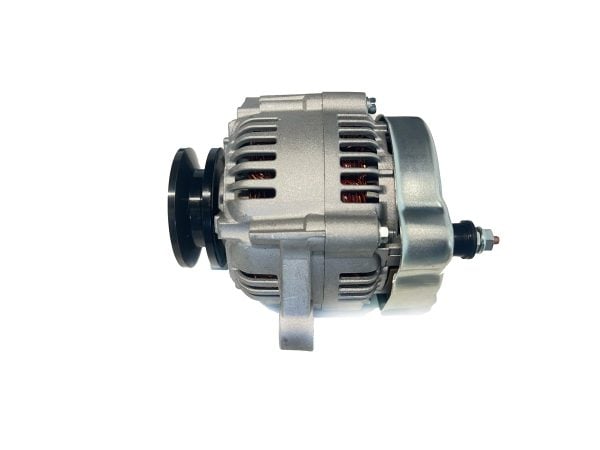

Alternatore Kubota B1550 – B7610 | F2260 – FZ2400 | L2500 – L3400 | Toro 228 – 595

Descrizione

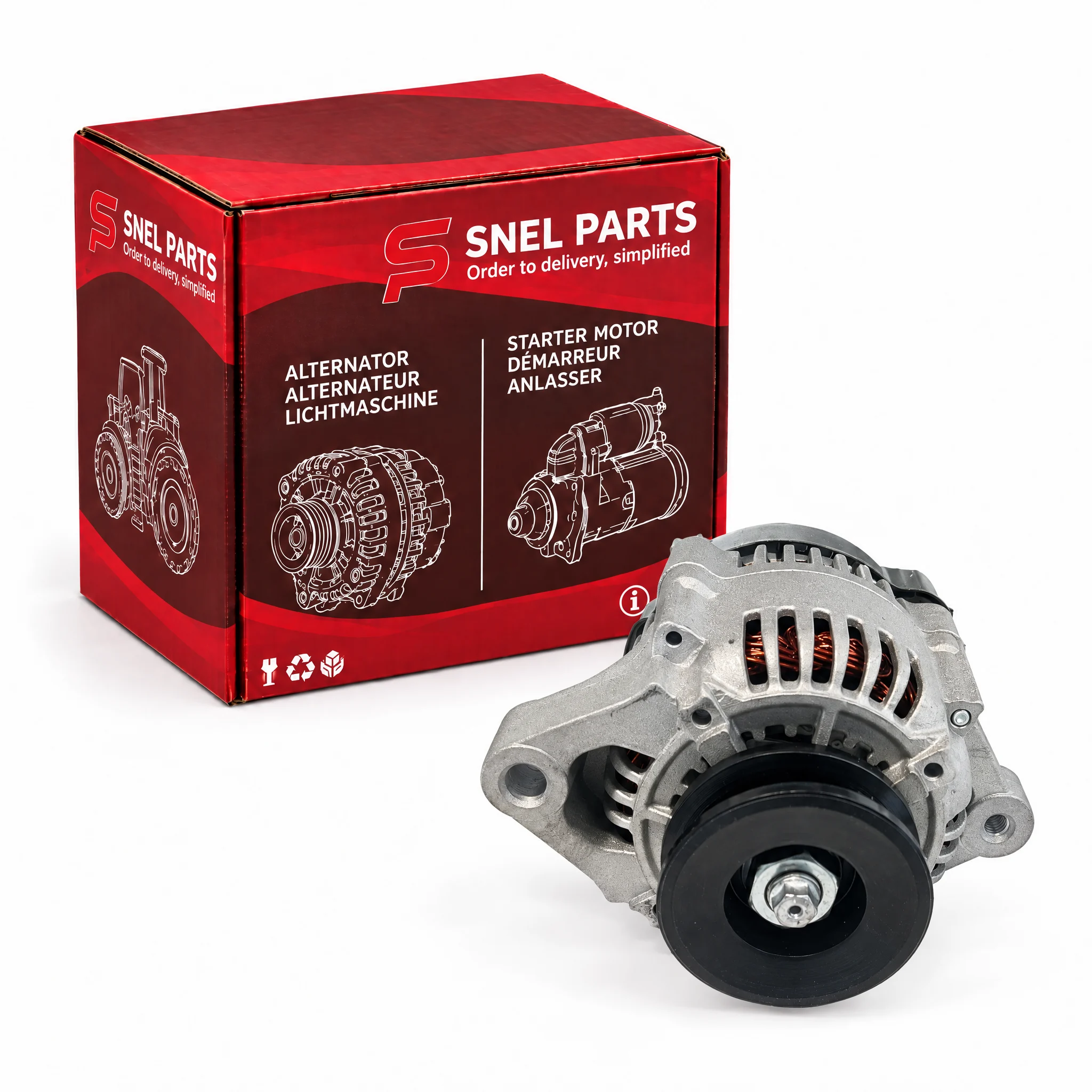

Qualità premium Snel Parts. Prodotto nei nostri stabilimenti, garantendo così direttamente la qualità. Gli avvolgimenti in rame sono più robusti rispetto allo standard del mercato aftermarket e resistono meglio a carichi prolungati e correnti di carica elevate. Consegnato nella confezione Snel Parts.

L'alternatore è fornito da un fornitore certificato e testato in modo completo. I modelli compatibili sono stati selezionati con la massima cura!

Dati tecnici

• Tensione (V) 12
• Amperaggio (A) 40
• Puleggia a ruota libera No

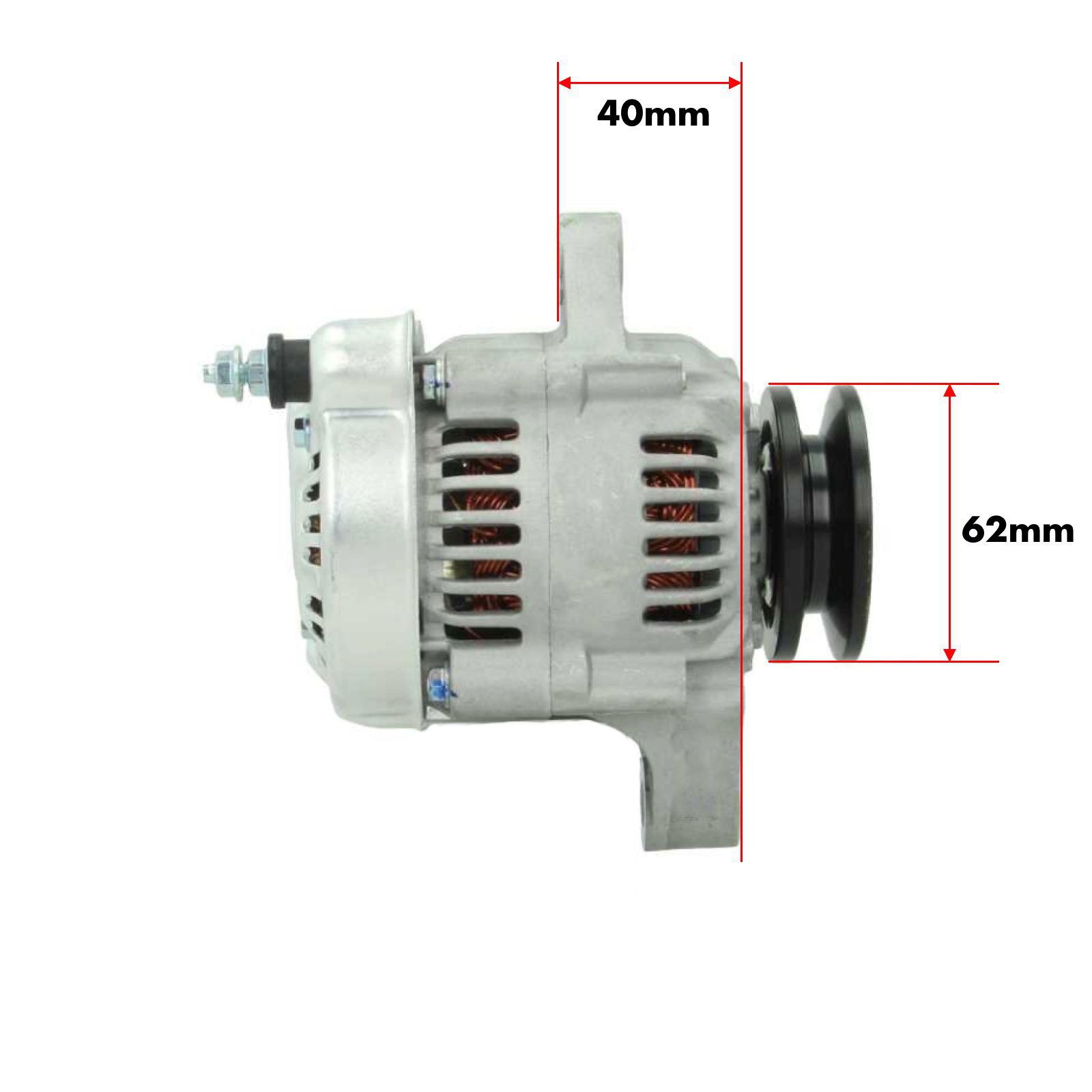

• Diametro puleggia (mm) 63,0
• Numero di scanalature 1
• Attacco B+ M6

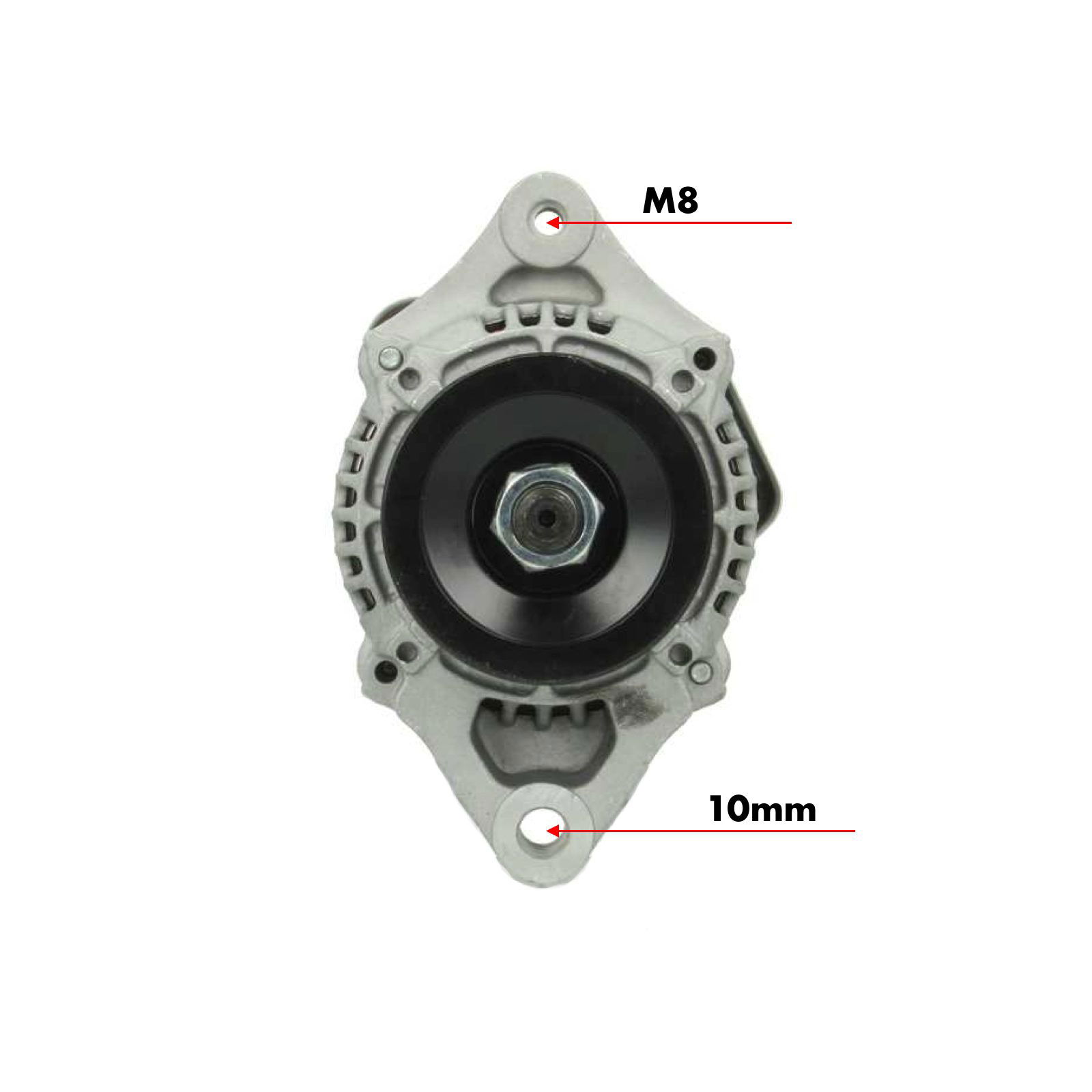

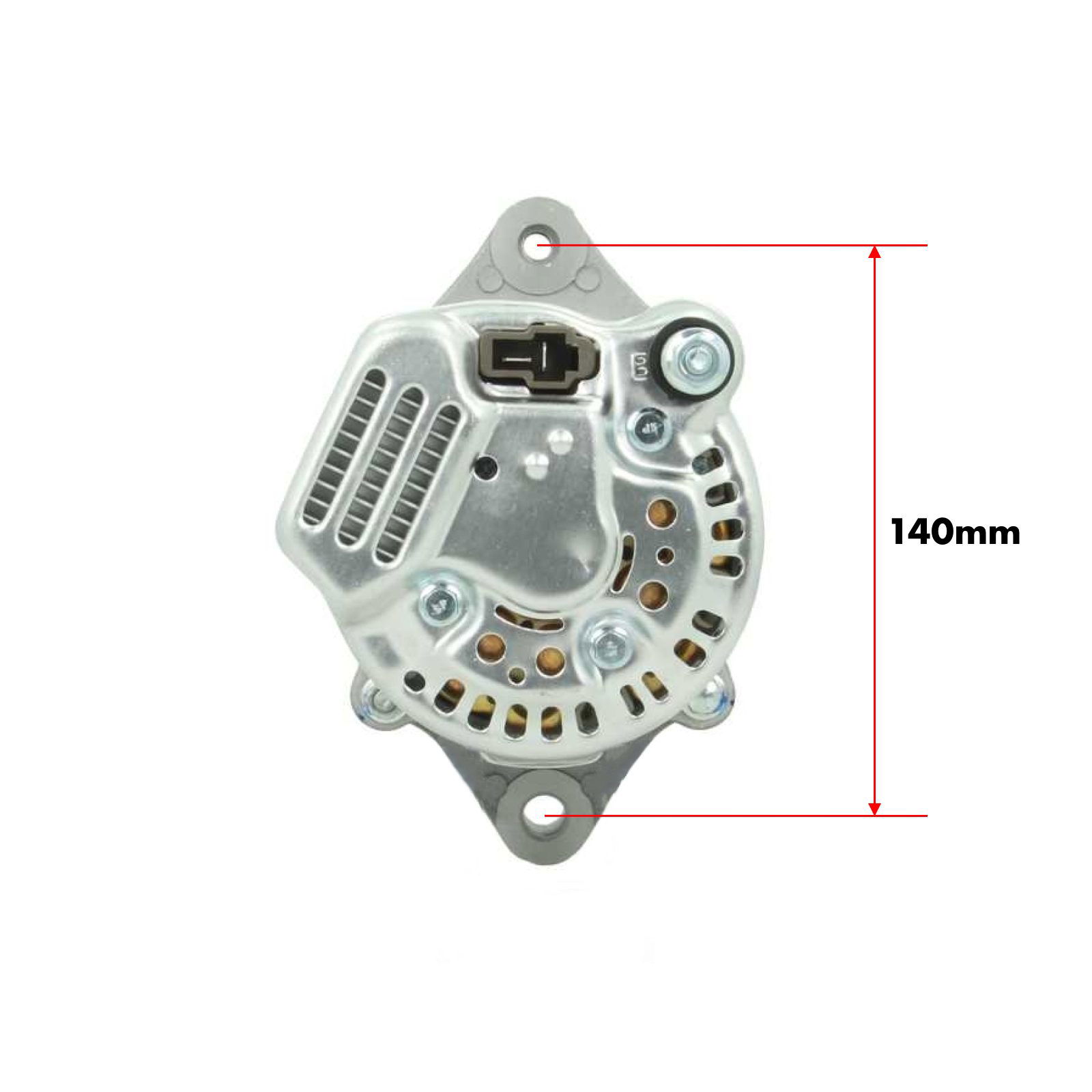

• Numero di fori di montaggio 2
• Posizione (°) 180

Motore Kubota

• D850, D950, V1200, D1005, D1105-D10, D1105-E2-UV, D1005-E, D1105-E, D1005-EFM, D1105-FM
• V1305-FM, D905-FZ, D1105-F, D782, WG752, F2803B, D1703, D1703-E, V2203, V2203E, F2803, F2803E, V2203BH, V2203EBH, V2203MEBH, D1105BH
• D902EBH, V1505BH, V1505EBH, D1503-MEBH, D1403-AE, D1403-ME2A, D1503LA, D1503-ELA, D1503LAN, D1503-MAE-GST, D1703-M-E2, D1703A, D1703-MAE2A, D1703-MAE
• D1803-M-E2, D1703TLB, V1903A, V1903AN, D1803-ME, D1803-TLB, V2006-M-E2, V2203A, V2203-M-E2, V2203AN, V2203-MAE, V2203-ME2A, V2203EHA, V2203-MBE, V2403-M-E2, V2403
• V1305, D1503T, D722E-GX

Motore Komatsu

• 3D75

Avant

• R28, 528, 630

Beta Marine

• Beta 25

Eurotrac

• W11 K26, W11, K33

Hinomoto

• NX220, NX22, NX240, NX241, NX260, NX268, NX280, NX300, NX320, NX338

Kubota

• A-17, A-175
• B1550DT, B1550DTEX, B1550E, B1550HSD, B1550HSDT, B1550HSE, B1750DT, B1750E, B1750HSD, B1750HSDT, B1750HSE, B2150DT, B2150DTB, B2150E, B2150HSD, B2150HSDT, B2150HSDTB, B2150HSE, B21TL, B21TLB
• B2400HST-D, B2410HSD, B26, B7500HSD, B7510DT-F, B7510DT-R, B7510DTN-R, B7510HSD-F, B7510HSD-R, B7610HSD-F, B7610HSD-R
• F2260-R, F2400, F2560-E, F2560-R, F2880, F2880-E, F3060-R, F3680, FZ2100, FZ2400
• G2160, G2160-R48S, G2460G, GV3250Q-SW
• GL220, GL221, GL240, GL241, GL260, GL268, GL280, GL300, GL320, GL338
• KJS130D, KJS130DX, KJS150V, KJS150VX, KJT210V, KJT210VX, KJT270FSW, KJT270FX-SW
• KX121-2, KX121-2S, KX121-3, KX121-3R3, KX121-3R4, KX121-3R4A, KX121-3S3, KX121-3S4, KX121-3S4A, KX161-2, KX161-2S, KX161-3R1, KX161-3R2, KX161-3S1, KX161-3S2, KX41, KX41-2, KX41-2S, KX41-2SV, KX41-3, KX61-2, KX61-2S, KX71H, KX91-2, KX91-2S, KX91-3
• L2500DT, L2500F, L2600DT, L2600F, L2800DT-F, L2800DT-R, L2800F-F, L2800F-R, L2800HST, L2900DT, L2900DTGST, L2900F, L2900GST, L3000DT, L3000F, L3010DT, L3010F, L3010GST, L3010HST, L3130DT-F, L3130DT-R, L3130F-F, L3130F-R, L3130GST-F
• L3130GST-R, L3130HST-C, L3130HST-F, L3130HST-R, L3240F, L3240GST, L3240HST, L3240HSTC, L3300DT, L3300DTGST, L3300F, L3300GST, L3400DT-F, L3400DT-R, L3400F-F
• L3400F-R, L3400HST, L3410DT, L3410GST, L3410HST, L3430DT-F, L3430DT-R, L3430GST-F, L3430GST-R, L3430HST-F, L3430HST-R, L3540GST, L3540HST, L3540HSTC
• L35TL, L35TLB, L3600DT, L3710GST, L3710HST, L3830DT-F, L3830DT-R, L3830F-F, L3830F-R, L3830GST-F, L3830GST-R, L3830HST-F, L3830HST-R, L39, L3940DT, L3940GST, L3940HST
• L3940HSTC, L4200DT, L4200GSTCA, L4240DT, L4240GST, L4240HST, L4240HSTC, L4300DT, L4300F, L4310DT, L4310F, L4310GST, L4310HST, L4330DT-F, L4330DT-R
• L4330GST-F, L4330GST-R, L4330HST-F, L4330HST-R, L4400DT, L4610GST, L4610HST, L4630DT-F, L4630DT-R, L4630GST-F, L4630GST-R, L4630HST-F, L4630HST-R, L4740
• L48TL, L48TLB, MX5000DT, MX5000F, R310, R420, R420BU-1A, TG1860, TG1860G, U35 R1, U35 R2, U35 S1, U35 S2, V1200N

TORO

• Groundsmaster 228D, Groundsmaster 3280-D, Groundsmaster 328D, Groundsmaster 3500-D, Groundsmaster 7200, Groundsmaster 7210
• Reelmaster 3100-D, Reelmaster 5200-D, Reelmaster 5210, Reelmaster 5400-D, Reelmaster 5410, Reelmaster 5500-D, Reelmaster 5510
• Reelmaster 5610, Reelmaster 6500-D, Reelmaster 6700-D, Z580-D Z Master, Z593-D Z Master, Z595-D Z Master

Schäffer:

• 2020S.
• 2024, 217S, 221, 222
• 2336, 2336 SLT, 2345, 2345 SLT, 2436
• 2436 SLT, 2445 SLT, 2445 T, 2445, 3036, 3036e, 3036 SLT, 3038, 3038e, 3038 SLT, 3045, 3045e, 3045 SLT
• 4048, 4048e, 4050 Z, 4050 ZL, 4050 ZL T, 4050, 4050 T, 5050, 5050 T, 5060, 5060 T, 660 T, 668 T, 861 T, 963 T, 964 T

Dati tecnici

• 45A, 12V

Riferimento OEM

• T106015602 Kubota
• T106515602 Kubota
• T106515682 Kubota
• T185015682 Kubota
• 3407075600 Kubota
• 3407075601 Kubota
• 3407075602 Kubota
• 5H73042500 Kubota
• 5H73042502 Kubota
• 5H73042503 Kubota
• 6643664011 Kubota
• 6683144 Bobcat
• A6358, 15881-64200, 15881-64201, 15881-64202
• 16231-24011, 16231-64011, 16231-64012, 16241-64010, 16241-64011, 16241-64012, 16241-64013, 16241-64014, 16241-64015
• 16705-64011, 16705-64012, 16791-64011, 185046220, 27060-87201-000, 27060-87202-000
• 27060-87502-000, 27060-87801-000, 34070-75600, 34070-75601, 34070-75602
• 3A011-74012, 600-821-2350, 66436-64011
• KRAMER 0000803922, 1000087636, 2000803922
