Clutch Kit Iseki TU1400 – TU1601 | TU120 – TU177 | SIAL3 – 20 | TM17

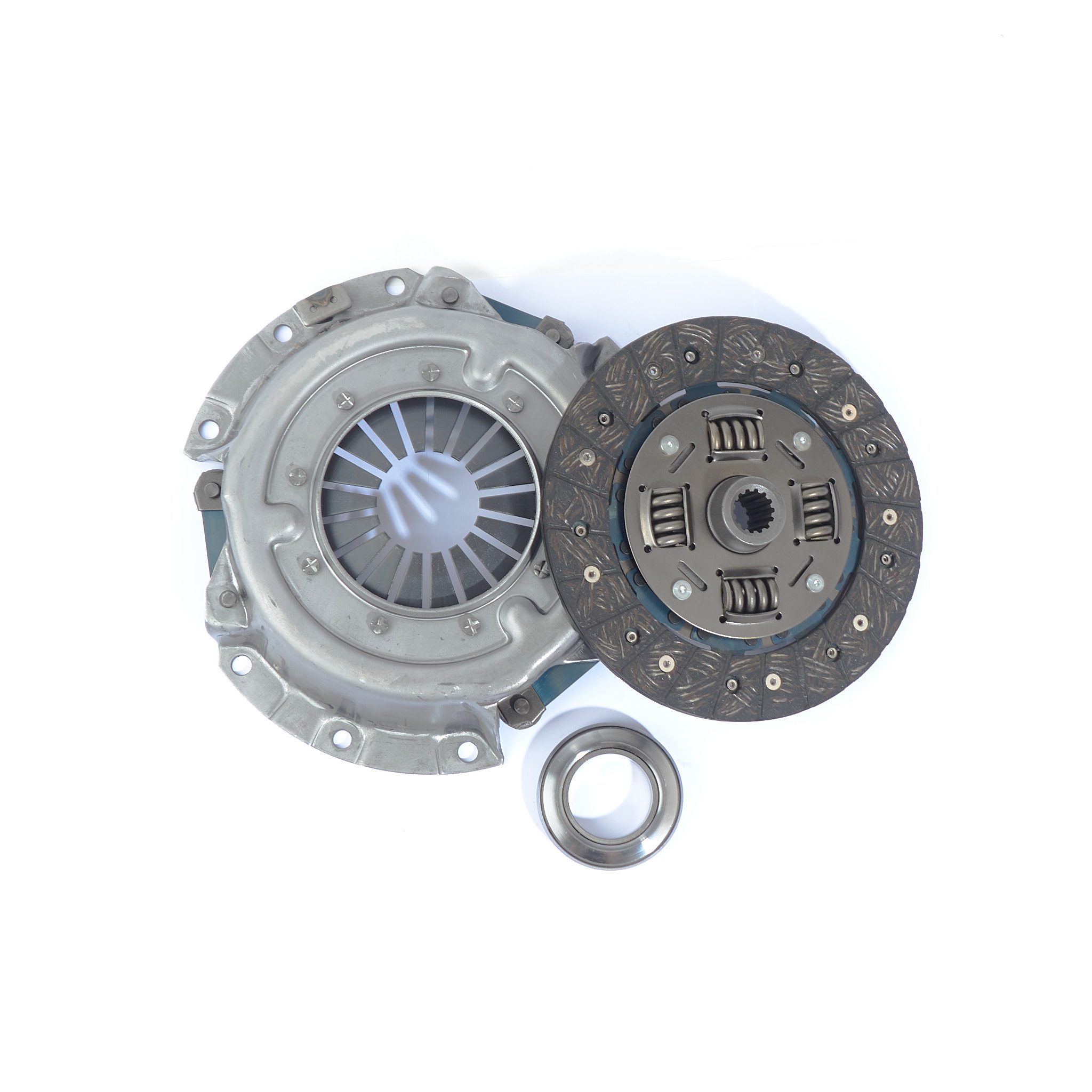

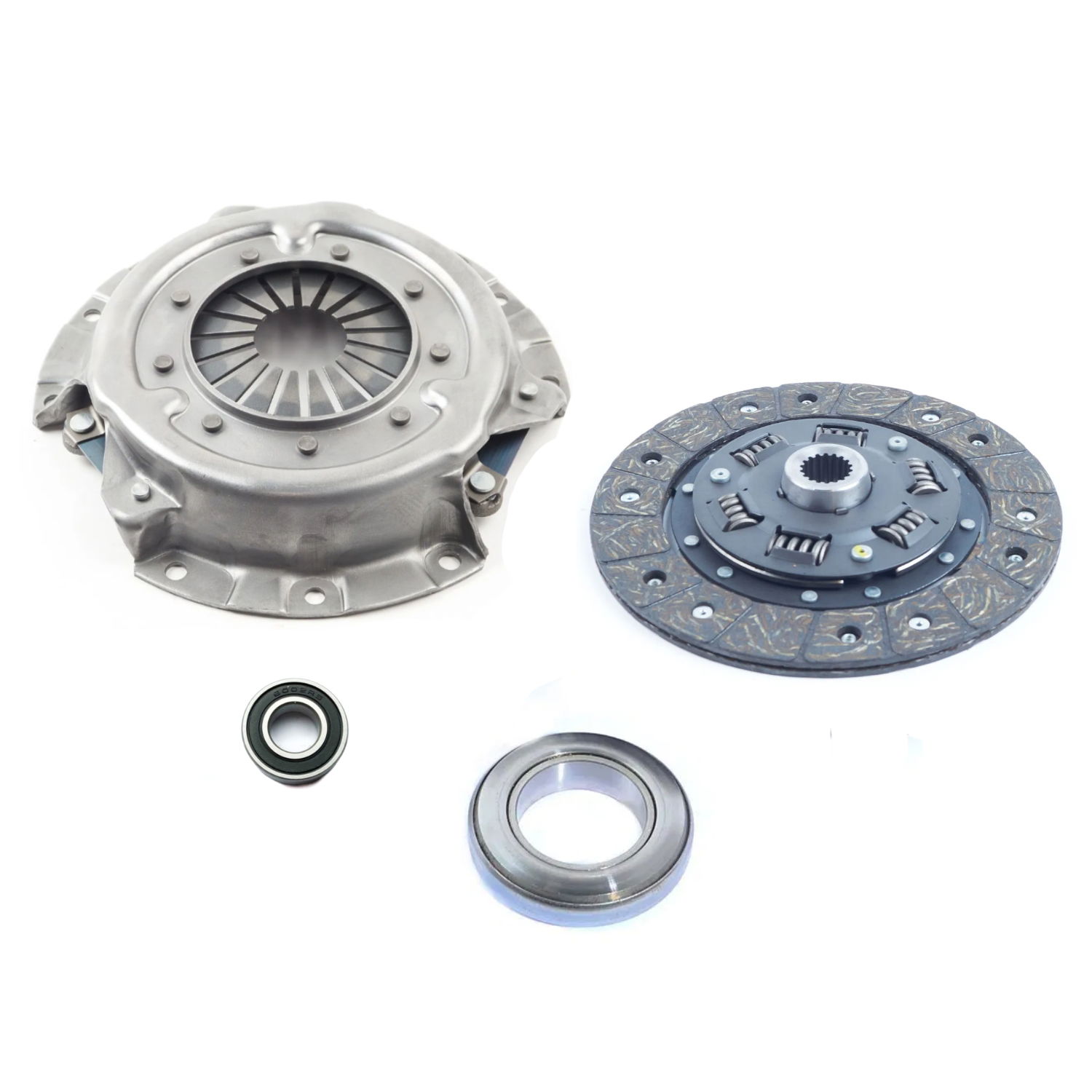

Clutch Kit including pilot bearing – Compact, complete and smooth shifting

This clutch set is carefully assembled for reliable and smooth transmission of engine power.

✅ Extra sturdy design for the Iseki TU and TF series

✅ Due to age, it’s important to replace everything, and this complete set takes care of that!

✅ Including release bearing – ready for installation

✅ The pilot bearing is often forgotten during a clutch overhaul, but it is strongly recommended to always replace it with a new clutch.

Contents and technical specifications

Pressure plate

• Diameter: 185 mm (7.25″)
• Construction: Solid, low-maintenance design

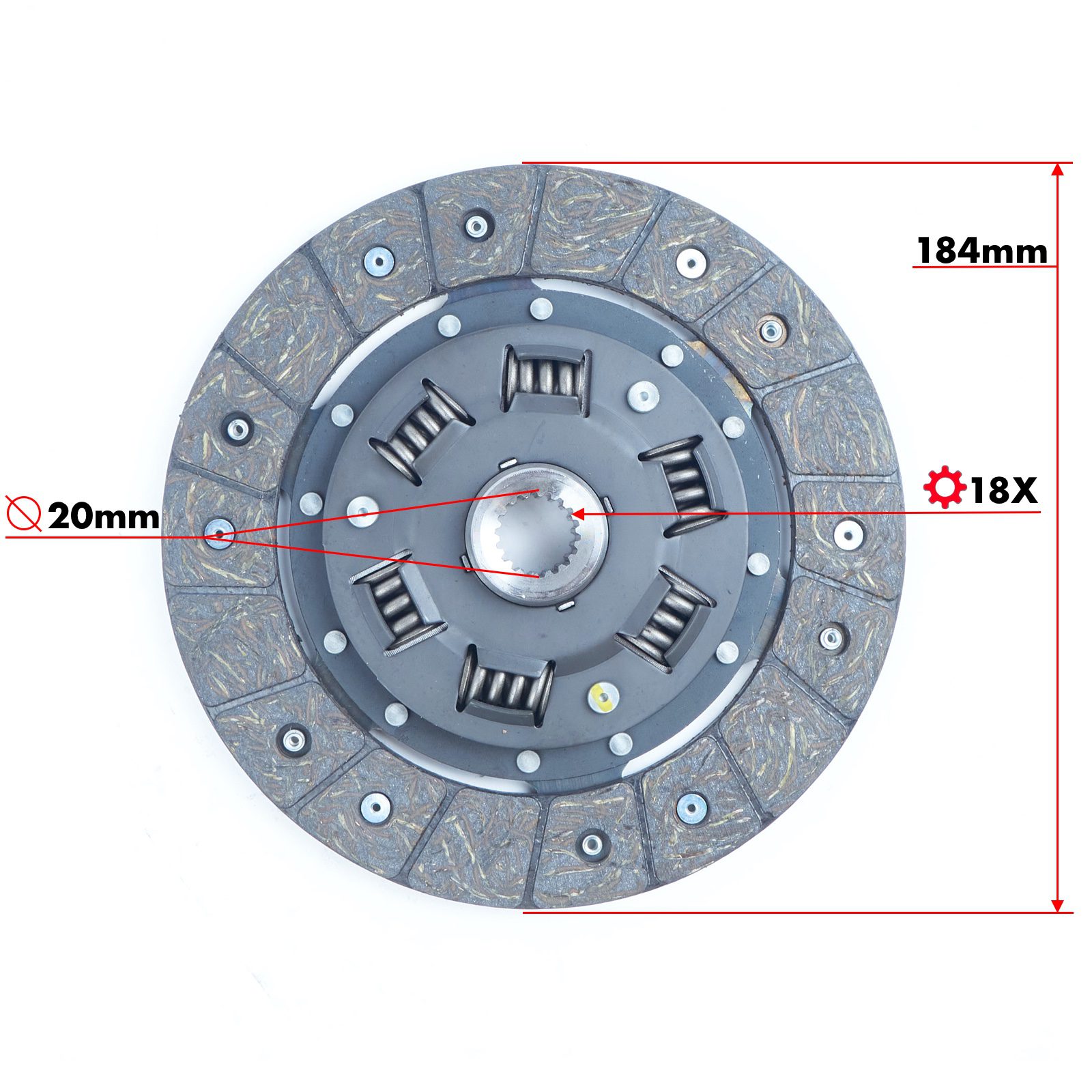

Clutch Plate

• Diameter: 184 mm (7.24″)
• Number of splines: 18
• Shaft size: suitable for 18-spline input shaft
• Friction material: Organic

• Core: Sprung – for better shock absorption and drivetrain protection

Release bearing

• Outer diameter: 67 mm
• Inner diameter: 38 mm
• Thickness: 16 mm

Iseki

• Landhope TU120, TU130, TU135, TU137, TU140, TU147, TU145, TU150, TU155, TU157, TU160, TU167, TU165, TU170, TU175, TU177
• TU120F, TU130F, TU135F, TU137F, TU140F, TU147F, TU145F, TU150F, TU155F, TU157F, TU160F, TU167F, TU165F, TU170F, TU175F, TU177F
• TU1400, TU1400F TU1500, TU1500F TU1600, TU1600F TU1401, TU1501, TU1601
• TU318
• Sial 3, TF3, Sial 5, TF5, Sial15, TF15, Sial 20, TF20,
• TM17
• THS16, THS18, THS20 – SIAL HUNTER
