Frizione a cuscinetto pilota | ABC3149 | Allis Chalmers | Challenger | Farmtrac | Jinma | Bianco

Descrizione

Cuscinetto pilota – Cuscinetto guida – Precisione e durata

Cuscinetto pilota di alta qualità adatto a diversi trattori mini. Progettato per un funzionamento regolare e un allineamento preciso dell “albero motore. Realizzati con materiali resistenti all” usura per una lunga durata.

✅ Riduce l’usura della trasmissione

✅ Vestibilità e funzionalità affidabili

Ideale come ricambio durante la revisione o l’assistenza alla frizione.

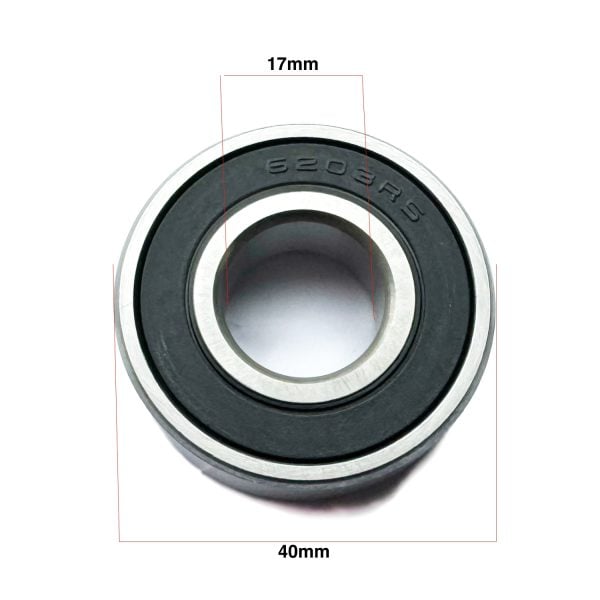

Specifiche tecniche:

• Diametro interno (ID): 0,669″ (17 mm)
• Diametro esterno (OD): 1,575″ (40 mm)
• Larghezza: 0,472″ (12 mm)
• 17x40x12

Adatto ai seguenti modelli

Agco

– LT70, LT85, ST35, ST45

Allis Chalmers

• 160, 5020, 5030, 6040, 8745, 8765
• LT70, LT85
• ST45, ST55

Challenger

– MT444, MT454, MT455, MT464, MT465

Farm Pro

– 2010, 2420, 2425, 2430, 2435, 2510, 3010, 4010

Farmtrac

– 35, 45, 50, 60, 435, 535, 545, 555

Guado

• 1801, 1811, 1821, 1841, 1871, 1881, 2000 (3 e 4 cilindri), 2030, 2031, 2100, 2110, 2111, 2120, 2130, 2131, 2150, 2300, 230A, 231, 2310, 233, 234, 250C
• 2600, 260C, 2610, 2810, 2910, 2N, 3000, 3055, 3100, 3120, 3190, 3200, 3230, 3300, 3310, 333, 3330, 334, 335, 340, 3400, 340A, 340B, 3415, 3430, 345, 345C, 345D, 3500, 3550, 3600, 3610, 3630, 3900, 3910, 3930, 4000 (3 E 4 cilindri), 4100, 4110, 4130, 4140, 420, 4200, 4330, 4340, 4400, 4410, 445, 445A, 445C,
• 445D, 450, 4500, 455, 455C, 455D, 4600, 4610, 4630, 4830, 5000, 501, 5030, 5100, 5110, 515, 5190, 5200, 530A, 531, 532, 5340, 535, 540, 540A, 540B, 541, 545, 545A, 545C, 545D, 550, 555, 555A, 555B, 600, 601, 611, 620, 621, 630, 631, 640, 641, 650, 651, 655, 655A, 660, 661, 700, 701, 741, 771, 800, 801,
• 811, 820, 821, 840, 841, 850, 851, 860, 861, 8N, 900, 901, 941, 950, 951, 960, 961, 9N

IMT

– 533, 535, 539, 540, 542, 545, 547, 549, 550, 560, 565, 569, 577

Iseki

• TD4410, TD4450, TD4451, TE4270, TE4320, TE4370
• T5000, T6000, T6500, T7000, T9000

Jinma

– JM180, JM184, JM200, JM204, JM250, JM254, JM284, JM304, JM354, JM404, JM454, JM504, JM554, JM704, JM754

John Deere

• 1050, 1250, 1450, 1650, 2025R, 2030, 2150, 2155, 2240, 2255, 2350, 2355, 2355N, 2440, 2510, 2520, 2550, 2555, 2630, 2640, 3010, 3020, 4000, 4010, 4020, 4040, 4230, 4240, 4320, 4430, 4440, 4520, 4620, 4630, 4640, 4840, 5010, 5020, 5036C, 5038D, 5041C, 5045D, 5045E, 5050E, 5055D, 5055E, 5060E,
• 5065E, 5075E, 5075EF, 5076E, 5076EF, 5076EL, 5078E, 5080G, 5080GF, 5080GV, 5082E, 5083E, 5083EN, 5085E, 5090E, 5090EH, 5090EL, 5090G, 5090GF, 5090GH, 5090GV, 5093E, 5093EN, 5095E, 5100E, 5100GF, 5100GV, 5101E, 5101EN, 5103, 5103E, 5103S, 5104, 5105, 5200, 5203, 5204, 5205, 5210,
• 5215, 5215F, 5215V, 5220, 5225, 5300, 5300N, 5303, 5310, 5310N, 5310S, 5315, 5315F, 5315V, 5320, 5320N, 5325, 5325N, 5400, 5400N, 5403, 5410, 5410N, 5415, 5415H, 5420, 5420N, 5425, 5425N, 5500, 5500N, 5503, 5510, 5510N, 5515, 5515F, 5515V, 5520, 5525, 5525N, 5600, 5603, 5605, 5610, 5610T, 5615,
• 5615F, 5615V, 5625, 5700, 5705, 5715, 5715HC, 5725, 5725N, 6415, 6425, 7020, 870, 950, 970, 990
• 300B, 301A, 302, 302A, 310, 310A, 310B, 350, 350B, 350C, 350D, 380, 400G, 401B, 401C, 401D, 410, 450B, 450C, 450D, 450E, 455D, 455E, 480A, 480B, 480C, 500, 500A, 500B, 500C, 510, 600, 740, 740A, 743, 743A, 760, 770, 770A, 772A

Kubota

– L3750, L3750DT, L4150, L4150DT, L4850, L4850DT, L5450, L5450DT, M4000, M4030, M4050, M4500, M4950, M5030, M5850

Massey Ferguson

• Super 90, TE20, TEA20, TO20, TO30, 1010, 1080, 1085, 1125, 1140, 1145, 1160, 1165, 1180, 1190, 1240, 1250, 1260, 135, 1445, 1455, 1455V, 150, 158, 165, 175, 178, 180, 205, 210, 230, 231, 231S, 235, 240, 240P, 240S, 241S, 243, 245, 250, 251XE, 253, 255, 2600, 2605, 261, 263, 265, 2680, 270, 271, 271X,
• 271XE, 275, 281, 281XX, 281XE, 282, 283, 285, 285S, 290, 298, 3165, 320, 35, 350, 355, 360, 362, 365, 375, 383, 390, 390T, 393, 396, 398, 399, 40, 4215, 4220, 4225, 4233, 4235, 4240, 4243, 4245, 4253, 4255, 4260, 4263, 4265, 4270, 431, 4325, 4335, 4345, 4355, 4360, 4370, 451, 461, 471, 481, 491, 492, 50, 533,
• 543, 563, 573, 583, 593, 596, 65, 670, 690, 698, 699, 85, 88

Industriale: 20, 202, 203, 204, 20C, 20D, 20E, 20F, 2135, 2200, 2500, 30, 302, 304, 30B, 30D, 30E, 30H, 31, 3165, 40, 40B, 40E, 4500, 50, 50A, 50C, 50D, 50E, 6500

Maverick

– 204

Nuova Olanda

• TC18, TC21, TC21D, TC21DA, TC23DA, TC24D, TC24DA, TC25, TC25D, TC29, TC29D, TC29DA, TC30, TC31DA, TC33, TC33D, TC33DA, TC34DA, TC35, TC35A, TC35D, TC35DA, TC40, TC40A, TC40D, TC40DA, TC45, TC45A, TC45D, TC45DA

Nortrac

– NT204, NT254, NT304, NT454

Tafe

– 25DI, 35DI, 45DI

Bianco

• Field Boss 21, Field Boss 31, Field Boss 37, Field Boss 43
• 2-30, 2-32, 2-35, 2-55, 2-62, 2-75, 6410, 6510

OEM per riferimento

• 836203, 81805417
• 6203-2RS
• 410 0020 00, 410002000
• 195174M1, 832953M94
• ABC3149
