Installing a hydraulic system on an Iseki mini tractor to connect a front loader is a valuable upgrade that will greatly increase the functionality of your tractor. Below you will find a step-by-step guide to successfully completing this process.
💶 Price overview: Front loader attachment to a mini tractor
A front loader on your mini tractor not only increases the versatility, but also the value of your machine considerably. Whether you want to move hay bales, shovel compost or move pallets — a front loader makes the job easier and faster. But how much does it cost exactly, and what should you look out for?
🏗️ of the Front Loader Yourself
There is a clear distinction between different quality classes of front loaders:
1. Premium front loaders
(like MX, Cochet or TENIAS from Spain )
-
Price indication: €2,500 – €3,500 (excl. VAT)
-
Features: Heavier construction, often including joystick controls, wider bucket, reliable cylinders, reliable hydraulic valves, easier to find accessories and (much) nicer finish.
-
Recommended for: Daily use, intensive work, professional work.
2. Budget front loaders
(e.g. Katana from Poland or Sanko)
-
Price indication: €1,600 – €2,200 (excl. VAT) – you also have quality distinction in models with these suppliers! This concerns the basic models that you see in the images below.
-
Features: Excellent entry-level quality, lighter construction, often supplied with a simple joystick.
-
Recommended for: Occasional use such as moving hay or gardening. Of which the Sanko and Katana have improved their quality in recent years!
🔧 Installation costs
Although it is technically possible to build a front loader yourself (and with this blog you can do it!), some users choose to outsource this work to a mechanic.
Labor costs mechanic
-
Price indication: €250 – €600
-
Time commitment: ± 5 to 6 hours for amateur and 2-4 hours for professional
-
Please note: This amount excludes parts and materials as mentioned above.
🧰 In addition to basic tools, a handy mechanic also needs a jack, impact wrench and lifting device to work safely and efficiently.
📋 Accessories required for attachment (besides the front loader itself)
|
Element |
Guide price (€) |
Remark |
|---|---|---|
|
Hydraulic valve (2 sections) |
€120 – €250 |
With or without joystick |
|
Hydraulic hoses (4 pieces) |
€80 – €150 |
Depending on length and connections |
|
Connection pieces + T-pieces |
€40 – €100 |
For splitting and connecting pipes |
|
Oil and small materials |
€30 – €60 |
O-rings, tape, filling oil |
|
Assembly assistance/support |
n/a |
This blog! 😉 |
🔧 Step-by-step plan: Connecting hydraulics for front loader on Iseki mini tractor
1.
Preparation and Safety
-
Switching off the tractor : Make sure the tractor is completely switched off and is on a level surface.
-
Relieve Pressure : Relieve any pressure in the hydraulic system to prevent accidents. For example, move the lift lever forwards and/or backwards.
-
Gather Tools : Have the proper tools and parts needed, such as hoses, fittings, valve block, oil pan, replacement oil, brake cleaner with rags, etc.
2.
Determine the Branch Points
-
Identify Pressure Line : Locate the high pressure line coming from the hydraulic pump; this is usually located under the seat or near the transmission
-
.
- In the past we did it ourselves from the hydraulic pump on an Iseki TA landleader tractor for example. You can choose to do this under the footstep, because you have more space for the connection here.
- Be careful not to leave any dirt in the lines ! This can cause plungers etc. in the hydraulic system to get stuck!
-
Locate Return Line : Identify the return line to the transmission. This will obviously be on the opposite side from the side you connected for pressure.
3.
Installing the Valve Block
-
Select valve block : Select a suitable valve block with at least two double-acting sections and a built-in pressure relief valve (max. 110 bar).
-

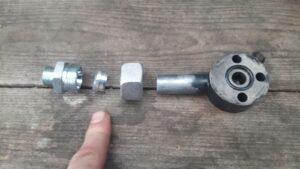

Connect to pressure line : Cut the pressure line and install a T-piece or coupling to connect the valve block.
-
Connecting the return line : Connect the return port of the valve block to the return line to the hydraulic reservoir.
4.
Connecting the Front Loader
-
Connecting hydraulic hoses : Connect the front loader hydraulic hoses to the valve block outlets. Make sure the hoses are connected correctly for the correct direction of movement.
-
Check confirmation : Check that all connections are tight and free of leaks.
5.
System Testing
-
Check oil level : Top up the hydraulic system if necessary and check the oil level.
-
Starting the Tractor : Start the tractor and operate the valve to test the front loader.
-
Check for leaks : Inspect all connections for leaks during operation.
🛠️ Tips and Recommendations
-
Maintenance : Replace hydraulic oil and filters regularly to maintain optimum performance.
-
Manuals : Please refer to the owner’s manual for your specific Iseki model for detailed information.
-
Professional advice : If in doubt, it is advisable to consult a specialist or contact us for additional advice!

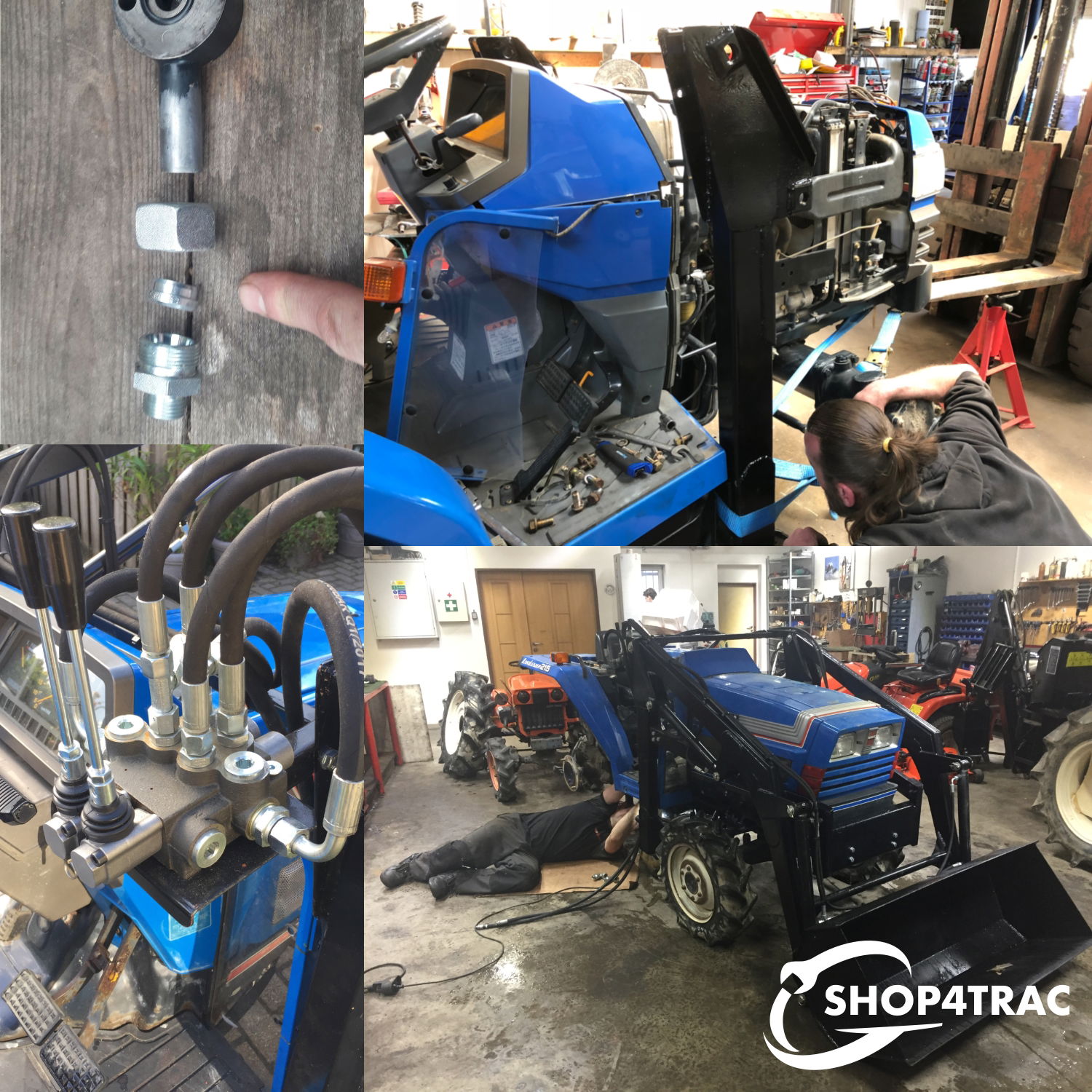

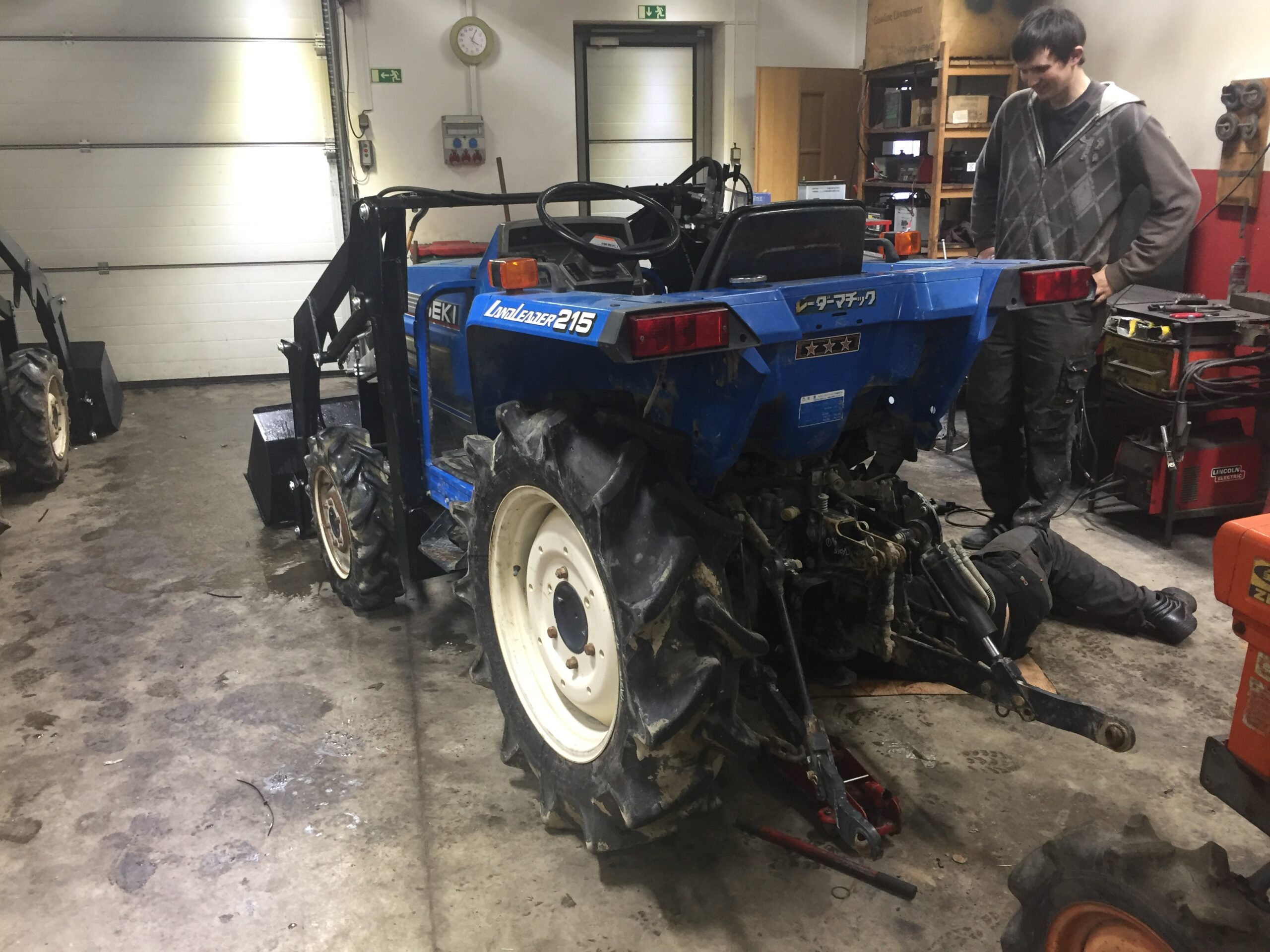

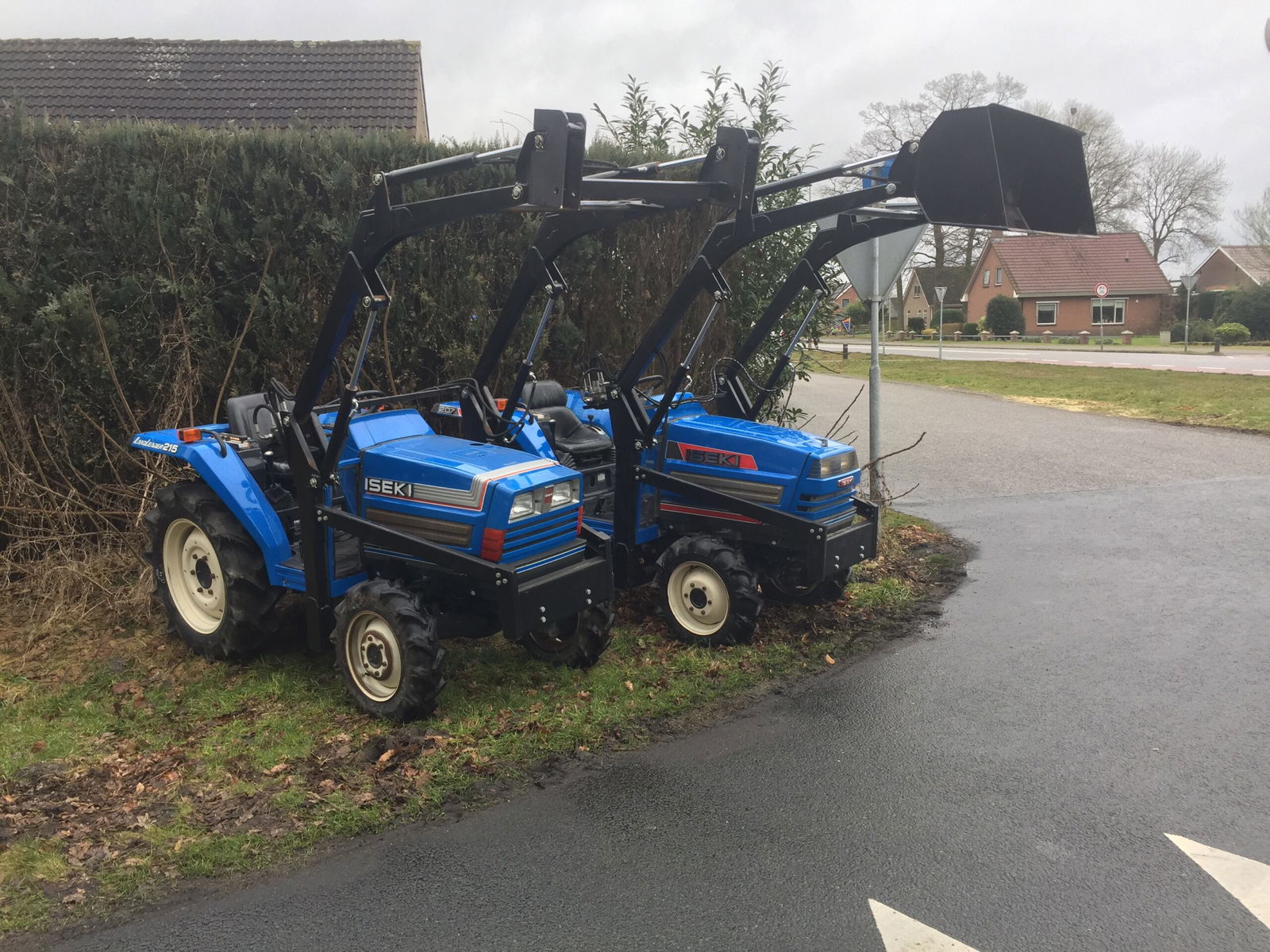

🛠️ Attaching a Front Loader to an Iseki Landleader
The Iseki Landleader is a compact and robust mini tractor, and is ideally suited for mounting a front loader. The mounting system you describe (with four bolts per side to the cabin rubber section and two reinforcement rods to the front) is a proven construction that ensures a sturdy, but relatively easy to realize mounting.
🔩 Step-by-step: Attaching the front loader to the chassis

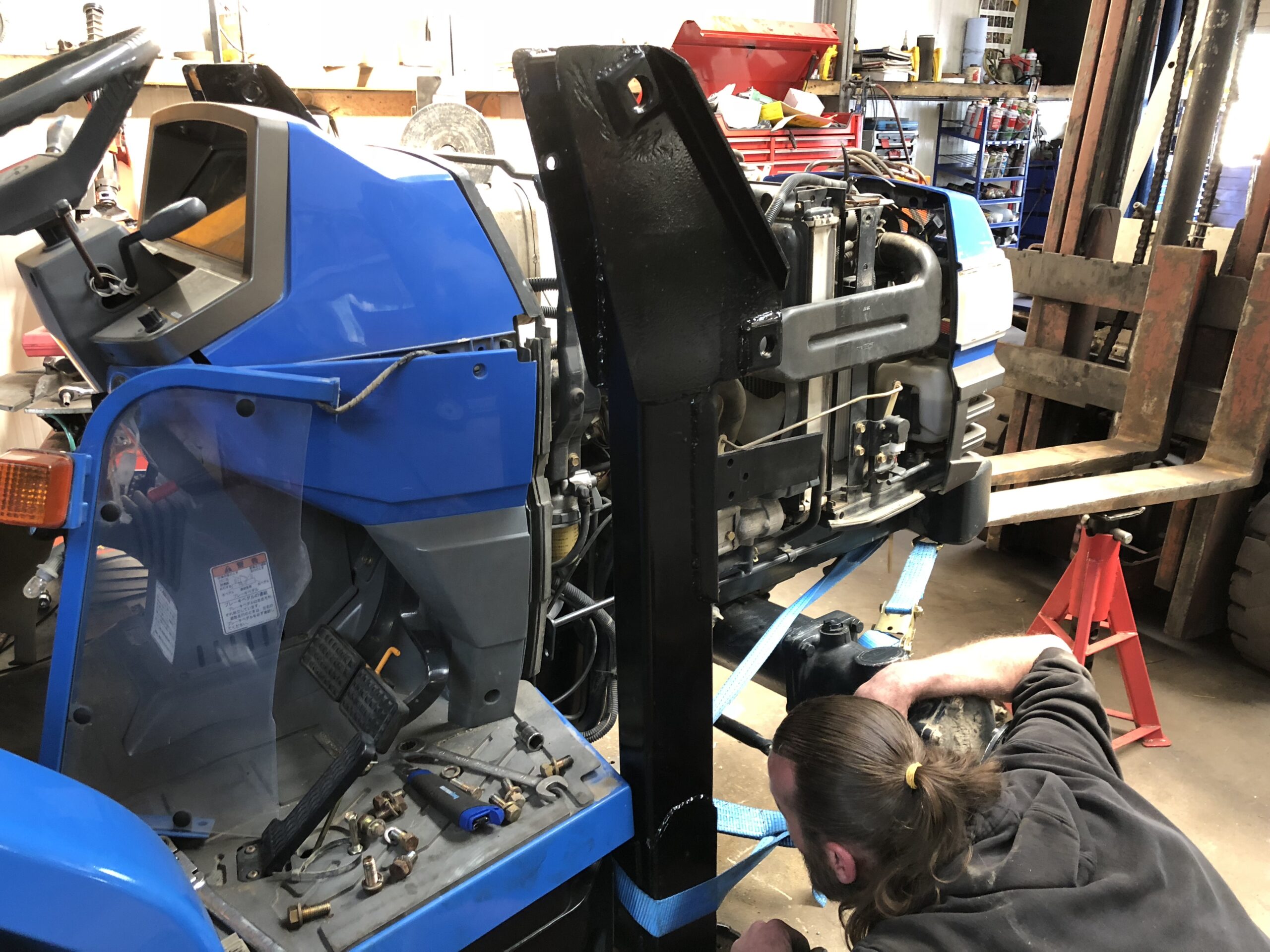

1. Positioning the mounting plates
-

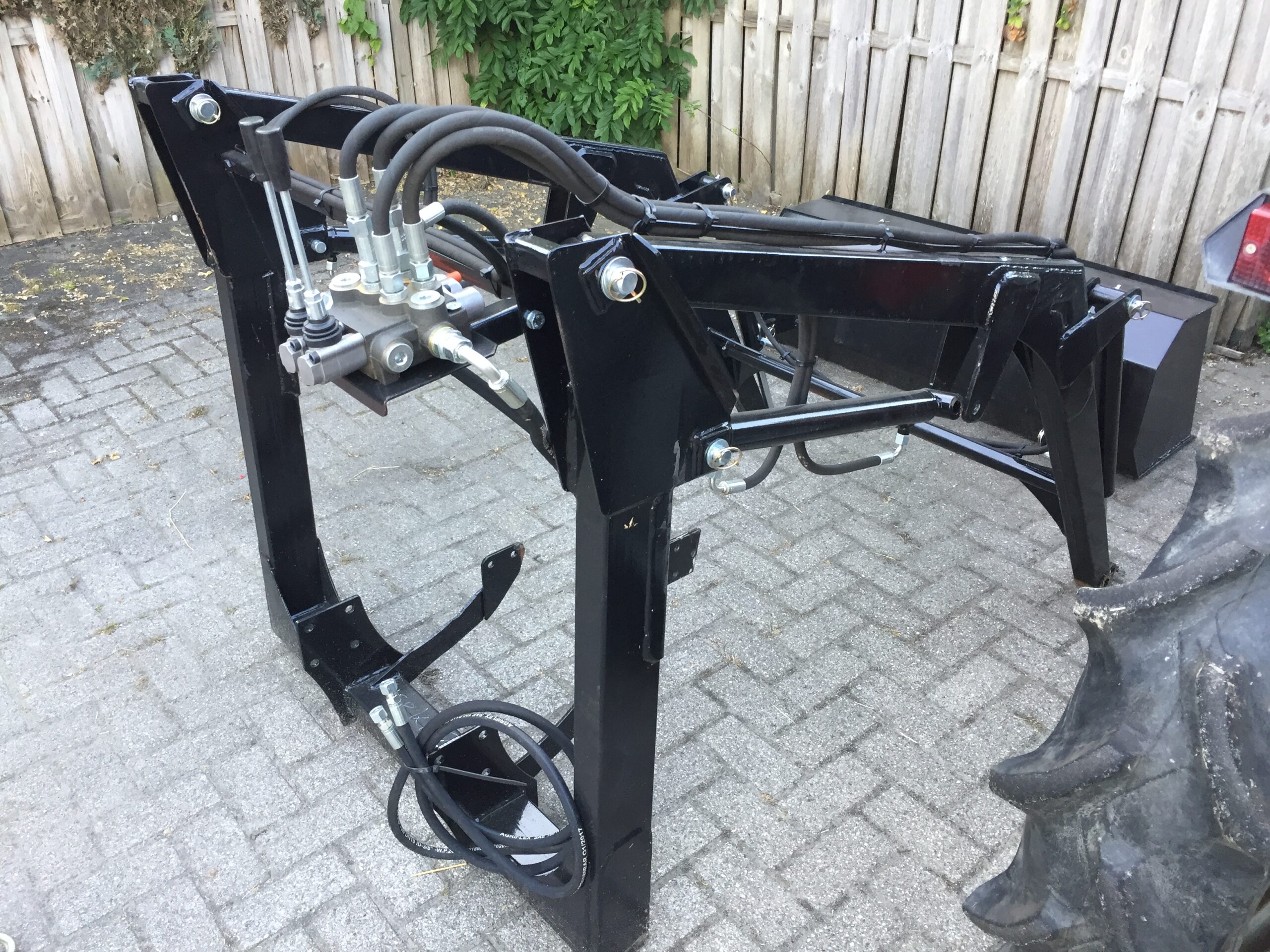

The front loader comes with sturdy U-shaped mounting arms (as shown in the photo).
-
Position these sides so that they fit exactly over the sides of the chassis, just in front of or around the cab rubber/footplate.
-
This location is ideal because the chassis is usually extra reinforced here and offers space for multi-bolt mounting.

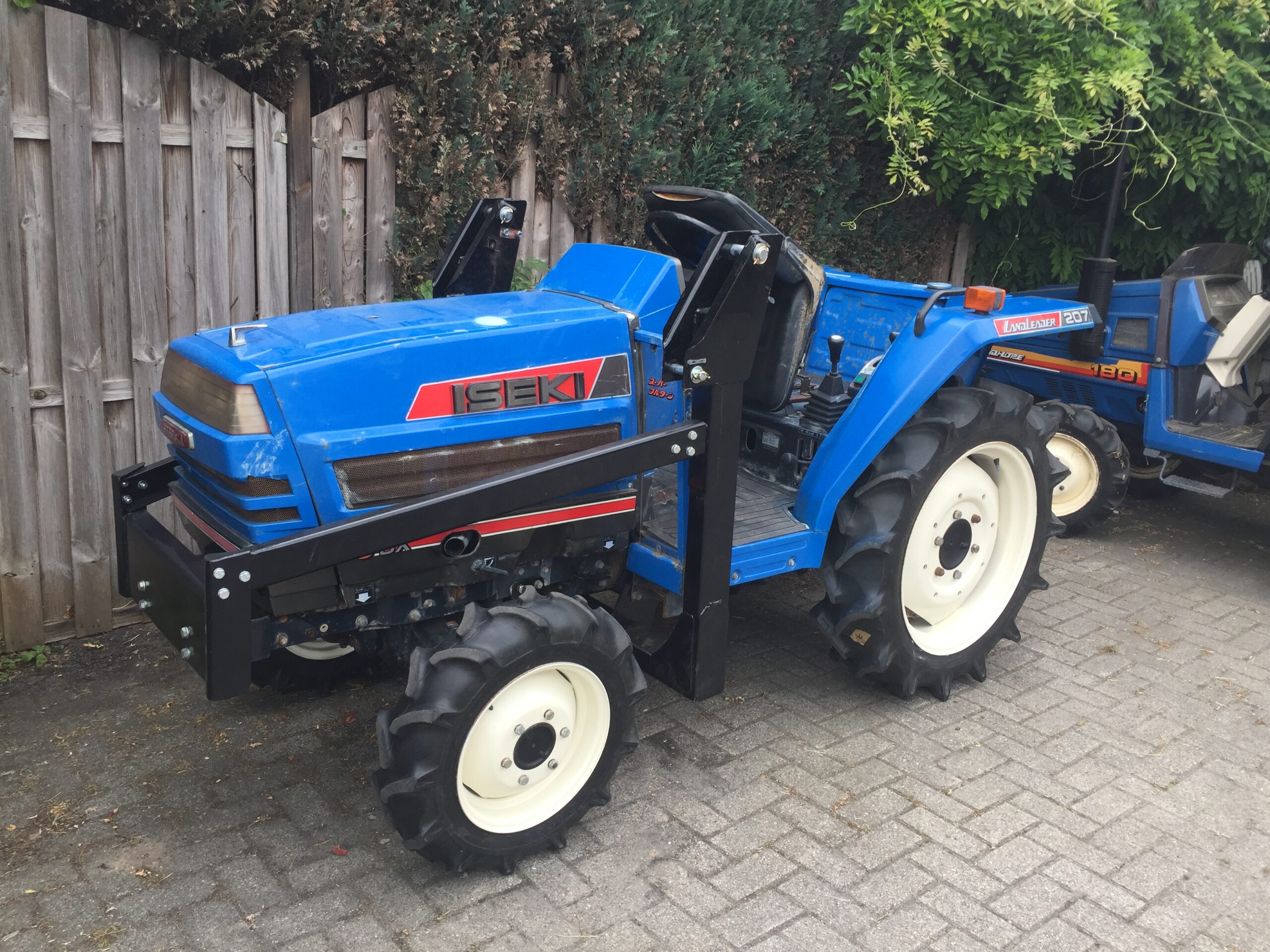

2. Fastening with 4 bolts per side
-
Each side of the front loader support is attached to the chassis with four bolts .

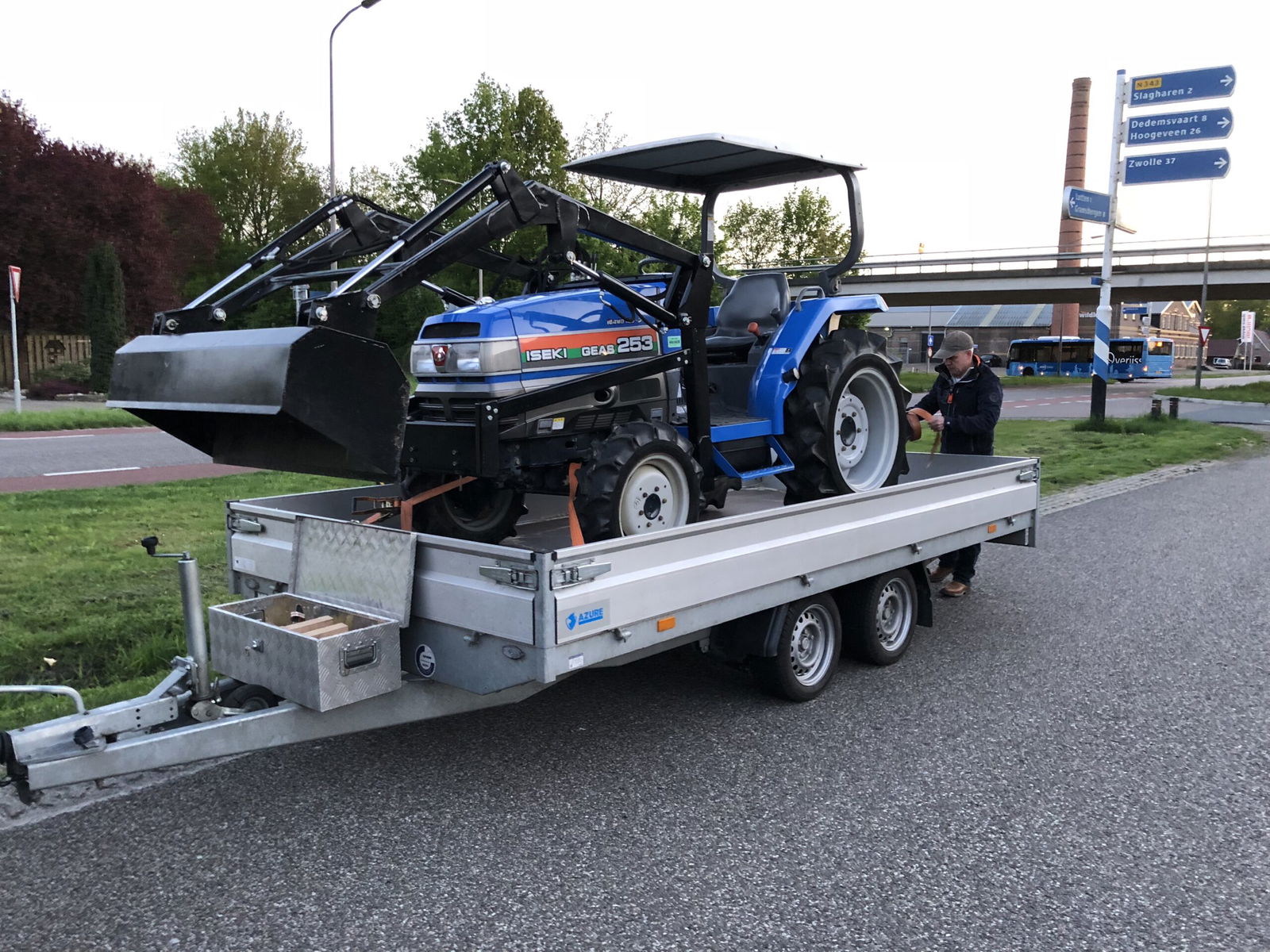

Sometimes it is a bit more difficult when there is no front loader available. This was in 2017 when a custom front loader had to be built for an Iseki GEAS.
3. Mounting the front support rods
-
At the front, two diagonal support rods run from the base frame to the front of the tractor, or front weight bar.
-
These bars provide extra stiffness and prevent the frame from bending backwards under heavy loads.
-
Secure them using existing bolt holes or reinforcement plates; preferably with an additional mounting plate on the inside of the chassis.

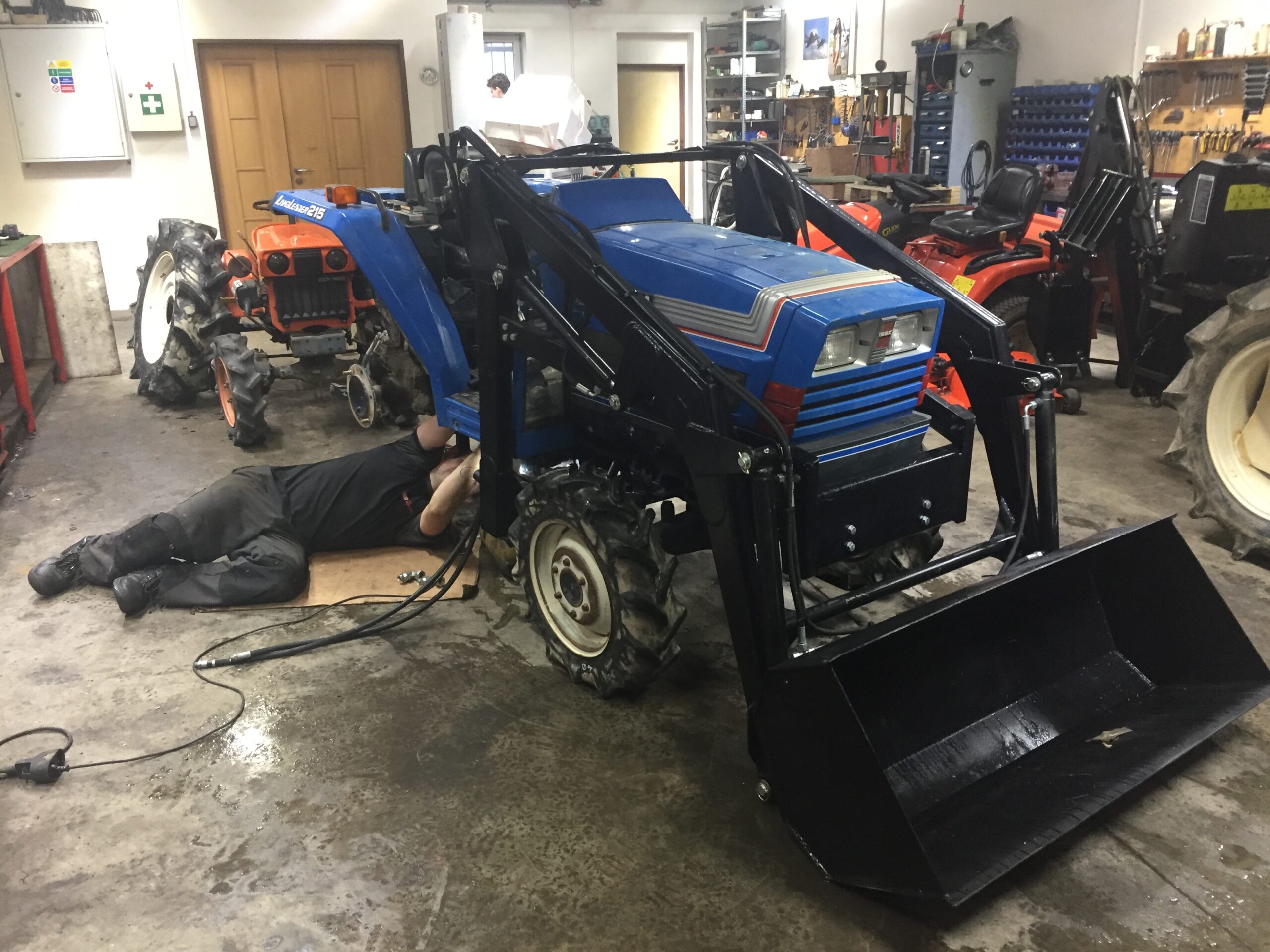

4. Checking the fit
-
After installation, check that the front loader moves freely and that there is no play or deformation when moving.
-
Use a hydraulic jack or lift arm to hold the loader in position while securing the bolts.
5.
Frame adjustment and fit check
-
Move the front loader arm up and down slightly by hand or with a hoist while checking for:
-
Sufficient space between the frame and the hood or exhaust.
-
No contact points with handlebars, brake lines or cables.
-
-
Check that the cylinders and arms are properly aligned — especially important for the long life of the hydraulic lines.
Summary of hydraulic connection
6.
Installing hydraulic lines
-
Pressure line from the pump : This comes from under the footplate or directly from the pump. Cut the line, fit a T-piece or quick coupling and connect the supply to the valve block.
-
Return Line to Transmission or Tank : Connect the valve block return port to the original return line or tap a new point toward the oil pan.
-
Working lines to cylinders : Connect the four hydraulic hoses to the valve block (2x lift and 2x tilt). Make sure they are long enough for the full reach of the arm, but not so long that they can kink.
-
Use hose clamps or brackets to keep the hoses tight against the frame.
7.

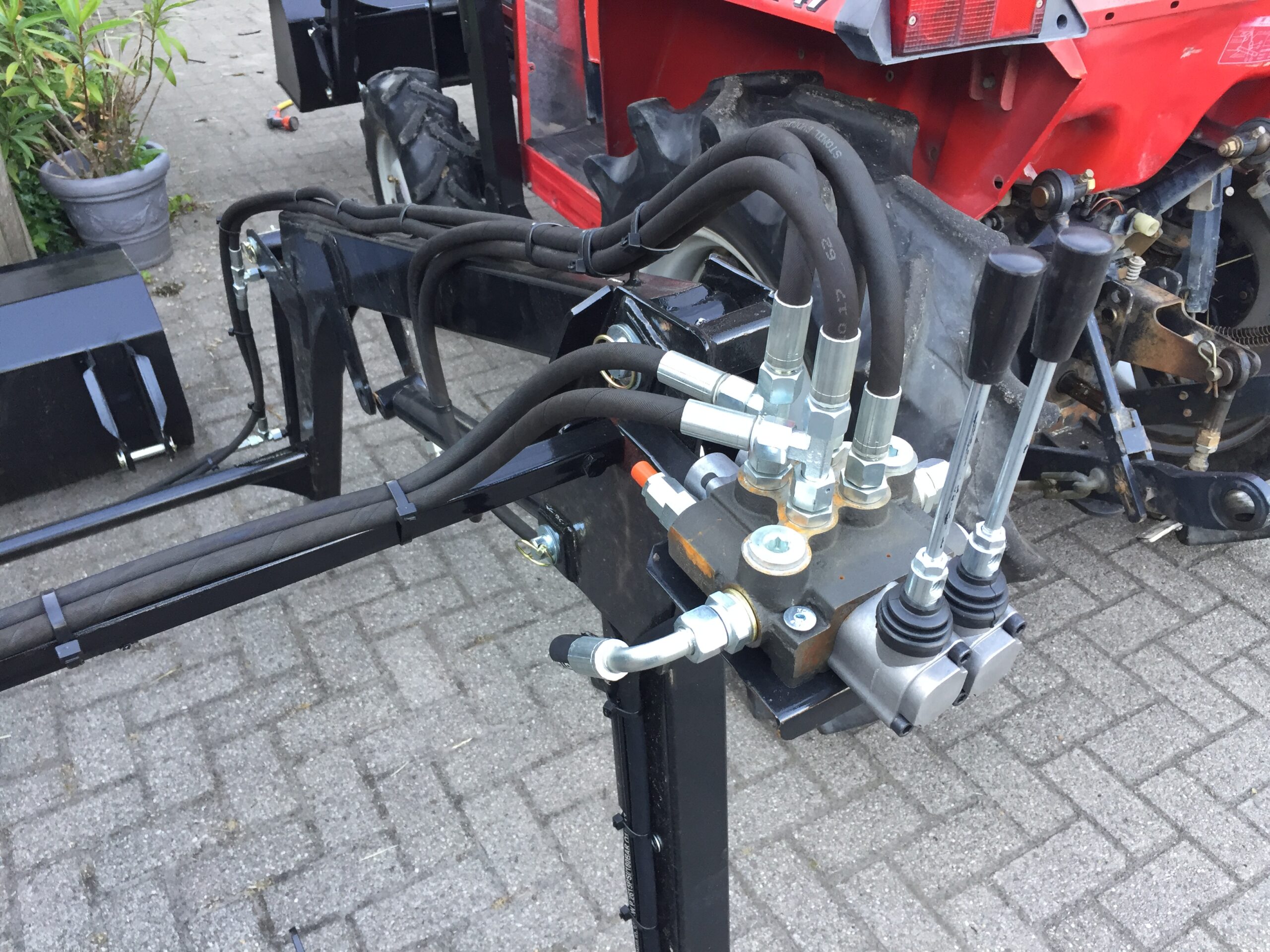

Mounting the control valve
-
The valve is mounted in an easily accessible location, usually at the top of the front loader frame.
-
Make sure the levers can move freely without touching the hood or seat.
-
A double-acting 2-section valve is standard: one section for lifting/lowering, the other for tipping the container.
8.
Top up oil and test system
-
Fill the hydraulic tank to the correct level with oil of the correct specification – https://shop4trac.com/en/oil/transmission-gearbox/transmission-oil-stou-hydraulic-gearbox-oil-gl-4/
-
Start the tractor and slowly move the valve levers.
-
Check for:
-
Leaks at the couplings.
-
Noise from the pump (may indicate air in the system).
-
Smooth and equal movement of both arms.
- If the engine seems to be struggling, the system is either dirty or the hoses are connected incorrectly.
-
-
After first use, top up with oil again — filters and hoses can initially ‘swallow’ oil.
9.
Safety check and finishing
-
Retighten the mounting bolts after the first test.
-
Grease pivot points on loader arms and cylinders.
-
If necessary, mount a support leg if you want to be able to easily remove the front loader.
-
Make sure your load does not block your view or become unstable on slopes.
🔚 Summary
With these steps you can build a front loader on your Iseki Landleader with robust mounting on the chassis and a reliable hydraulic connection. The structure with 4 bolts per side and 2 reinforcement arms to the front is strong, proven and suitable for medium-heavy work.
💡 Practical tips
-
Ensure symmetry : Measure accurately left and right to ensure the front loader is exactly perpendicular to the tractor.
-
Do not rest the front loader on the crankcase ; the weight must be distributed via the chassis.
-
Connecting the hydraulics : Route the pressure and return lines via the side under the chassis to the valve block.
