Clutch Kit Iseki TX series | TX1210 – TX2160F | Bolens G152 – G154 | G172 – G174

Clutch Kit Incl. Pilot Bearing – Complete and Robustly Designed

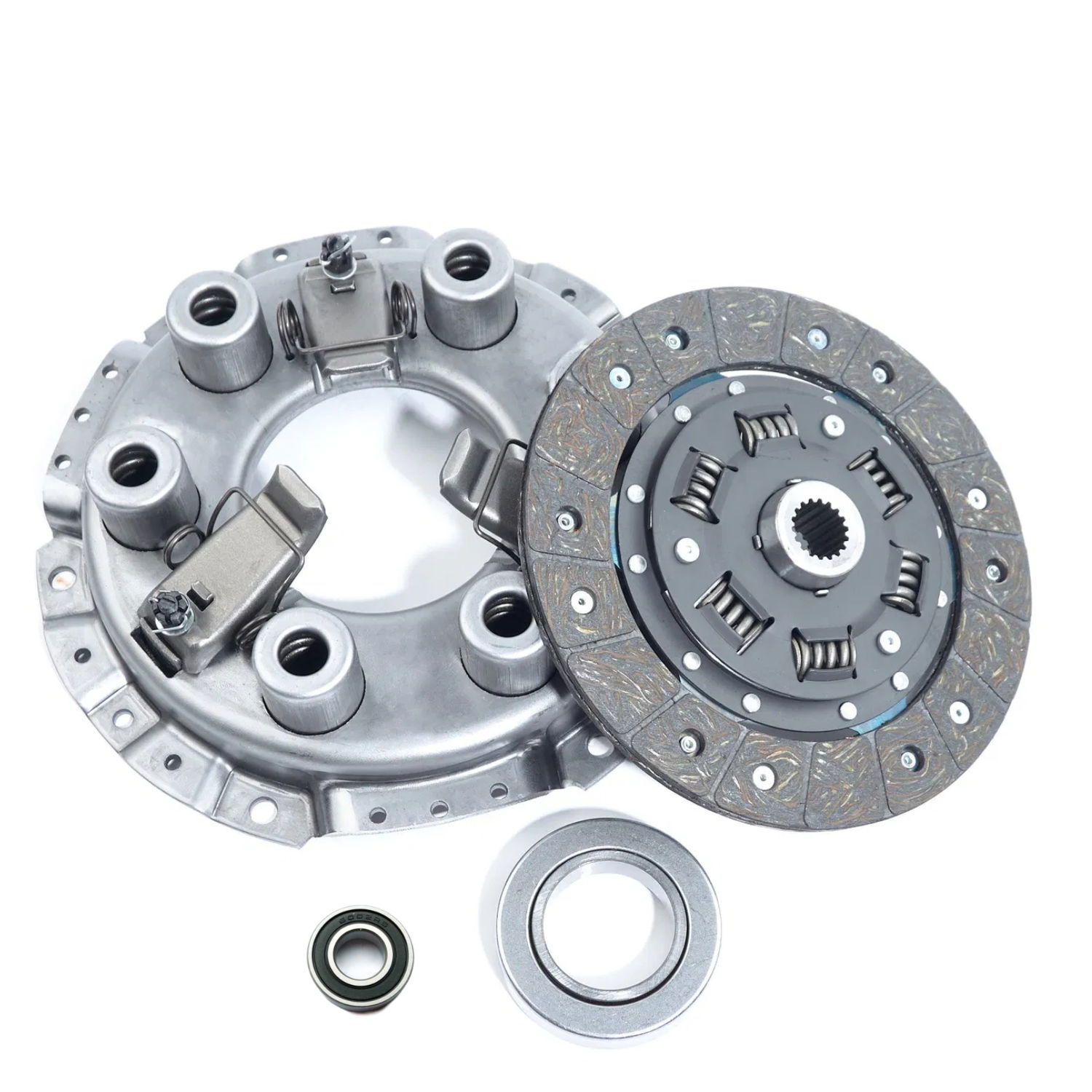

This high-quality clutch set is designed for precise, durable, and powerful transmission of engine power. The set consists of a sturdy 3-finger pressure plate, a wear-resistant clutch disc, a release bearing, and a pilot bearing – perfectly matched for reliable clutch operation.

✅ Reinforced pressure plate with large contact surfaces

✅ Clutch disc with 18-spline connection

✅ Includes release bearing and pilot bearing for complete overhaul

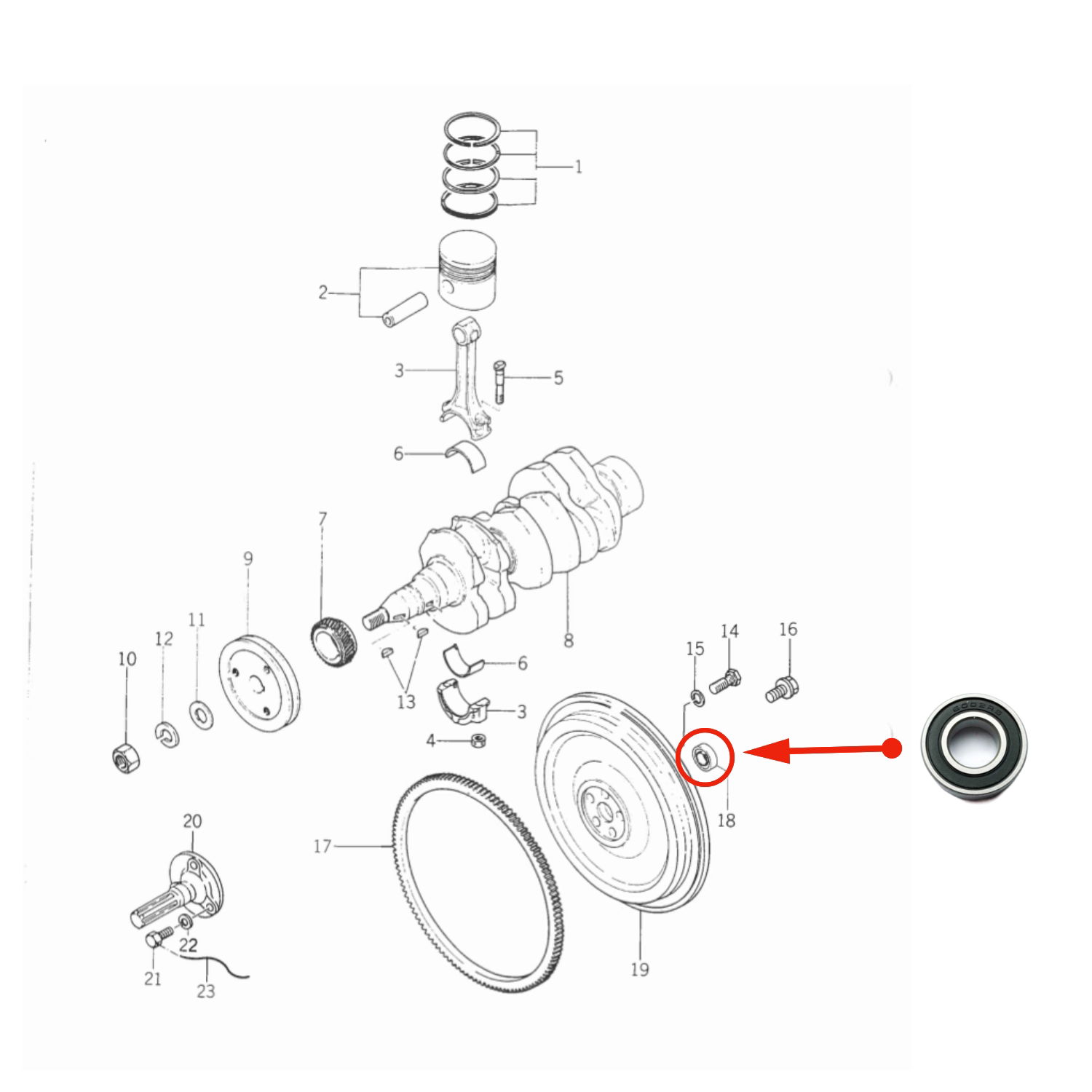

✅ The pilot bearing is often forgotten during a clutch overhaul, but it is highly recommended to always replace it when installing a new clutch.

✅ Due to age, it’s important to replace everything, and this complete set takes care of that!

Contents and Technical Specifications

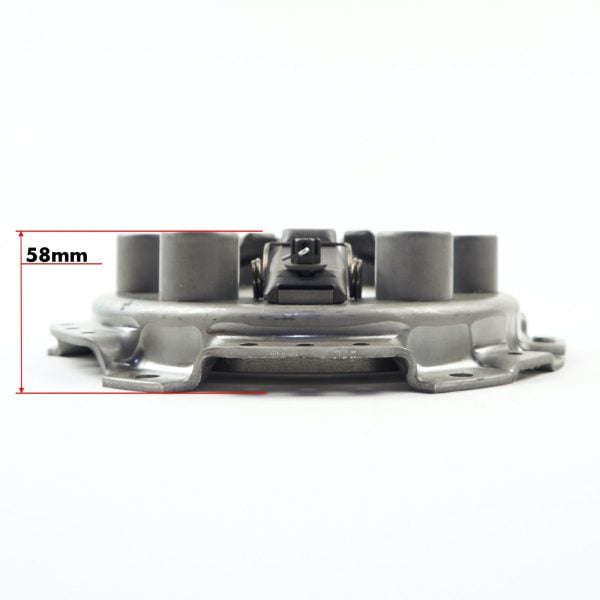

Pressure plate

• Total outer diameter: 240 mm
• Inner diameter (max): 185 mm
• Inner diameter (min): 125 mm
• Height: 57 mm
• Type: 3-finger design

Clutch Plate

• Diameter: 184 mm (7.24″)
• Shaft size: 18 splines
• Type: Organic friction material
• Core: Spring-loaded

Release bearing

• Outer dimension: 70 mm
• Inner dimension: 40 mm
• Thickness: 18 mm

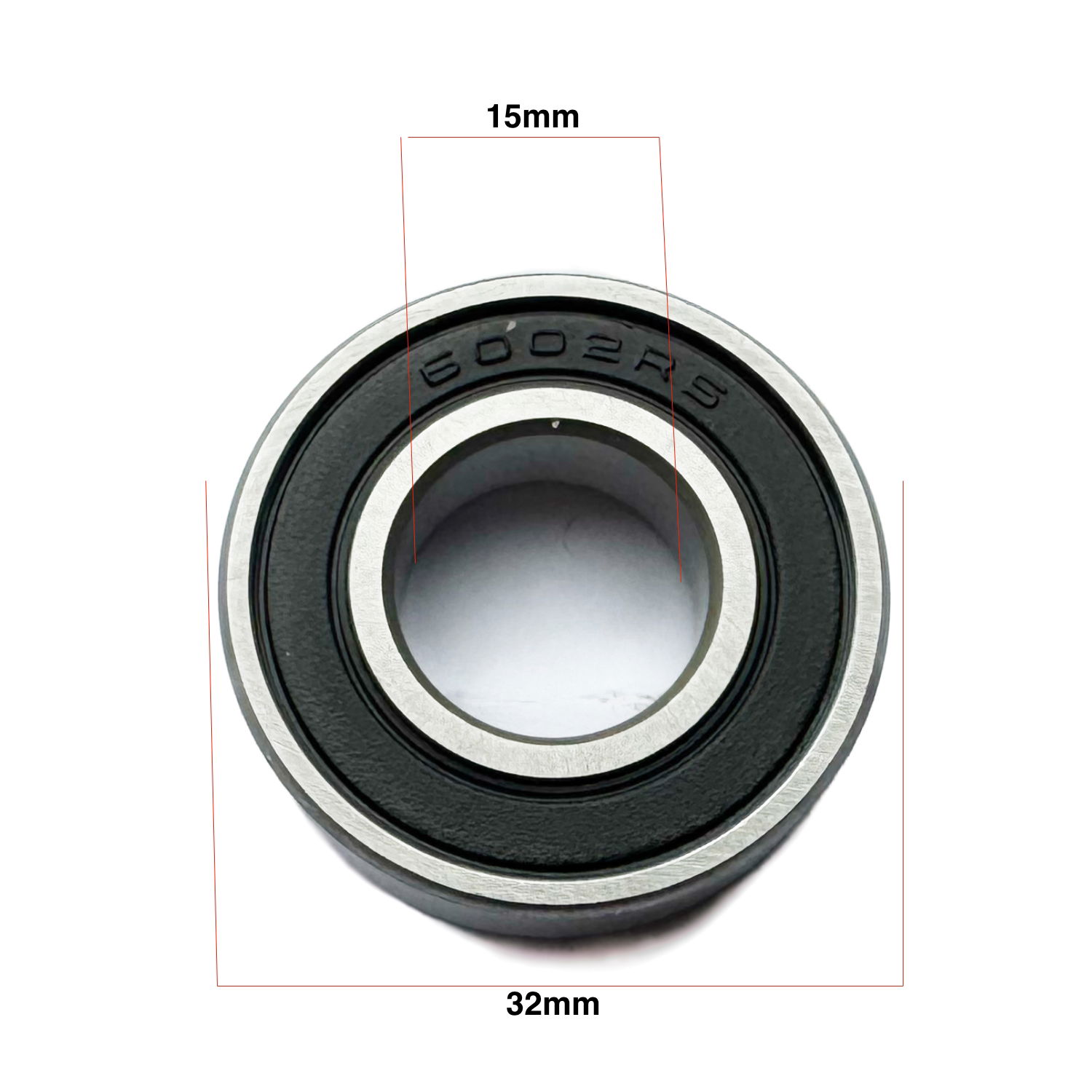

Pilot bearing guide bearing

• Inner Diameter: 0.5906″ (15.001 mm)
• Outer Diameter: 1.2598″ (31.998 mm)
• Width: 0.354″ (8.991 mm)
• Alternative size notation: 15x32x9 mm

Iseki

• TX1000, TX1210, TX1300, TX1410, TX145, TX1500, TX1510, TX155, TX2140, TX2160
• TX1000F, TX1210F, TX1300F, TX1410F, TX145F, TX1500F, TX1510F, TX155F, TX2140F, TX2160F

Bolens:

• G152, G154, G172, G174
• H1704

White Field Boss

• FB16

OEM for reference

• 1427-120-220-01, 1427-120-220-01
• 1416-120-0040-0, 141612000400
• 1427-120-2002-0
• 5663-002-6130-0, MD002-613
• 566300261300, MD002613
• 5663-002-613-00, 5663-002-6130-0, 566300261300
• MM002613
• 5663-335-444-00, 5663-335-4440-0, 566333544400
