Clutch Kit Kubota L | L1 | GL | GT | X series | Hinomoto
US$184.13US$282.83 incl. VAT (-35%)
✔ Ordered before 4 p.m. (CEST) = delivered by Monday
✔ Warranty up to 2 years
✔ Exchange possible within 14 days
✔ Customer rating 9.1/10
Clutch Kit – High-quality and Perfect Fit
This complete clutch set is designed for reliable performance under all conditions. Thanks to the robust pressure plate and durable clutch plate with woven friction material, this set offers smooth and powerful power transmission. Suitable for various tractors and agricultural machines with 10-spline connection.
✅ Complete set with pressure plate, clutch disc, release bearing and pilot bearing
✅ Wear-resistant, woven friction layer
✅ A complete clutch set is especially important for older tractors!
✅ Ready for Direct Installation
Technical Specifications
Clutch Plate
- Diameter: 8-1/2” (216 mm)
- Hub Diameter: 1” (25.4 mm)
- Number of splines: 10
- Core: Solid
- Friction type: Woven
Pressure plate
- 8.50″, 210-215mm.

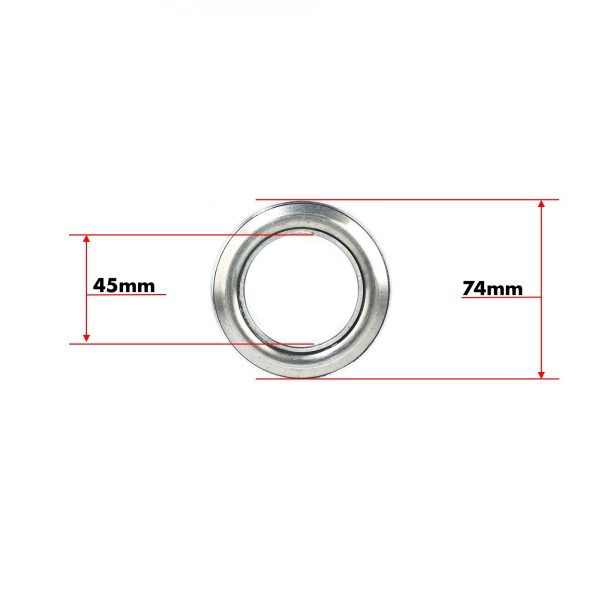

Release bearing
- Dimensions – measurements – 74x45x18mm – I.D.: 2.166″ – O.D.: 3.310″ – Width: .630″
- Weight : 0.35 kg
Pilot bearing
- Inner Diameter (Bore): 0.5906” (15.001 mm)
- Outer Diameter: 1.2598” (31.998 mm)
- Width: 0.354” (8.991 mm)
- 15x32x9
Kioti
- LK2554
Kubota
- L1801, L1802, L2000, L2002, L2050, L2201, L2202, L2250, L2255, L2350DT (< serialnumber 54672), L2350F (<serial number 11295)
- L2402, L2500, L2550, L2600F, L2601DT, L2602, L2650, L2850, L3000, L3001
- L1-18, L1-20, L1-20, L1-22, L1-24, L1-195, L1-215, L1-225, L1-235, L1245, L1-255
- GL19, GL21, GL23, GL25, GL26, GL27, GL29, GL32
- GL201, GL201 MFWD, GL220, GL220 MFWD, GL221, GL240, GL241, GL260, GL261, GL281
- GT-3, GT-5, GT-8, X-20, X-24
- B2150HST , B9200HST-DB
- L225, L235, L245, L260, L275, L285, L295
- L225DT, L235DT, L245DT, L260DT, L275DT, L285DT, L295DT
- L245F, L245H, L235, L275, L295, B9200HST.
Hinomoto
- NX21, NX23, NX25, NX27, NX29, NX32
- NX240, NX260
-
NX201, NX201 MFWD, NX220, NX220 MFWD, NX221, NX240, NX241, NX260, NX261, NX277, NX280, NX281
Zen-noh
- ZL1801, ZL2200, ZL2201, ZL3001
- ZL1802, ZL2002, ZL2202, ZL2402
This set includes one:
- Pressure plate
- Clutch plate(215mm/10spline) – 8.50″, 10 splines, 25mm
- Release bearing 74x45x18
OEM for reference
- 66419-13400 35300-1430-0, 38240-1430-0
- 66419-13400 35300-1430-0, 38240-1430-0, 34220-1430-0 32240-1430-0, 37300-1450-2, 37300-1450-0, 34220-1450-3
- 34220-1450-2, 34220-1450-0, 32350-14503, 32350-14500, 08490-00001, 08121-06002
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 120 × 120 × 120 mm |
| Brand |
